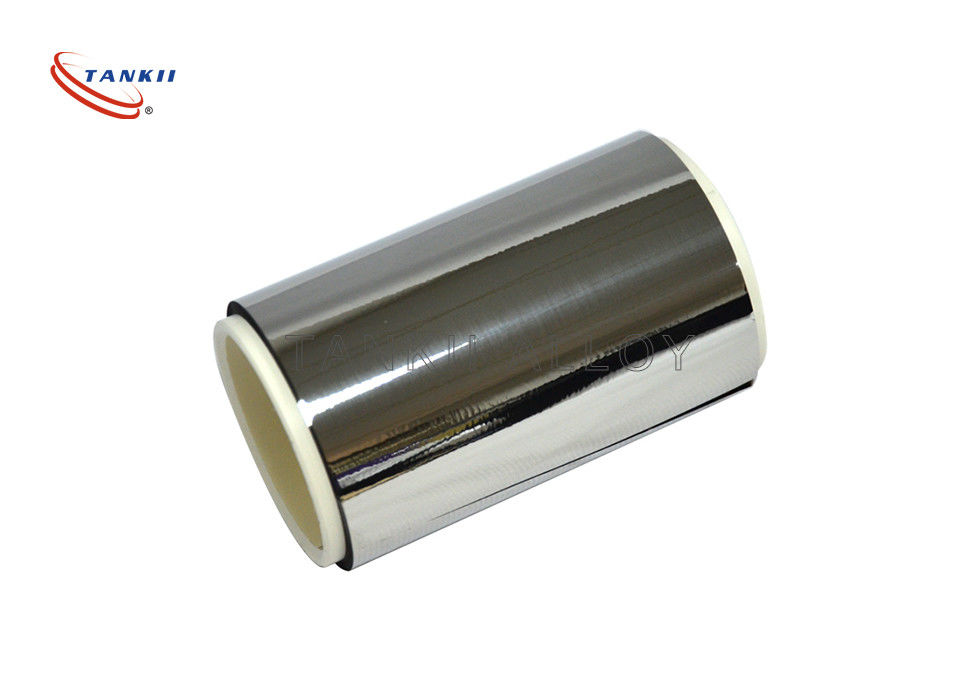

0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment

0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment

    • 0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
    • 0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
    • 0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
    • 0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
  • 0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2015
    Model Number: CuNi44

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: To negotiate
    Packaging Details: Spool, Coil, Carton, Wooden case with Plastic Film According to Client's Requirements
    Delivery Time: 7-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 20+TON+MONTH
    Contact Now
    Detailed Product Description
    Type: Resistance Alloy Color: Silver
    Other Alloy: CuNi23, CuNi40, CuNi30.... Treatment: Annealing
    Thickness: Required Packing: 12 Spools/ Carton

    0.05mm Constantan 6J40 Good Resistance Foil for Precision Equipment



    Introduction :



    CuNi series:

    Type Electrical
    Resistivity
    (20℃Ωmm²/m)
    Temperature
    Coefficient of Resistance(10-6/℃)
    Density(g/m³) Max.
    Temperature(℃)
    Metlting
    Point(℃)
    CuNi1 0.03 <1000 8.9 / 1085
    CuNi2 0.05 <1200 8.9 200 1090
    CuNi6 0.10 <600 8.9 220 1095
    CuNi8 0.12 <570 8.9 250 1097
    CuNi10 0.15 <500 8.9 250 1100
    CuNi14 0.20 <380 8.9 300 1115
    CuNi19 0.25 <250 8.9 300 1135
    CuNi23 0.30 <160 8.9 300 1150
    CuNi30 0.35 <100 8.9 350 1170
    CuNi34 0.40 -0 8.9 350 1180
    CuNi40 0.48 ±40 8.9 400 1280
    CuNi44 0.49 <-6 8.9 400 1280



    A copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity.

    Constantan is a copper-nickel alloy usually consisting of 55% Copper and 45% Nickel. Its main feature is its resistance which is constant over a wide range of temperatures. Other alloys with similarly low temperature coefficients are known, such as Manganin (Cu86Mn12Ni2).

    Of all modern strain gauge alloys, Constantan is the oldest, and still the most widely used. This situation reflects the fact that constantan has the best overall combination of properties needed for many strain gauge applications. This alloy has, for example, an adequately high strain sensitivity, or gauge factor, which is relatively insensitive to strain level and temperature. Its resistivity is high enough to achieve suitable resistance values in even very small grids, and its temperature coefficient of resistance is not excessive. In addition, constantan is characterized by good fatigue life and relatively high elongation capability. It must be noted, however, that constantan tends to exhibit a continuous drift at temperatures above 65 °C (150 °F); and this characteristic should be taken into account when zero stability of the strain gauge is critical over a period of hours or days.

    We are capable of adding a variety of features to metallic materials

    (resin coating, plating, bonding different kinds of metal, multigage skiving, etc.).


    We provide customed solutions to your problems with our unique

    technologies and well versed knowledge of materials acquired through

    our experience of manufacturing 50,000 items.








    0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment0.05mm Constantan 6J40 Good Resistance Foil For Precision Equipment
