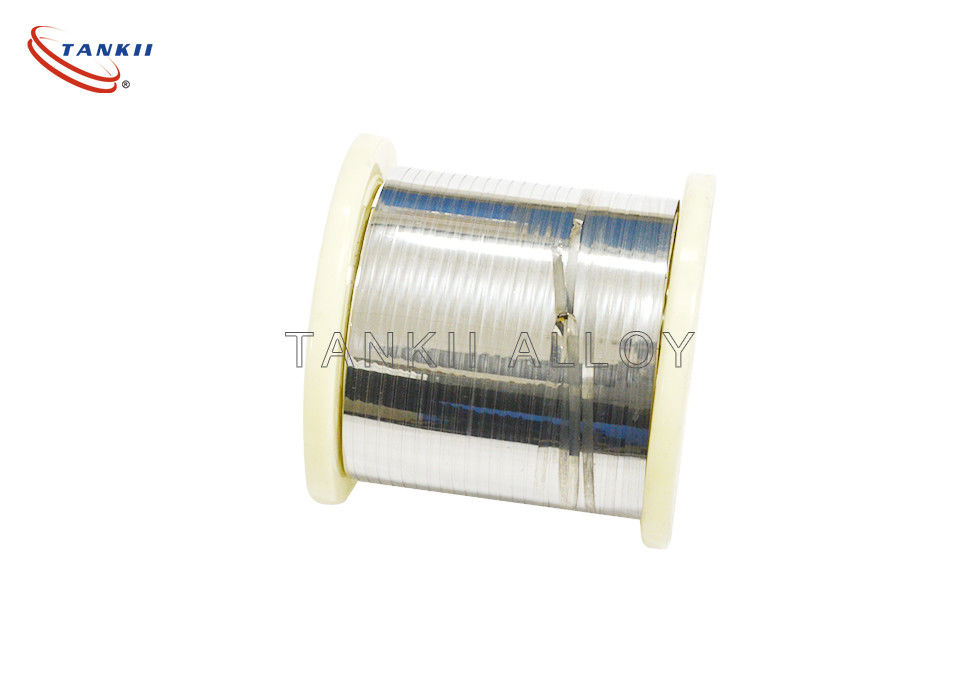

0Cr21Al6Nb 0.18*4 High Temperature Fecral Alloy Bright Resistance Flat Ribbon

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: 0Cr21Al6Nb

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: To negotiate

Packaging Details: Spool, Coil, Carton, Wooden case with good quality plastic film according to custom's requirements

Delivery Time: 7-12 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

high temperature wire

,

electrical heating wire

Treatment:
Hydrogen Annealing
Density:
7.19g/cm3
Condition:
Soft
Surface:
Smooth
Sample:
Available
Test:
Certificated
Treatment:
Hydrogen Annealing
Density:
7.19g/cm3
Condition:
Soft
Surface:
Smooth
Sample:
Available
Test:
Certificated
Description
0Cr21Al6Nb 0.18*4 High Temperature Fecral Alloy Bright Resistance Flat Ribbon





Cr21Al6Nb 0.18*4 High Temperature Fecral Alloy Resistance Flat Ribbon


1)FeCrAl alloy series: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2, and etc





Alloy Type Diameter Resistivity Tensile Elongation
(%)
Bending Max.
Continuous
Working
Life
(mm) (μΩm)(20°C) Strength Times Service (hours)
(N/mm²)   Temperature
(°C)
Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
>3.0 1.14±0.05 850-950 >20 >9 1200 >20000
Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000
1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5 1400 >8000





Fe-Cr-Al alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.

2) High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.



3)Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm


4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.


5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
