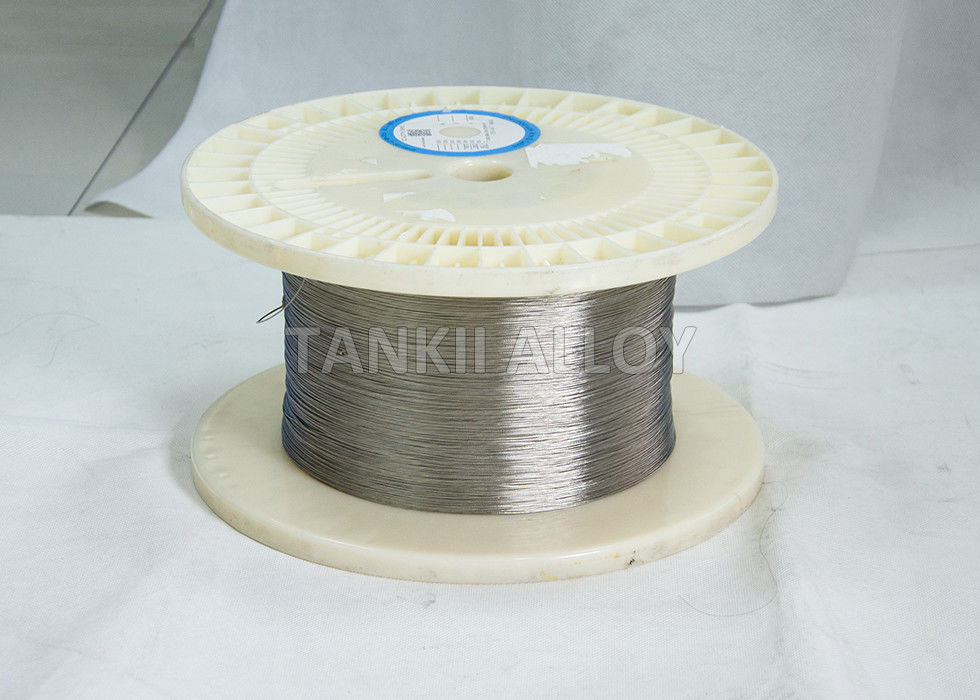

IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors

IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors

    • IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors
    • IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors
    • IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors
    • IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors
  • IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: K

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Standard: ANSI, IEC584 Application: Thermocouple,temperature Measurement
    Tolerance: IEC Class 1 Diameter: Customized
    Delivery Time: 5~10 Days After Getting The Payment Item: IEC 60584 Class 1 K Type E Type N Type Thermocouple Bare Wire Single / Stranded Wire Used For Temperature Sensors
    Conductor Type: Single /stranded Shape: Wire On Bobbin

    IEC 60584 Class 1 K Type E Type N Type Thermocouple Bare Wire Single / Stranded Wire Used For Temperature Sensors



    Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



    Special application of Tankii thermocouple wire:

    1. Mineral Insulated Thermocouples
    2. Plastics/Packaging Industry T/C's & RTD's
    3. Industrial Thermocouples
    4. Food, Dairy & Pharmaceutical Probes



    IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors



    IEC 60584 Class 1 K Type E Type N Type Thermocouple Bare Wire Single / Stranded Wire Used For Temperature Sensors



    Shanghai Tankii Thermocouple wire's Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

    Tankii products conform to the standards of IEC584 -1 and 2.


    Tankii Thermocouple strips, thermocouple connectors are available.
    Tankii thermocouple grade extension wire can be supplied as per your request.
    Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.



    IEC 60584 Class 1 K Type E Type N Type Thermocouple Bare Wire Single / Stranded Wire Used For Temperature Sensors

    More parameters of Tankii thermocouple wires:

    Tankii Thermocouple Type and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B 600~1700


    PtRh13-Pt

    R 0~1600


    PtRh10-Pt

    S 0~1600


    NiCr-NiSi

    K -200~1300


    NiCr-CuNi (constantan)

    E -200~900


    Fe-CuNi (constantan)

    J -40~750


    Cu-CuNi (constantan)

    T -200~350


    NiCrSi-NiSi

    N -200~1300

    IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors

    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B 600~1700 ±0.25% t
    600~800 ±4
    800~1700 ±0.5%t
    Type R(S) 0~1100 ±1
    1100~1600 ±[1+(t-1100) ×0.3%]
    0~600 ±1.5
    600~1600 ±0.25% t
    Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type E -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type J -40~750 ±1.5℃ or ±0.4%t
    -40~750 ±2.5℃ or ±0.75%t
    Type T -40~350 ±0.5℃ or ±0.4%t
    -40~350 ±1.0℃ or ±0.75%t
    -200~40 ±1.0℃ or ±1.5%t


    Product details:

    IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors

     Delivery and Packing of thermocouple wire:

    1. Packaging Details : DIN spools with plastic film wrapped and carton package.

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty


    IEC 60584 Class 1 K Type E Type N Type Thermocouple Bare Wire Single / Stranded Wire Used For Temperature Sensors
    IEC 60584 Class 1 K E N Type Thermocouple Bare Wire Single / Stranded Wire For Temperature Sensors

    IEC 60584 Class 1 K Type E Type N Type Thermocouple Bare Wire Single / Stranded Wire Used For Temperature Sensors

    Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple  flat wire, thermocouple strip.
