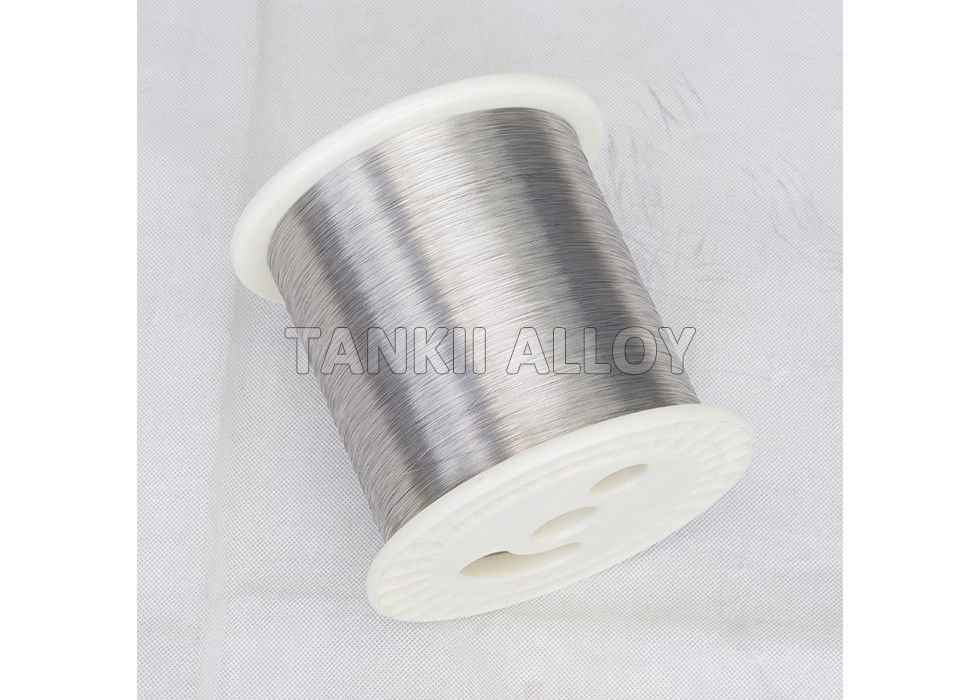

E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable

E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable

    • E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable
    • E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable
    • E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable
    • E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable
  • E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: E

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Standard: ANSI, IEC584 Application: Thermocouple,temperature Measurement
    Tolerance: IEC Class 1 Diameter: Customized
    Delivery Time: 5~10 Days After Getting The Payment Item: E Type Thermocouple Wire ENEP 20AWG 25AWG Used For MI Cable /Thermocouple Sensor
    Conductor Type: Single /stranded Shape: Wire On Bobbin

    E Type Thermocouple Wire ENEP 20AWG 25AWG Used for MI Cable /Thermocouple Sensor





    The Type E thermocouple is composed of a nickel-10% chromium (+) versus a nickel-45% copper (-) wire. This Type of thermocouple can be used in oxidizing or inert atmospheres with a service temperature range of -200°C to 900°C (330°F to 1600°F). The Type E thermocouple can be used successfully in subzero applications due to high corrosion resistance to high moisture environments. Out of all of the different types of thermocouples, The Type E has the highest EMF output per degree.





    Tankii Alloy has a wide range of the most commonly used thermocouple alloys, with diameters ranging from Ø 0.1 up to Ø 12 mm in stock. Tankii alloy is able to supply thermocouple wire type E, J, K, N and T, but also type C and D. Furthermore, we can supply noble metals like thermocouple wire type S, R and B.



    Application Range of Tankii thermocouple wire:

    1. Aerospace and Composites
    2. Aluminum industry
    3. Food and Pharmaceutical
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing





    E Type Thermocouple Wire ENEP 20AWG 25AWG Used for MI Cable /Thermocouple Sensor



    Shanghai Tankii Thermocouple wire's Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

    Tankii products conform to the standards of IEC584 -1and IEC-2.


    Tankii Thermocouple strips, thermocouple connectors are available.
    Tankii thermocouple grade extension wire can be supplied as per your request.
    Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.

    E Type Thermocouple Wire ENEP 20AWG 25AWG Used for MI Cable /Thermocouple Sensor

    More parameters of Tankii thermocouple wires:

    Tankii Thermocouple Type and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B 600~1700


    PtRh13-Pt

    R 0~1600


    PtRh10-Pt

    S 0~1600


    NiCr-NiSi

    K -200~1300


    NiCr-CuNi (constantan)

    E -200~900


    Fe-CuNi (constantan)

    J -40~750


    Cu-CuNi (constantan)

    T -200~350


    NiCrSi-NiSi

    N -200~1300


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B 600~1700 ±0.25% t
    600~800 ±4
    800~1700 ±0.5%t
    Type R(S) 0~1100 ±1
    1100~1600 ±[1+(t-1100) ×0.3%]
    0~600 ±1.5
    600~1600 ±0.25% t
    Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type E -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type J -40~750 ±1.5℃ or ±0.4%t
    -40~750 ±2.5℃ or ±0.75%t
    Type T -40~350 ±0.5℃ or ±0.4%t
    -40~350 ±1.0℃ or ±0.75%t
    -200~40 ±1.0℃ or ±1.5%t


    Product details:




     Delivery and Packing of thermocouple wire:

    1. Packaging Details : DIN spools with plastic film wrapped and carton package.

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty
    E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable

    Tankii Brand E Type Thermocouple Wires With Nichrome And Constantan Wire Used For Thermocouple Sensor
    E Type Thermocouple Bare Wire ENEP 20AWG 25AWG Used For MI Cable

    E Type Thermocouple Wire ENEP 20AWG 25AWG Used for MI Cable /Thermocouple Sensor


    Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple  flat wire, thermocouple strip.
