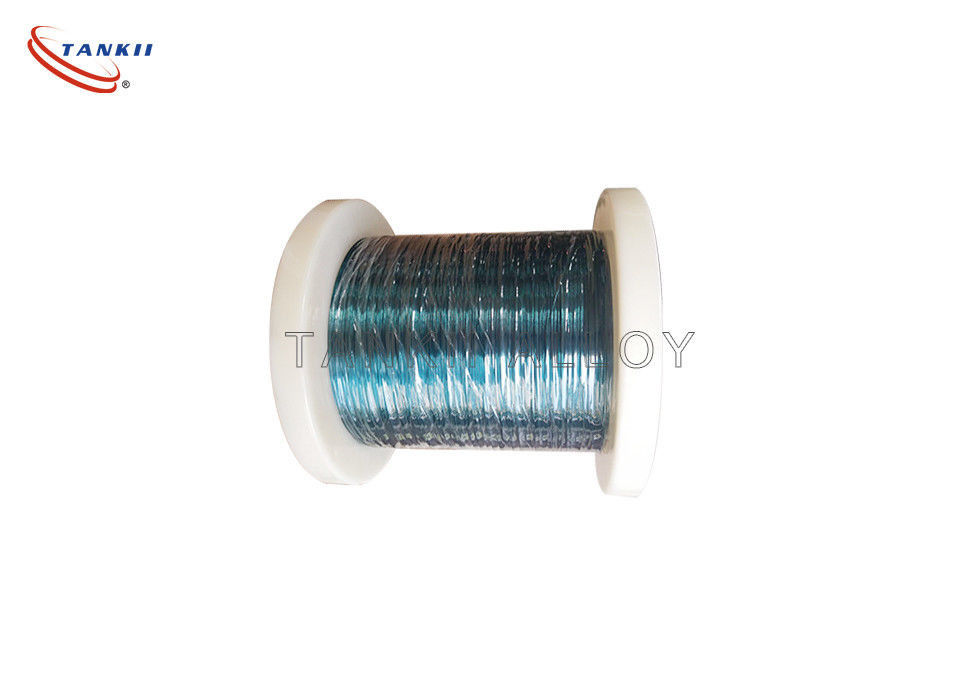

0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making

0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making

    • 0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making
    • 0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making
    • 0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making
    • 0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making
  • 0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making

    Product Details:

    Place of Origin: Shanghai
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: C1100

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: To negotiate
    Packaging Details: Spool, Carton, plywood case with plastic film as your requirements
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100+TON+MONTH
    Contact Now
    Detailed Product Description
    Size: Required Conductor: Copper Alloy
    Color: Different Color Insulation: Silver, Tin, Enamel
    Application: Jewelry, Decoration



    0.2mm Enameled/ Tinned/ Silver Plated Copper Wire for DIY Jewelry Making



    Product Description


    Silver plated copper wire is composed of a copper core covered by a concentric silver plating. This material combines the advantages of copper, such as the conductivity, with the bright and shiny surface of silver. In addition, the silver coating provides high corrosion resistance. All these advantages make it the favorite choice for high frequency wire, as well as, colored textile wire. Silver plated copper wire is available with different plating thicknesses such as 5, 10, 20, 50, 100 and 200 g silver / kg of wire. Other platings are available upon request. Silver plated wire is available in diameters from 0.020mm to 0.500mm (AWG 52 - 24) with all insulation and self-bonding enamels.



    The characteristics of
    · high conductivity
    · increased heat resistance
    · the surface is bright and shiny
    · high frequency characteristics
    High temperature resistant,
    · corrosion resistance
    application
    · colored wire
    Textile line,
    · high-frequency applications
    · micro cable
    · aerospace cables

    Applications
    * Widely used in lighting, household appliances, , lamps.
    * electric appliances, instrumentation, motor wiring and electronics.
    * gas appliances and other high-temperature environment.



    Detailed Material Properties



    Material Composition

    Density

    g/cm3

    Resistivity

    μΩ. cm

    Hardness

    HV kg/mm3

    Ag more than99.95 more than10.49 lessthan1.6 30--70



    Mechanical Property   Cu CuSn6
    Tensile Strength [N/mm²] 220-300 470-530
    Elongation 1% [N/mm²] 120-200 380-460
    Resistance(IACS) [%] 101 13
    Conductivity [S*m/mm²] 58.5 7.5
    Resistivity [Ohm*mm²/m] 0.0171 0.1333
    Temperature Coefficient of Resistance [1E-6/K] 3900-4300 600-700
    Weldability [-] Good Good



    0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making0.2mm Enameled / Tinned / Silver Plated Copper Wire For DIY Jewelry Making
