Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: C1100
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: To negotiate
Packaging Details: Spool, Carton, plywood case with plastic film as your requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100+TON+MONTH
Wire Dia: |
Required |
Feature: |
High Quality |
Material: |
Copper Alloy |
Color: |
Silver White |
Wire Dia: |
Required |
Feature: |
High Quality |
Material: |
Copper Alloy |
Color: |
Silver White |

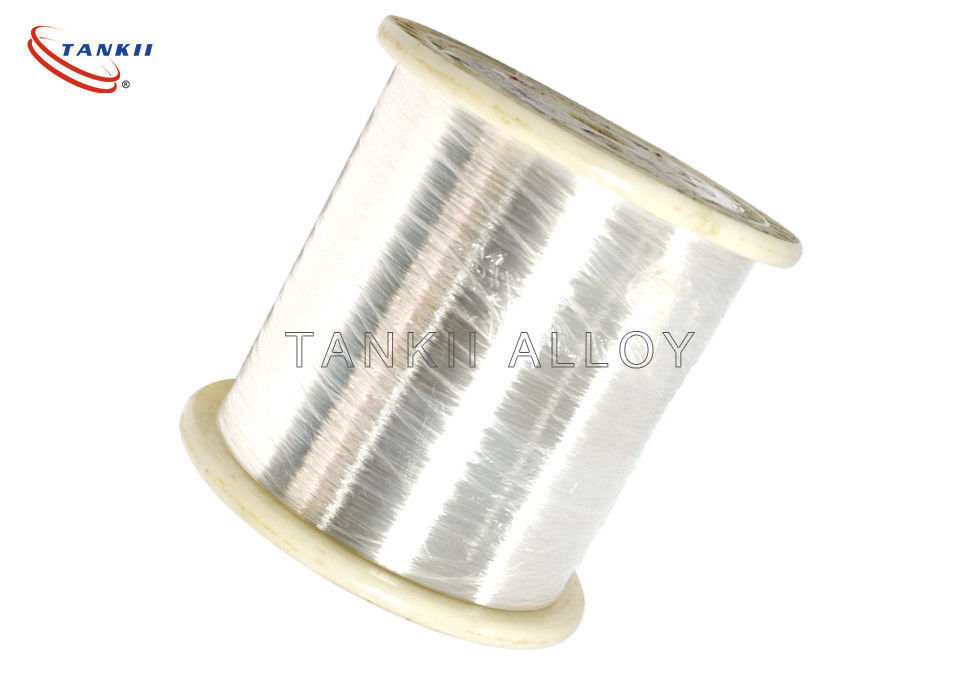

0.08mm Super Fine Silver Plated Copper Wire for Inner Cable Conductor
Silver plated copper wire is composed of a copper core covered by a concentric silver plating. This material combines the advantages of copper, such as the conductivity, with the bright and shiny surface of silver. In addition, the silver coating provides high corrosion resistance. All these advantages make it the favorite choice for high frequency wire, as well as, colored textile wire. Silver plated copper wire is available with different plating thicknesses such as 5, 10, 20, 50, 100 and 200 g silver / kg of wire. Other platings are available upon request. Silver plated wire is available in diameters from 0.020mm to 0.500mm (AWG 52 - 24) with all insulation and self-bonding enamels.
Detailed Material Properties
| Material | Composition |
Density g/cm3 |
Resistivity μΩ. cm |
Hardness HV kg/mm3 |
| Ag | more than99.95 | more than10.49 | lessthan1.6 | 30--70 |
| Mechanical Property | Cu | CuSn6 | |
| Tensile Strength | [N/mm²] | 220-300 | 470-530 |
| Elongation 1% | [N/mm²] | 120-200 | 380-460 |
| Resistance(IACS) | [%] | 101 | 13 |
| Conductivity | [S*m/mm²] | 58.5 | 7.5 |
| Resistivity | [Ohm*mm²/m] | 0.0171 | 0.1333 |
| Temperature Coefficient of Resistance | [1E-6/K] | 3900-4300 | 600-700 |
| Weldability | [-] | Good | Good |
Applications
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
