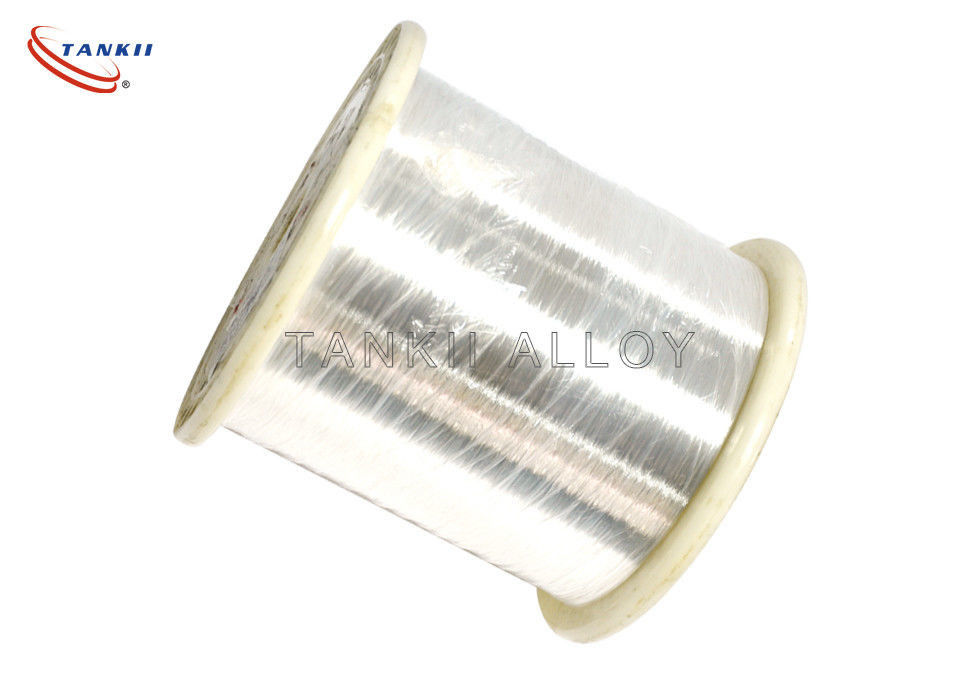

0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments

0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments

    • 0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments
    • 0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments
    • 0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments
    • 0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments
  • 0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments

    Product Details:

    Place of Origin: Shanghai
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: C1100

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: To negotiate
    Packaging Details: Spool, Carton, plywood case with plastic film as your requirements
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100+TON+MONTH
    Contact Now
    Detailed Product Description
    Conductor: Copper Wire Conductor Type: Solid
    Wire Dia: Required Insulation: Silver, Tin, Enamel
    Feature: Uniforme Spool Weight: Required Or According To Wire Size

    Good Quality 0.1mm Silver Insulated Copper Magnet Wire for Precision Instruments​





    Detailed Material Properties



    Mechanical Property   Cu CuSn6
    Tensile Strength [N/mm²] 220-300 470-530
    Elongation 1% [N/mm²] 120-200 380-460
    Resistance(IACS) [%] 101 13
    Conductivity [S*m/mm²] 58.5 7.5
    Resistivity [Ohm*mm²/m] 0.0171 0.1333
    Temperature Coefficient of Resistance [1E-6/K] 3900-4300 600-700
    Weldability [-] Good Good
    Material Composition

    Density

    g/cm3

    Resistivity

    μΩ. cm

    Hardness

    HV kg/mm3

    Ag more than99.95 more than10.49 lessthan1.6 30--70





    Product Description


    Silver plated copper wire is composed of a copper core covered by a concentric silver plating. This material combines the advantages of copper, such as the conductivity, with the bright and shiny surface of silver. In addition, the silver coating provides high corrosion resistance. All these advantages make it the favorite choice for high frequency wire, as well as, colored textile wire. Silver plated copper wire is available with different plating thicknesses such as 5, 10, 20, 50, 100 and 200 g silver / kg of wire. Other platings are available upon request. Silver plated wire is available in diameters from 0.020mm to 0.500mm (AWG 52 - 24) with all insulation and self-bonding enamels.



    Copper is the second most conductive metal in the world behind silver, but due to its abundance and how easy it is to work with, copper is considered the standard in electrical work. Copper is also the standard by which all other conductive metals are judged. In 1913, the International Electro-Technical Commission set its conductivity at 100 percent of the International Annealed Copper Standard (IACS). The metal resists galvanic corrosion – the gradual deterioration of one metal in electrical contact with another metal – and is durable enough that it avoids stretching, nicks and breaks. However, copper is not invincible.



    Applications
    * Widely used in lighting, household appliances, , lamps.
    * electric appliances, instrumentation, motor wiring and electronics.
    * gas appliances and other high-temperature environment.




    0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments0.1mm Silver Insulated Copper Magnet Wire For Precision Instruments
