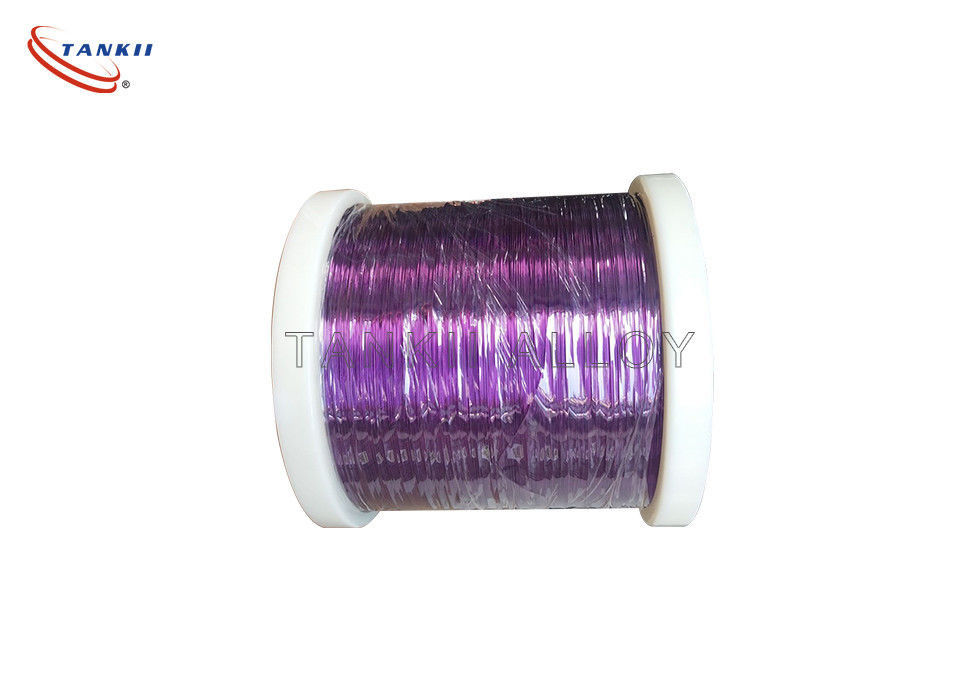

0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin

0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin

    • 0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin
    • 0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin
    • 0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin
    • 0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin
  • 0.2mm 130 Class Enameled Wire Colored Round Copper Alloy Manganin

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: 6J40

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg
    Price: To negotiate
    Packaging Details: Spool, Carton, Plywood case as clients’ requirements
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Material Alloy: Copper Based Alloy Type: Round Insulated Wire
    Insulation Material: Polyesterimide, Polyester Temperature: 130, 155, 180, 200, 220...
    Sample: Available Spool: Standard


    130 Class Colored Round Copper Alloy Manganin Enameled Wire

    1. Material General Description

    Copper nickel alloy, which has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. It's similar as s type cupronickel.The more composition of Nickel,the more silver white the surface to be.

    3.Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy


    PropertiesGrade

    CuNi1

    CuNi2

    CuNi6

    CuNi8

    CuMn3

    CuNi10

    Main Chemical Composition

    Ni

    1

    2

    6

    8

    _

    10

    Mn

    _

    _

    _

    _

    3

    _

    Cu

    Bal

    Bal

    Bal

    Bal

    Bal

    Bal

    Max Continuous Service Temperature(oC)

    200

    200

    200

    250

    200

    250

    Resisivity at 20oC (Ωmm2/m)

    0.03

    0.05

    0.10

    0.12

    0.12

    0.15

    Density(g/cm3)

    8.9

    8.9

    8.9

    8.9

    8.8

    8.9

    Thermal Conductivity(α×10-6/oC)

    <100

    <120

    <60

    <57

    <38

    <50

    Tensile Strength(Mpa)

    ≥210

    ≥220

    ≥250

    ≥270

    ≥290

    ≥290

    EMF vs Cu(μV/oC)(0~100oC)

    -8

    -12

    -12

    -22

    _

    -25

    Approximate Melting Point( oC)

    1085

    1090

    1095

    1097

    1050

    1100

    Micrographic Structure

    austenite

    austenite

    austenite

    austenite

    austenite

    austenite

    Magnetic Property

    non

    non

    non

    non

    non

    non



    PropertiesGrade

    CuNi14

    CuNi19

    CuNi23

    CuNi30

    CuNi34

    CuNi44

    Main Chemical Composition

    Ni

    14

    19

    23

    30

    34

    44

    Mn

    0.3

    0.5

    0.5

    1.0

    1.0

    1.0

    Cu

    Bal

    Bal

    Bal

    Bal

    Bal

    Bal

    Max Continuous Service Temperature(oC)

    300

    300

    300

    350

    350

    400

    Resisivity at 20oC (Ωmm2/m)

    0.20

    0.25

    0.30

    0.35

    0.40

    0.49

    Density(g/cm3)

    8.9

    8.9

    8.9

    8.9

    8.9

    8.9

    Thermal Conductivity(α×10-6/oC)

    <30

    <25

    <16

    <10

    <0

    <-6

    Tensile Strength(Mpa)

    ≥310

    ≥340

    ≥350

    ≥400

    ≥400

    ≥420

    EMF vs Cu(μV/oC)(0~100oC)

    -28

    -32

    -34

    -37

    -39

    -43

    Approximate Melting Point( oC)

    1115

    1135

    1150

    1170

    1180

    1280

    Micrographic Structure

    austenite

    austenite

    austenite

    austenite

    austenite

    austenite

    Magnetic Property

    non

    non

    non

    non

    non

    non



    2. Enamelled Wire Introduction and applications

    Although described as "enameled", enameled wire is not, in fact, coated with either a layer of enamel paint nor with vitreous enamel made of fused glass powder. Modern magnet wire typically uses one to four layers (in the case of quad-film type wire) of polymer film insulation, often of two different compositions, to provide a tough, continuous insulating layer. Magnet wire insulating films use (in order of increasing temperature range) polyvinyl formal (Formar), polyurethane, polyimide, polyamide, polyster, polyester-polyimide, polyamide-polyimide (or amide-imide), and polyimide. Polyimide insulated magnet wire is capable of operation at up to 250 °C. The insulation of thicker square or rectangular magnet wire is often augmented by wrapping it with a high-temperature polyimide or fiberglass tape, and completed windings are often vacuum impregnated with an insulating varnish to improve insulation strength and long-term reliability of the winding.
    Self-supporting coils are wound with wire coated with at least two layers, the outermost being a thermoplastic that bonds the turns together when heated.
    Other types of insulation such as fiberglass yarn with varnish, aramid paper, kraft paper, mica, and polyester film are also widely used across the world for various applications like transformers and reactors. In the audio sector, a wire of silver construction, and various other insulators, such as cotton (sometimes permeated with some kind of coagulating agent/thickener, such as beeswax) and polytetrafluoroethylene (PTFE) can be found. Older insulation materials included cotton, paper, or silk, but these are only useful for low-temperature applications (up to 105°C).
    For ease of manufacturing, some low-temperature-grade magnet wire has insulation that can be removed by the heat of soldering. This means that electrical connections at the ends can be made without stripping off the insulation first.
