|Place of Origin:||Shanghai, China|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Spool, coil, carton, plywood case with plastic film according to client's requirements|
|Delivery Time:||7-12 days|
|Payment Terms:||L/C, T/T, Western Union, Pyapal|
|Wire Type:||Single Wire, Stranded Wire, Parallel Wire||Wire Number:||2,3,4,5,6|
|Insulation Type:||Single, Composite Coating||Insulation Material:||Polyester, Polyurethane....|

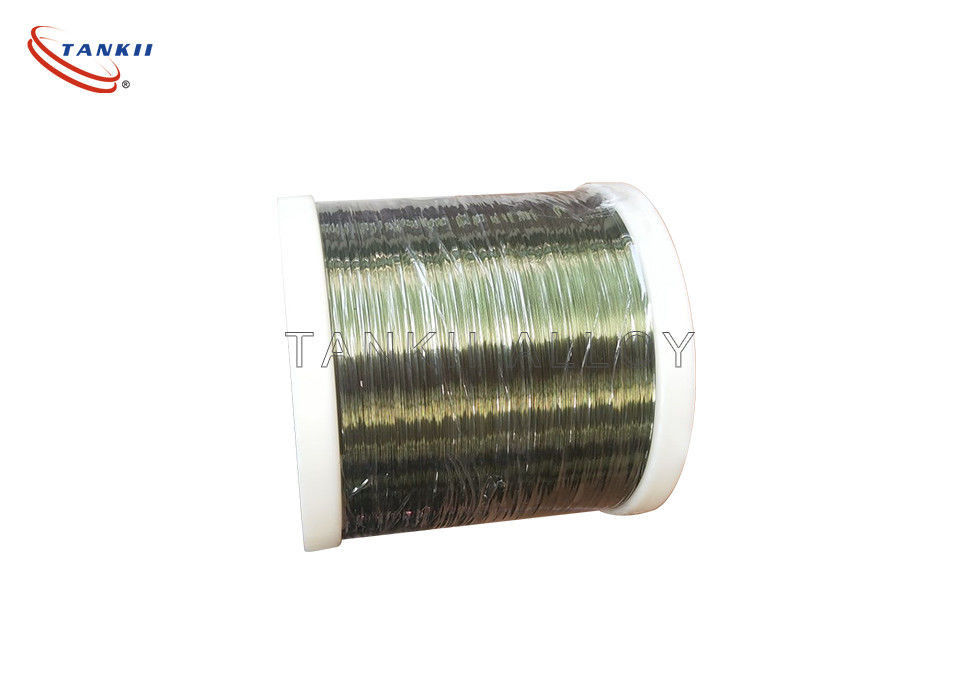

Enameled Copper Parallel/ Triple Electric Varnished Wire for Guitar Using
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Moq:5kg each size
Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, generators, speakers, hard disk head actuators, electromagnets, electric guitar pickups and other applications that require tight coils of insulated wire.
The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.Enameled wire is a main variety of winding wire. It consists of two parts, the conductor and the insulation layer. The bare wire is annealed and softened, and then painted and baked multiple times. However, it is not easy to produce products that meet the requirements of the standard and meet the requirements of customers. It is affected by factors such as the quality of raw materials, process parameters, production equipment, and the environment. Therefore, the quality characteristics of various enameled wires are different, but all have Mechanical properties, chemical properties, electrical properties, and thermal properties.
|Item||Purity||Molecular formula||Atomic weight||Density||Melting point||Boiling point|
|Parameter||99.999% / 99.99995%||Cu||63.55.||8.96||1083.4||2567|
As envelope alternatives of pure enameled copper wire, it has good performance of high frequency transmission, originally it was applied in various types of high-frequency electromagnetic induction coil; now in order to save more production cost, ECCA wire has been widely used in various types of electronic coils, transformers, inductors, rectifiers, and all kinds of large and small motors, and has excellent soldering performance. Its density is low, the weight of the unit product can at least save 40% of the copper wire, it can save a lot of cost of production material.
Flexible copper connectors, adopt to various of hihg and low Electric Appliance, Vacuum Electronic Appliance.
Mineral Product Flame-Proof Switch and also cars, Locomotive which used as a connector. The products using bare copper wire or tinned braided copper wire(stranded copper wire), taking the method of cold press.
The interface can be tinned or silvered according to customer's requires.
