Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2015
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Composition: |
Nickel 80% Chromium 20% |
Grade: |
Nickel Based Alloy |
Min Ni: |
78.5% |
Alloy Or Not: |
YES |
Shape: |
Flat Strip/ Strip |
Ultimate Strength: |
580-750 |
Composition: |
Nickel 80% Chromium 20% |
Grade: |
Nickel Based Alloy |
Min Ni: |
78.5% |
Alloy Or Not: |
YES |
Shape: |
Flat Strip/ Strip |
Ultimate Strength: |
580-750 |

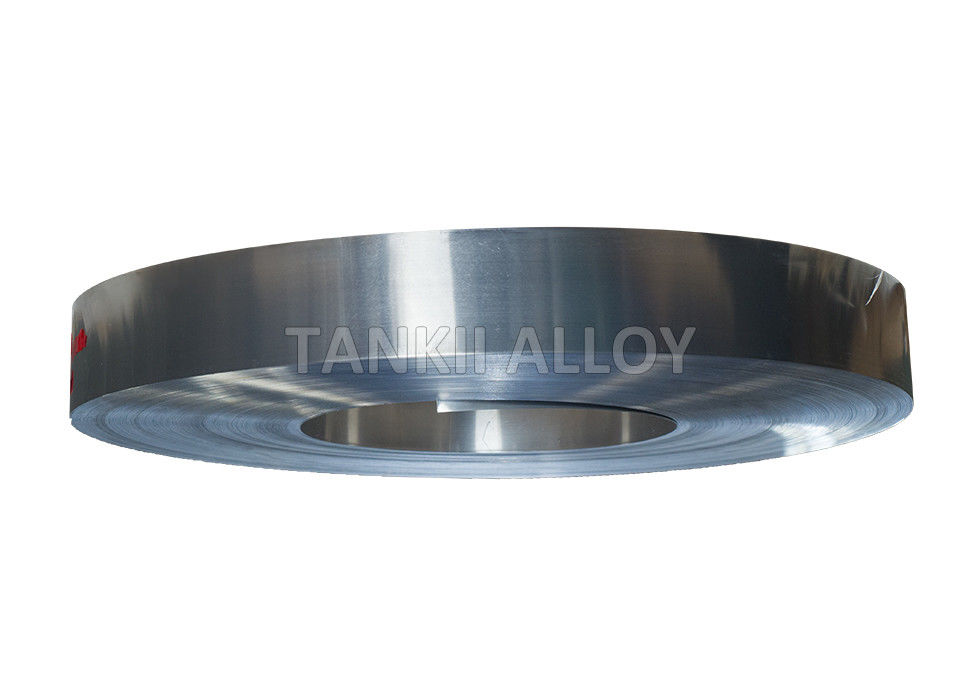

Flat Electric Heat Strips N8/Ni80cr20 Tape for Double Strip Coils Braking Resistor
General Description:
The mechanical properties of nickel are close to that of carbon steel, and the corrosion resistance of the metal is only inferior to that of silver in the metal materials, and the surface of the nickel wire will produce a layer of protective film. Used for electric light source materials, coating with high surface quality, good processing performance, for production work such as anode, spacer, electrode holder, etc., in the lighting as a guide wire, also in the chlor alkali industry plays a very important role. Electrical grade material for use in different conditions, and a variety of components of the alloy. And the electrode materials are required to have low electrical resistivity lest cause the electrode to overheat, high temperature strength to reduce.
Shape Data:
| Form | Specification | Supply Form | Others |
| Sheet | Thickness:0.40-4.75mm,General Width:1000,1219,1500mm | Whole Coil or piece of it | Cold Annealed,Surface 2B,2E |
| Plate | Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled) | Whole Coil or piece of it | Single hot rolling,Solid solution annealed state,Surface 1D |
| Belt | Thickness:0.10-3.0mm,Width:50-500mm | Whole Coil or Specified size | Cold Annealed,Surface 2B,2E |
| Bar & Rod | Rolled barΦ5-45mm,Length≤1500mm | Polished Bar(circle,Square) | Solution annealing,descaling |
| Forged barΦ26-245mm,Length≤4000mm | |||
| Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
Application of Nichrome Alloy:
Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.
Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
