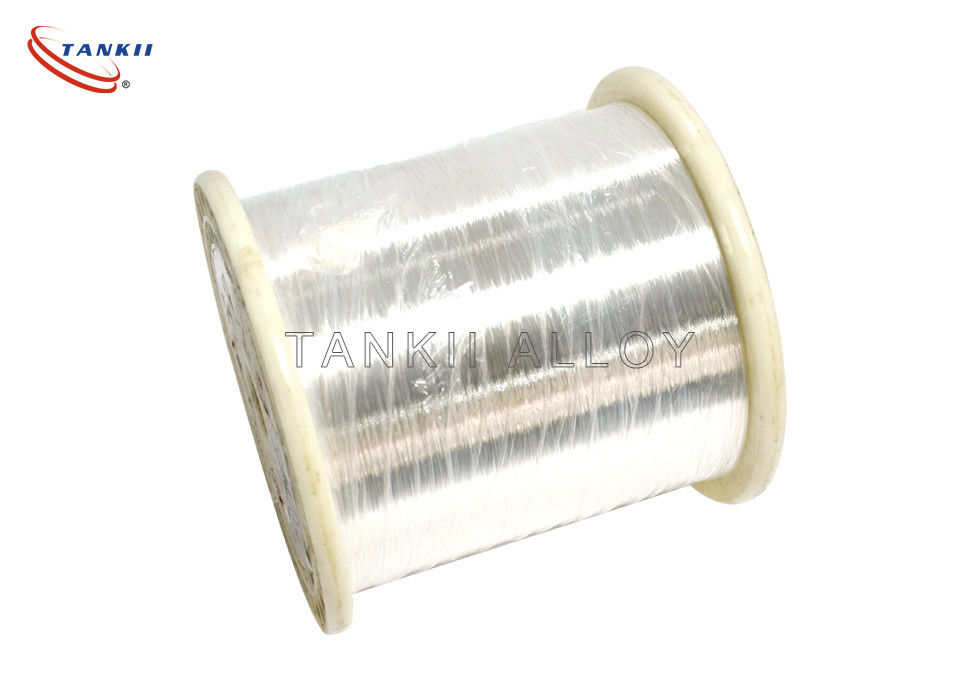

0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery

0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery

    • 0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery
    • 0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery
    • 0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery
    • 0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery
  • 0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery

    Product Details:

    Place of Origin: Shanghai
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: C1100

    Payment & Shipping Terms:

    Minimum Order Quantity: 5kg
    Price: To negotiate
    Packaging Details: Spool, Carton, plywood case with plastic film as your requirements
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100+TON+MONTH
    Contact Now
    Detailed Product Description
    Insulation: Silver/ Tin... Application: Electronics, Communication
    Color: Silver White Surface: Smooth
    Size: As Clients´ Requirements

    0.5mm Silver Plating Copper Wire Silver White Good Conductivity for Electronics​





    Product Description

    Silver-plated copper wire is called silver-plated copper wire or silver-plated wire in some occasions. It is a thin wire drawn by a wire drawing machine after being plated with silver on oxygen-free copper wire or low-oxygen copper wire. Silver-plated copper wire is divided into silver-plated soft round copper wire and silver-plated hard round copper wire. The silver-plated soft round copper wire is annealed to change its physical characteristics to achieve the purpose of softening. A good silver-plated copper wire coating is continuously and firmly attached to the surface of the conductor, and the sample surface does not become black after the sample. The surface of the silver-plated coating should be smooth and continuous, free of harmful defects such as silver particles, burrs, and mechanical damage.


    Detailed Properties



    Mechanical Property   Cu CuSn6
    Tensile Strength [N/mm²] 220-300 470-530
    Elongation 1% [N/mm²] 120-200 380-460
    Resistance(IACS) [%] 101 13
    Conductivity [S*m/mm²] 58.5 7.5
    Resistivity [Ohm*mm²/m] 0.0171 0.1333
    Temperature Coefficient of Resistance [1E-6/K] 3900-4300 600-700
    Weldability [-] Good Good



    Copper Capabilities

    Copper is the second most conductive metal in the world behind silver, but due to its abundance and how easy it is to work with, copper is considered the standard in electrical work. Copper is also the standard by which all other conductive metals are judged. In 1913, the International Electro-Technical Commission set its conductivity at 100 percent of the International Annealed Copper Standard (IACS). The metal resists galvanic corrosion – the gradual deterioration of one metal in electrical contact with another metal – and is durable enough that it avoids stretching, nicks and breaks. However, copper is not invincible.






    0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery0.1mm-0.3mm Silver Plated Copper Wire Thin Silver Plating For Jewellery
