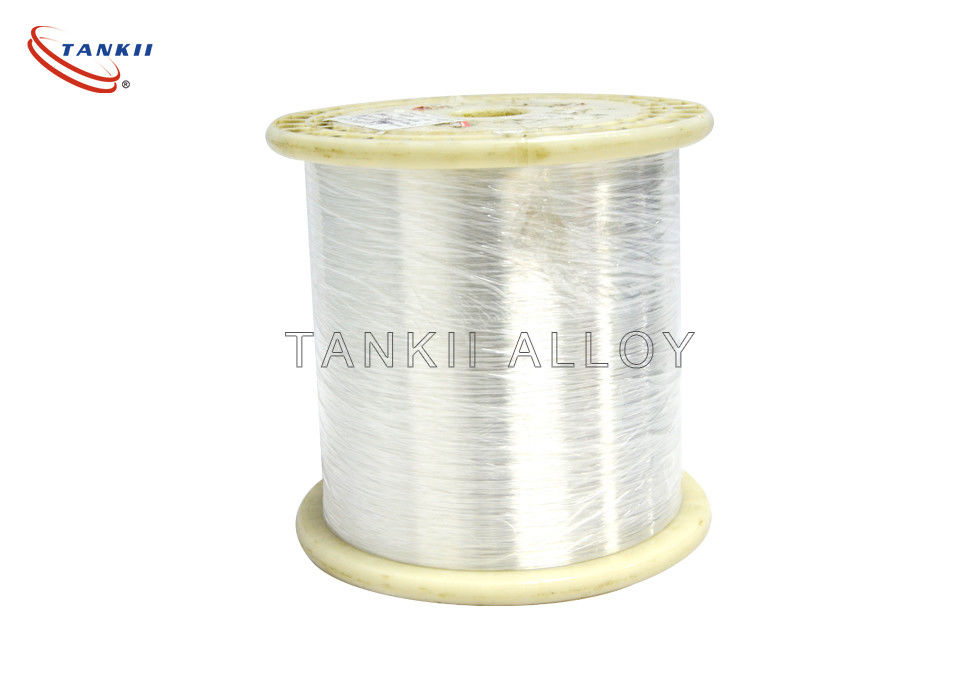

0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics

0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics

    • 0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics
    • 0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics
    • 0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics
    • 0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics
  • 0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics

    Product Details:

    Place of Origin: Shanghai
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: C1100

    Payment & Shipping Terms:

    Minimum Order Quantity: 5kg
    Price: To negotiate
    Packaging Details: Spool, Carton, plywood case with plastic film as your requirements
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 100+TON+MONTH
    Contact Now
    Detailed Product Description
    Conductor: Pure Copper Insulation: Silver
    Application: Electronics, Communication Advantages: Excellent Electrical, Thermal And Corrosion Resistance
    Surface: Smooth, Silver White Size: As Clients´ Requirements

    0.5mm Silver Plating Copper Wire Silver White Good Conductivity for Electronics​





    Product Description

    Silver-plated copper wire is called silver-plated copper wire or silver-plated wire in some occasions. It is a thin wire drawn by a wire drawing machine after being plated with silver on oxygen-free copper wire or low-oxygen copper wire.


    Silver-plated copper wire is silver-plated on high-quality oxygen-free copper or drawn. It has excellent electrical conductivity, thermal conductivity, corrosion resistance and high temperature oxidation resistance. Silver-plated copper wire is widely used in electronics, communications, aerospace, military and other fields to reduce the contact resistance of metal surfaces and improve welding performance. Silver has high chemical stability, can resist alkali and some organic acids, and does not interact with oxygen in general air. It is also easy to polish and has strong reflective ability, so the silver coating is also commonly used in tableware and musical instruments , Jewelry and all kinds of handicraft decoration. However, in the presence of sulfides or halides, silver easily loses its luster.





    Copper Capabilities

    Copper is the second most conductive metal in the world behind silver, but due to its abundance and how easy it is to work with, copper is considered the standard in electrical work. Copper is also the standard by which all other conductive metals are judged. In 1913, the International Electro-Technical Commission set its conductivity at 100 percent of the International Annealed Copper Standard (IACS). The metal resists galvanic corrosion – the gradual deterioration of one metal in electrical contact with another metal – and is durable enough that it avoids stretching, nicks and breaks. However, copper is not invincible.



    Detailed Properties



    Mechanical Property   Cu CuSn6
    Tensile Strength [N/mm²] 220-300 470-530
    Elongation 1% [N/mm²] 120-200 380-460
    Resistance(IACS) [%] 101 13
    Conductivity [S*m/mm²] 58.5 7.5
    Resistivity [Ohm*mm²/m] 0.0171 0.1333
    Temperature Coefficient of Resistance [1E-6/K] 3900-4300 600-700
    Weldability [-] Good Good



    0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics0.5mm Silver Plating Precision Alloy Copper Wire Good Conductivity For Electronics
