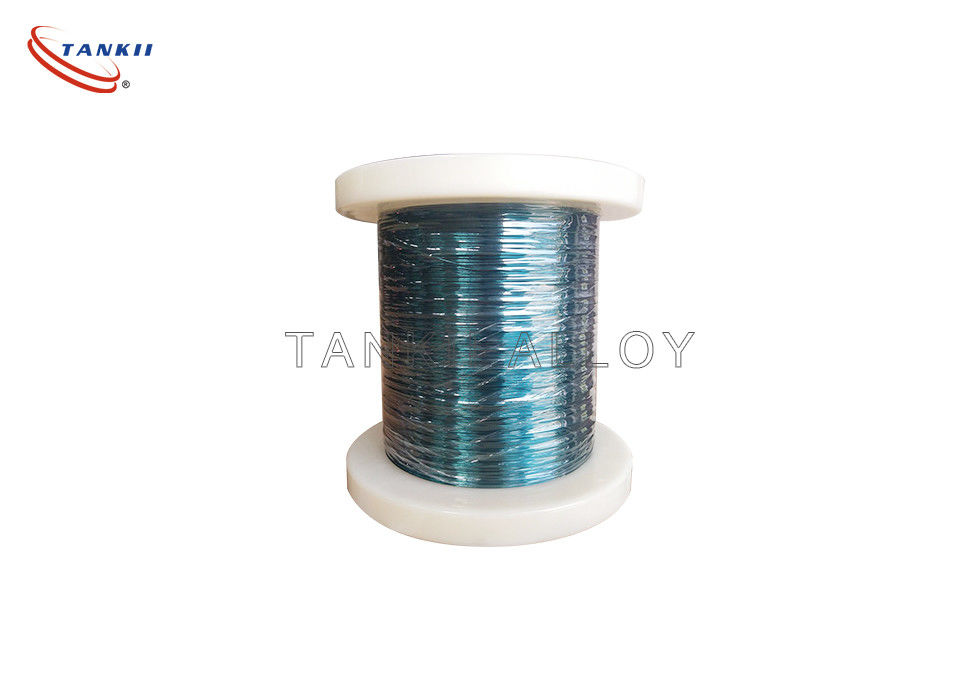

Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments

Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments

    • Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments
    • Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments
    • Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments
    • Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments
  • Customized Color Enamelled Wire / Varnished Resistance Wire For Instruments

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001:2008
    Model Number: Copper

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 kg
    Price: To negotiate
    Packaging Details: Spool, coil, carton, plywood case with plastic film according to client's requirements
    Delivery Time: 7-12 days
    Payment Terms: L/C, T/T, Western Union, Pyapal
    Supply Ability: 30+TON+MONTH
    Contact Now
    Detailed Product Description
    Color: Required Size: 0.02mm-1.5mm
    Application: Instruments Sample: Available
    Conductor: Copper Alloy, Nickel Alloy..
    High Light:

    enamel magnet wire

    ,

    enameled wire

    Customized Color Enamelled Wire Varnished Resistance Wire for Instruments



    Detailed Description



    Enameled wire is a main variety of winding wire. It consists of two parts, the conductor and the insulation layer. The bare wire is annealed and softened, and then painted and baked multiple times. However, it is not easy to produce products that meet the requirements of the standard and meet the requirements of customers. It is affected by factors such as the quality of raw materials, process parameters, production equipment, and the environment. Therefore, the quality characteristics of various enameled wires are different, but all have Mechanical properties, chemical properties, electrical properties, and thermal properties.



    Magnet wire or enameled wire is a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, generators, speakers, hard disk head actuators, electromagnets, electric guitar pickups and other applications that require tight coils of insulated wire.

    The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.



    These enameled resistance wires have been broadly used for standard resistors, automobile
    parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

    Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.


    Polyurethane enameled wire lacquer was developed by Bayer in 1937. Because of its direct solderability, high frequency resistance and dyeability, it is widely used in electronics and electrical appliances. At present, foreign countries are very concerned about improving the heat resistance level of polyurethane enameled wire without affecting its direct welding performance. In Europe, the United States, and Japan, F-level and H-level polyurethane enameled wires have been developed. Due to the rapid development of color TVs, Japan's color TV FBT with a large length of salt-free polyurethane enameled wire without pinholes has attracted the attention of countries around the world, and it is still Japan's leading.
    The development of domestic polyurethane enameled wire is slow. Although ordinary polyurethane lacquers are produced in some factories, they are mainly imported because of poor processability and surface quality. F grade polyurethane has also been developed in China, but has not formed production capacity. Large-length pinhole-free polyurethane paint has also been successfully developed and put on the market. It is mainly used to make black and white TV FBT coils.



    Type Of Bare Alloy Wire

    The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

    Size:

    Round wire:0.018mm~2.5mm

    Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

    Ribbon Size:0.01mm*0.2mm~1.2mm*5mm

    Moq:5kg each size





    Type of Insulation

    Insulation-enamelled Name

    Thermal Level℃

    (working time 2000h)

    Code Name GB Code ANSI. TYPE
    Polyurethane enamelled wire 130 UEW QA MW75C
    Polyester enamelled wire 155 PEW QZ MW5C
    Polyester-imide enamelled wire 180 EIW QZY MW30C
    Polyester-imide and polyamide-imide double coated enameled wire 200

    EIWH

    (DFWF)

    QZY/XY MW35C
    Polyamide-imide enamelled wire 220 AIW QXY

    MW81C











    Customized Color Enamelled Wire / Varnished Resistance Wire For InstrumentsCustomized Color Enamelled Wire / Varnished Resistance Wire For Instruments
