Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO 9001
Model Number: FeCrAl134
Payment & Shipping Terms
Minimum Order Quantity: 5kg
Packaging Details: spool 、coil、 wooden case
Delivery Time: 5-25days
Payment Terms: T/T, Western Union
Supply Ability: 20000kg / week
Name: |
1.4725 |
Material: |
FeCrAl134 |
Size: |
Customized |
Application: |
Resistance Heating Strip |
MOQ: |
20KG |
Shape: |
Strip |
Surface: |
Bright |
Name: |
1.4725 |
Material: |
FeCrAl134 |
Size: |
Customized |
Application: |
Resistance Heating Strip |
MOQ: |
20KG |
Shape: |
Strip |
Surface: |
Bright |

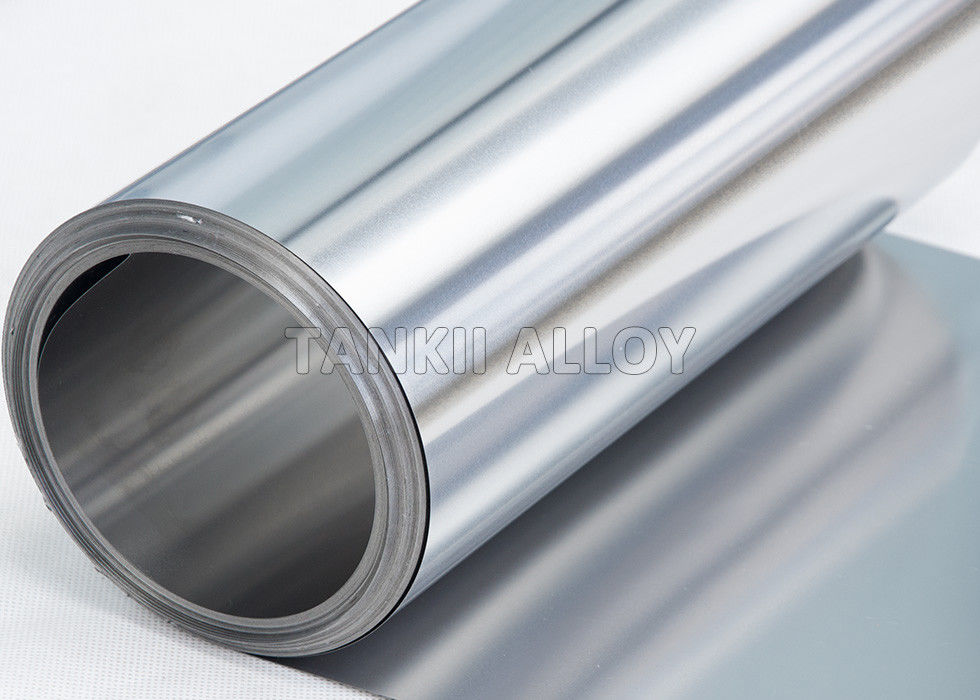

0.12*310mm FeCrAl 134 1.4725 bright surface etching resistance Alloy Ribbon Small quantity is available
Etching is a process by which you apply an acid to metal, causing uncovered parts to be "eaten away" by the acid (usually ferric chloride, but there are other methods.) To etch a specific design in your metal, you apply that design using a "resist," a substance that covers the areas on metal that you do not want to be etched.
| Grade | 1Cr13Al4 | TK1 | 0Cr25Al5 | 0Cr20Al6Re | 0Cr23Al5 | 0Cr19Al3 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
|
Nominal composition % |
Cr | 12.0-15.0 | 22.0-26.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 5.0-7.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | 0.04-1.0 | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | ||
| Nb0.5 | Mo1.8-2.2 | ||||||||
| Resistivity 20ºC | 1.25 | 1.48 | 1.42 | 1.40 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm³) | 7.4 | 7.1 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Max continuous operating temperature(ºC) | 650 | 1400 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 |
|
Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1
Max working temperature: 1250~1400°c
Resistivity: 1.35~1.5 mm2 Ω/m
Diameter 6mm~14mm usually
FeCrAl Electrictrical Resistance Heating alloys with high electrical resistivity, temperature coefficient of resistance is small, high operating temperature. good corrosion resistance under high temperature, and particularly suitable for use in a gas containing sulfur and sulfides, low price.
