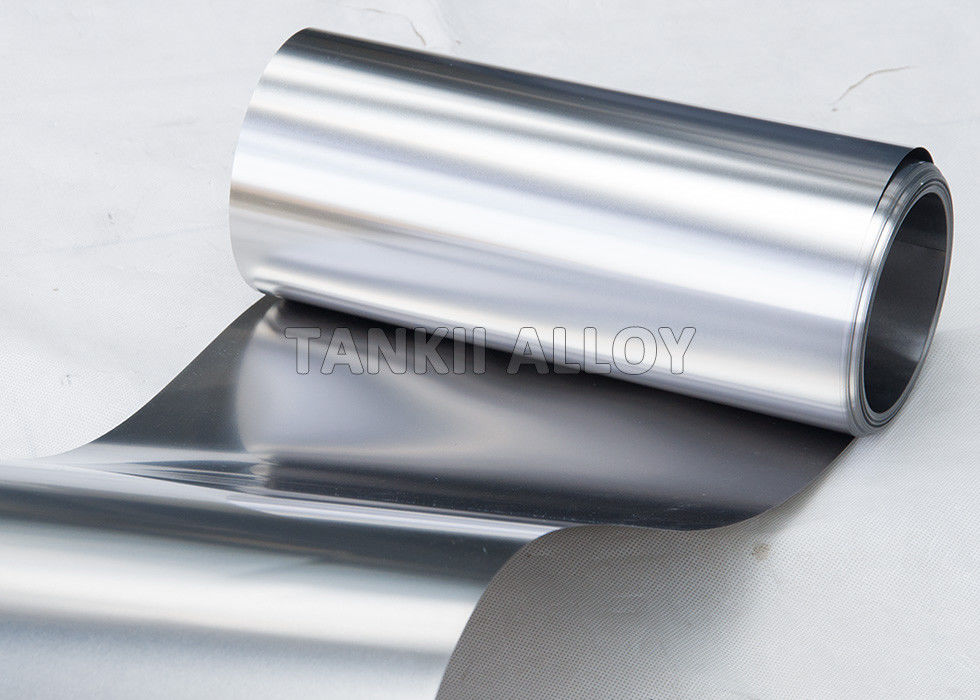

Etching Resistance Nickel Chrome Alloy FeCrAl 134 0.08mm 0.1mm Bright Surface

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: FeCrAl134

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Packaging Details: spool 、coil、 wooden case

Delivery Time: 5-25days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg / week

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome wire

,

nichrome resistance wire

Name:
Ni80Cr20
Material:
FeCrAl134
Size:
Customized
Application:
Resistance Heating Strip
MOQ:
20KG
Shape:
Strip
Surface:
Bright
Name:
Ni80Cr20
Material:
FeCrAl134
Size:
Customized
Application:
Resistance Heating Strip
MOQ:
20KG
Shape:
Strip
Surface:
Bright
Description
Etching Resistance Nickel Chrome Alloy FeCrAl 134 0.08mm 0.1mm Bright Surface

FeCrAl 134 0.08mm 0.1mm bright surface etching resistance Alloy Strip in stock 0.12*310mm



Etching is a process by which you apply an acid to metal, causing uncovered parts to be "eaten away" by the acid (usually ferric chloride, but there are other methods.) To etch a specific design in your metal, you apply that design using a "resist," a substance that covers the areas on metal that you do not want to be etched.

Grade 1Cr13Al4 TK1 0Cr25Al5 0Cr20Al6Re 0Cr23Al5 0Cr19Al3 0Cr21Al6Nb 0Cr27Al7Mo2

Nominal

composition

%

Cr 12.0-15.0 22.0-26.0 23.0-26.0 19.0-22.0 22.5-24.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 5.0-7.0 4.5-6.5 5.0-7.0 4.2-5.0 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune 0.04-1.0 opportune opportune opportune opportune opportune opportune
Fe Bal.   Bal. Bal. Bal. Bal. Bal. Bal.
              Nb0.5 Mo1.8-2.2
Resistivity 20ºC 1.25 1.48 1.42 1.40 1.35 1.23 1.45 1.53
Density(g/cm³) 7.4 7.1 7.1 7.16 7.25 7.35 7.1 7.1
Max continuous operating temperature(ºC) 650 1400 1250 1250 1250 1100 1350 1400




Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1



Max working temperature: 1250~1400°c



Resistivity: 1.35~1.5 mm2 Ω/m



Diameter 6mm~14mm usually
