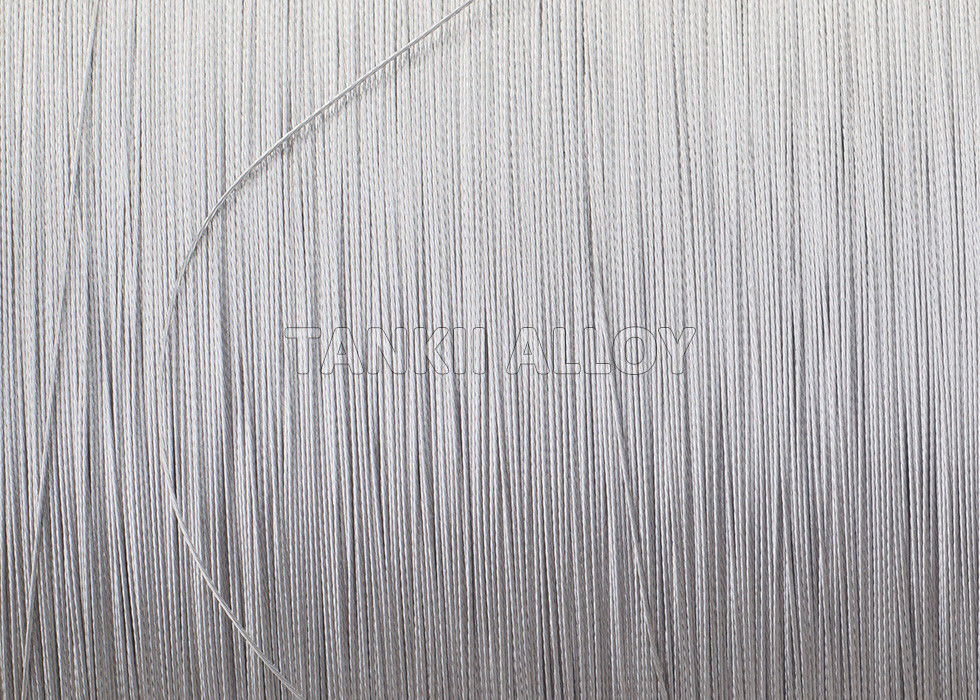

Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified

Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified

    • Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified
    • Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified
    • Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified
    • Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified
  • Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: K

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg per leg
    Price: Negotiation
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Material: NiCr -NiSi Surface: Bright
    Diameter: 7*0.12mm Wire Type: Stranded Wire
    Insulation: No Wire Class: IEC Class I
    Leading Time: 5~10 Days After Getting The Payment Application: Thermocouple,temperature Measurement
    Standard: ANSI, IEC584 Item: 20AWG ISO Certified Thermocouple Extension Alloy K Type Stranded Wire Used For Extension Cable
    High Light:

    thermocouple lead wire

    ,

    high temperature thermocouple wire


    20AWG ISO certified Thermocouple Extension Alloy K Type Stranded Wire Used For Extension Cable​


    Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
    A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



    20AWG ISO certified Thermocouple Extension Alloy K Type Stranded Wire Used For Extension Cable


    Tankii Type K thermocouple is composed of a Nickel-10% chromium (+) wire versus a nickel-5% aluminum and silicon (-) wire. This type of thermocouple should only be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). They are most widely used at temperatures above 540'C (1000"F) due to superior oxidation resistance in comparison to Types E, T, or J. There are some conditions which should be avoided when using Type K thermocouples. Vacuum applications should not use Type K due to vaporization of chromium in the positive element. Tankii Type K thermocouples should not be used in Sulfurous environments since both elements will rapidly corrode and the negative element will eventually fail mechanically due to becoming brittle. Reducing atmospheres should also be avoided. Low oxygen levels can cause the Green-Rot phenomenon in which the chromium in the elements starts to oxidize causing large negative drifts in calibration.



    20AWG ISO certified Thermocouple Extension Alloy K Type Stranded Wire Used For Extension Cable

    Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

    Tankii products conform to the standards of IEC584 -1and IEC-2.


    Tankii Thermocouple strips, thermocouple connectors are available.
    Tankii thermocouple grade extension wire can be supplied as per your request.
    Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.

    Available size range:
    0.05mm~12mm
    Sigle wire/ stranded wire / bar/ strip can be customized.

    Application Range of Tankii  thermocouple wire:

    1. Aerospace and Composites
    2. Aluminum industry
    3. Food and Pharmaceutical
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing
    9. Steel industry
    10. Utilities Power Generation

    20AWG ISO certified Thermocouple Extension Alloy K Type Stranded Wire Used For Extension Cable

    Tankii Thermocouple Type and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B 600~1700


    PtRh13-Pt

    R 0~1600


    PtRh10-Pt

    S 0~1600


    NiCr-NiSi

    K -200~1300


    NiCr-CuNi (constantan)

    E -200~900


    Fe-CuNi (constantan)

    J -40~750


    Cu-CuNi (constantan)

    T -200~350


    NiCrSi-NiSi

    N -200~1300


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B 600~1700 ±0.25% t
    600~800 ±4
    800~1700 ±0.5%t
    Type R(S) 0~1100 ±1
    1100~1600 ±[1+(t-1100) ×0.3%]
    0~600 ±1.5
    600~1600 ±0.25% t
    Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type E -40~1100 ±1.5℃ or ±0.4%t
    -40~1300 ±2.5℃ or ±0.75%t
    -200~40 ±2.5℃ or ±1.5%t
    Type J -40~750 ±1.5℃ or ±0.4%t
    -40~750 ±2.5℃ or ±0.75%t
    Type T -40~350 ±0.5℃ or ±0.4%t
    -40~350 ±1.0℃ or ±0.75%t
    -200~40 ±1.0℃ or ±1.5%t




     Delivery and Packing of thermocouple wire:

    1. Packaging Details : DIN spools with plastic film wrapped and carton package.

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty


    20AWG ISO certified Thermocouple Extension Alloy K Type Stranded Wire Used For Extension Cable
    Stranded Alloy K Type Thermocouple Bare Wire 20AWG For Extension Cable ISO Certified


    Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple  flat wire, thermocouple strip.
