Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance

Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance

    • Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance
    • Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance
  • Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: SGS
    Model Number: Cr22Al4.5, 0Cr25Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 100kg
    Packaging Details: Packed in wooden case
    Delivery Time: 5~15 days
    Payment Terms: Western Union, T/T,
    Supply Ability: 500tons per month
    Contact Now
    Detailed Product Description
    Material: Iron-Chromium-Aluminium Alloy Grade: Cr22Al4.5, 0Cr25Al5
    Shape: Round Bar Or Flat Bar Feature: High Corrosion Resistance
    Size: 8mm /12mm /14mm Surface: Oxidized / Bright
    MOQ: 100kg Item: Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements



    Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements



    Tankii DESCRIPTION OF FECRAL ALLOYS: KD alloys, Alchrome / Aluchrome I / KD / KDS
    FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
    They are typically used in electrical heating elements in industrial furnaces and home appliances.
    FeCrAl alloys have higher service temperature than NiCr Alloys and much lower prices. But they have lower stability and flexibility, easily to be fragile after a time circle



    Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements


    TANKII FECRAL ALLOYS CHARACTERISTICS:
    1) Manufactured according to international quality. System (ISO9001).
    2) Stable resistance and long-life span.
    3) Mill test certificate will be provided after production.
    4) Size range wire:.0.018-10mm ribbons: 0.05-0.2*2-6mm strips: 0.05-5*5-250mm.
    5) Good packing methods to keep goods no damage during delivery.
    6) Customized lable, packing, OEM service..
    7) 24 hours after-sale service.



    Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements



    Application:

    Heating elements for furnaces

    Heating lead-out rod for furnaces.





    Main properties and technical parameters of fe-cr-al electrothermal resistance alloy:



    The fe cr al electrothermal resistance alloy has the characteristics of high resistivity, low resistance temperature coefficient and high service temperature. Good corrosion resistance at high temperature, especially suitable for use in the atmosphere containing sulfur and sulfide, and low price, This alloy is an ideal heating material for industrial electric furnaces, household appliances, far-infrared devices.



    Main advantages and disadvantages of iron chromium and aluminum alloy series:



    Advantages: iron, chromium and aluminum electrothermal alloy with high service temperature, the  service temperature is up to 1400 degrees, (0Cr21A16Nb, 0Cr27A17Mo2, etc.), long service life, high surface load, good oxidation resistance, high resistivity, cheap price, etc. Disadvantages: The high temperature strength is low, with the temperature increases the alloy's plasticity also increases, the element is easily deformed, not easy to te bent and repaired.





    Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements


    MAIN CHARACTERISTICS OF TANKII FECRAL HEATING ALLOYS


    Alloy Nomenclature Performance

    1Cr13Al4

    0Cr25Al5

    0Cr21Al6

    0Cr23Al5

    0Cr21Al4

    0Cr21Al6Nb

    0Cr27Al7Mo2

    Main Chemical composition

    Cr

    12.0-15.0

    23.0-26.0

    19.0-22.0

    20.5-23.5

    18.0-21.0

    21.0-23.0

    26.5-27.8

    Al

    4.0-6.0

    4.5-6.5

    5.0-7.0

    4.2-5.3

    3.0-4.2

    5.0-7.0

    6.0-7.0

    Re

    opportune

    opportune

    opportune

    opportune

    opportune

    opportune

    opportune

    Fe

    Rest

    Rest

    Rest

    Rest

    Rest

    Rest

    Rest

    Nb0.5

    Mo1.8-2.2

    Max. continuous service temp. of element(°C)

    950

    1250

    1250

    1250

    1100

    1350

    1400

    Resistivity at 20ºC(μΩ·m)

    1.25

    1.42

    1.42

    1.35

    1.23

    1.45

    1.53

    Density(g/cm3)

    7.40

    7.10

    7.16

    7.25

    7.35

    7.10

    7.10

    Thermal conductivity(KJ/m·h·ºC)

    52.7

    46.1

    63.2

    60.2

    46.9

    46.1


    Coefficient of lines expansion(α×10-6/ºC)

    15.4

    16.0

    14.7

    15.0

    13.5

    16.0

    16.0

    Melting point approx.( ºC)

    1450

    1500

    1500

    1500

    1500

    1510

    1520

    Tensile strength(N/mm2)

    580-680

    630-780

    630-780

    630-780

    600-700

    650-800

    680-830

    Elongation at rupture(%)

    >16

    >12

    >12

    >12

    >12

    >12

    >10

    Variation of area(%)

    65-75

    60-75

    65-75

    65-75

    65-75

    65-75

    65-75

    Repeat Bending frequency(F/R)

    >5

    >5

    >5

    >5

    >5

    >5

    >5

    Hardness(H.B.)

    200-260

    200-260

    200-260

    200-260

    200-260

    200-260

    200-260

    continuous servicetime(Hours/ ºC)

    --

    ≥80/1300

    ≥80/1300

    ≥80/1300

    ≥80/1250

    ≥50/1350

    ≥50/1350

    Micrographic structure

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Magnetic properties

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic



    NiChrome bar or flat bar can also be used for bolt for furnaces.



    Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements

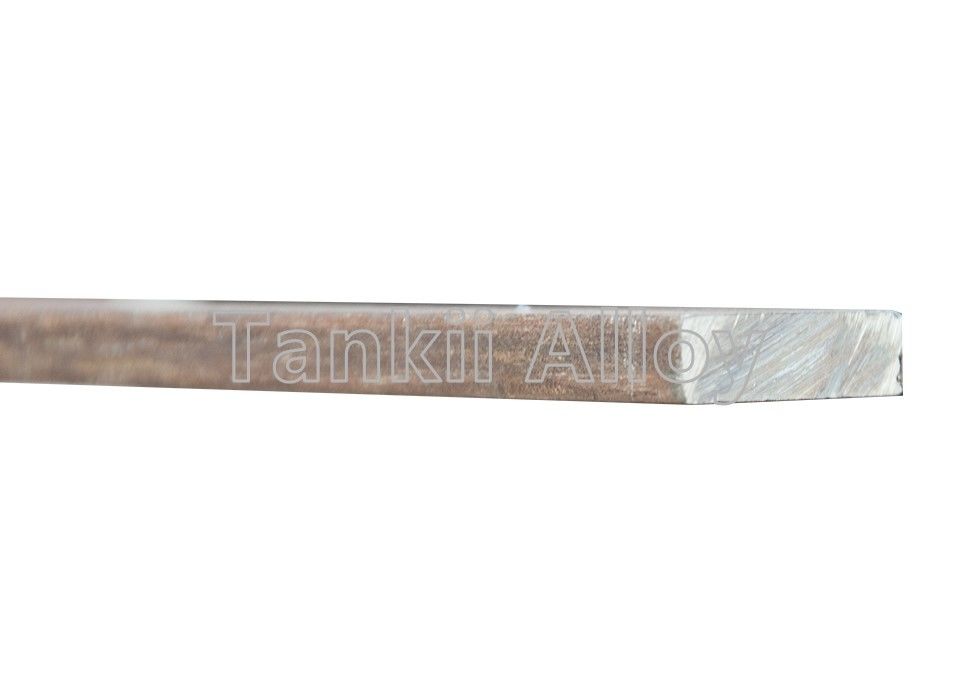

    Photos:

    Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance



    Application:Heater lead-out rod:



    Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance









    Cr22Al4.5Fe FeCrAl Alloy With Good Surface 8mm /12mm With Stable Resistance



    Cr22Al4.5Fe FeCrAl Alloy Flat /Round Bar With Good Surface Used For Electrical Heating Elements





    Please feel free to let me know if you have any inquiry on KD alloy bolt, bar, flat bar  or rod.
