Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified

Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified

    • Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified
    • Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified
    • Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified
  • Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: SGS
    Model Number: 0Cr23Al5, 0Cr25Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 100kg
    Packaging Details: Packed in wooden case
    Delivery Time: 5~15 days
    Payment Terms: Western Union, T/T,
    Supply Ability: 500tons per month
    Contact Now
    Detailed Product Description
    Material: 0Cr23Al5,0Cr25Al5 Size: 8mm /12mm /14mm
    MOQ: 100kg Surface: Oxidized / Bright

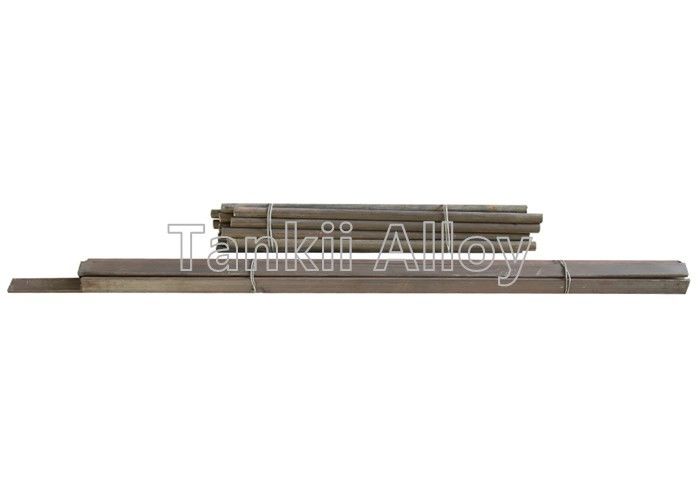

    ISO Certified 0Cr23Al5 Alloy 8mm Bolt / Rod / bar/ Flat Bar Used For Heater Lead-out Rod

    Tankii DESCRIPTION OF FECRAL ALLOYS: KD alloys
    FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
    They are typically used in electrical heating elements in industrial furnaces and home appliances.
    FeCrAl alloys have higher service temperature than NiCr Alloys and much lower prices. But they have lower stability and flexibility, easily to be fragile after a time circle

    TANKII FECRAL ALLOYS CHARACTERISTICS:
    1) Manufactured according to international quality. System (ISO9001).
    2) Stable resistance and long-life span.
    3) Mill test certificate will be provided after production.
    4) Size range wire:.0.018-10mm ribbons: 0.05-0.2*2-6mm strips: 0.05-5*5-250mm.
    5) Good packing methods to keep goods no damage during delivery.
    6) Customized lable, packing, OEM service..
    7) 24 hours after-sale service.





    Application:

    Heating elements for furnaces

    Heating lead-out rod for furnaces.




    MAIN CHARACTERISTICS OF TANKII FECRAL HEATING ALLOYS


    Alloy Nomenclature Performance

    1Cr13Al4

    0Cr25Al5

    0Cr21Al6

    0Cr23Al5

    0Cr21Al4

    0Cr21Al6Nb

    0Cr27Al7Mo2

    Main Chemical composition

    Cr

    12.0-15.0

    23.0-26.0

    19.0-22.0

    20.5-23.5

    18.0-21.0

    21.0-23.0

    26.5-27.8

    Al

    4.0-6.0

    4.5-6.5

    5.0-7.0

    4.2-5.3

    3.0-4.2

    5.0-7.0

    6.0-7.0

    Re

    opportune

    opportune

    opportune

    opportune

    opportune

    opportune

    opportune

    Fe

    Rest

    Rest

    Rest

    Rest

    Rest

    Rest

    Rest

    Nb0.5

    Mo1.8-2.2

    Max. continuous service temp. of element(°C)

    950

    1250

    1250

    1250

    1100

    1350

    1400

    Resistivity at 20ºC(μΩ·m)

    1.25

    1.42

    1.42

    1.35

    1.23

    1.45

    1.53

    Density(g/cm3)

    7.40

    7.10

    7.16

    7.25

    7.35

    7.10

    7.10

    Thermal conductivity(KJ/m·h·ºC)

    52.7

    46.1

    63.2

    60.2

    46.9

    46.1


    Coefficient of lines expansion(α×10-6/ºC)

    15.4

    16.0

    14.7

    15.0

    13.5

    16.0

    16.0

    Melting point approx.( ºC)

    1450

    1500

    1500

    1500

    1500

    1510

    1520

    Tensile strength(N/mm2)

    580-680

    630-780

    630-780

    630-780

    600-700

    650-800

    680-830

    Elongation at rupture(%)

    >16

    >12

    >12

    >12

    >12

    >12

    >10

    Variation of area(%)

    65-75

    60-75

    65-75

    65-75

    65-75

    65-75

    65-75

    Repeat Bending frequency(F/R)

    >5

    >5

    >5

    >5

    >5

    >5

    >5

    Hardness(H.B.)

    200-260

    200-260

    200-260

    200-260

    200-260

    200-260

    200-260

    continuous servicetime(Hours/ ºC)

    --

    ≥80/1300

    ≥80/1300

    ≥80/1300

    ≥80/1250

    ≥50/1350

    ≥50/1350

    Micrographic structure

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Ferrite

    Magnetic properties

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic

    Magnetic



    Application:Heater lead-out rod

    Electrical Heating Elements FeCrAl Alloy 8mm Bolt / Rod 0Cr23Al5 ISO Certified
