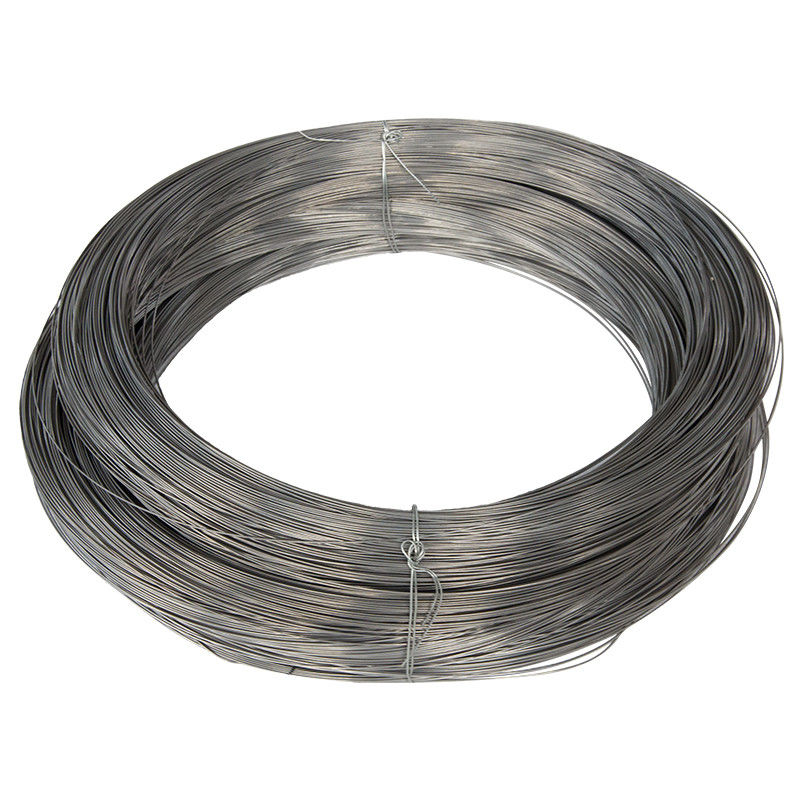

Round Fecral Alloy Wire Cr21Al4 Material For Resistance Heating Elements

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2015

Model Number: Cr21Al4

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: Negotiated

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Material:
Cr21Al4
Colour:
Acid White
State:
Soft
Shape:
Round Wire
Feature:
High Resistance, High Temperature Resistance
Material:
Cr21Al4
Colour:
Acid White
State:
Soft
Shape:
Round Wire
Feature:
High Resistance, High Temperature Resistance
Description
Round Fecral Alloy Wire Cr21Al4 Material For Resistance Heating Elements

1.6mm Cr21Al4 Fecral Alloy Wire 0Cr19Al3 FeCeAl Alloy 1.4mm Electric Heating Wire/ Rod Wire Acid White Wire for Redraw



Specification:

Alloy Type Diameter Resistivity Tensile Elongation
(%)
Bending Max.
Continuous
Working
Life
(mm) (μΩm)(20°C) Strength Times Service (hours)
(N/mm²)   Temperature
(°C)
Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
>3.0 1.14±0.05 850-950 >20 >9 1200 >20000
Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000
1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5 1400 >8000





1) Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm

2) Product Specifications:
Ferro-Chrome Alloys (Ferritic Alloys):
OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
Nickel-Chrome Alloys (Ni-Cu Alloys):
Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
Constantan Alloys (Cu-Ni Alloys):
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.

3) High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
