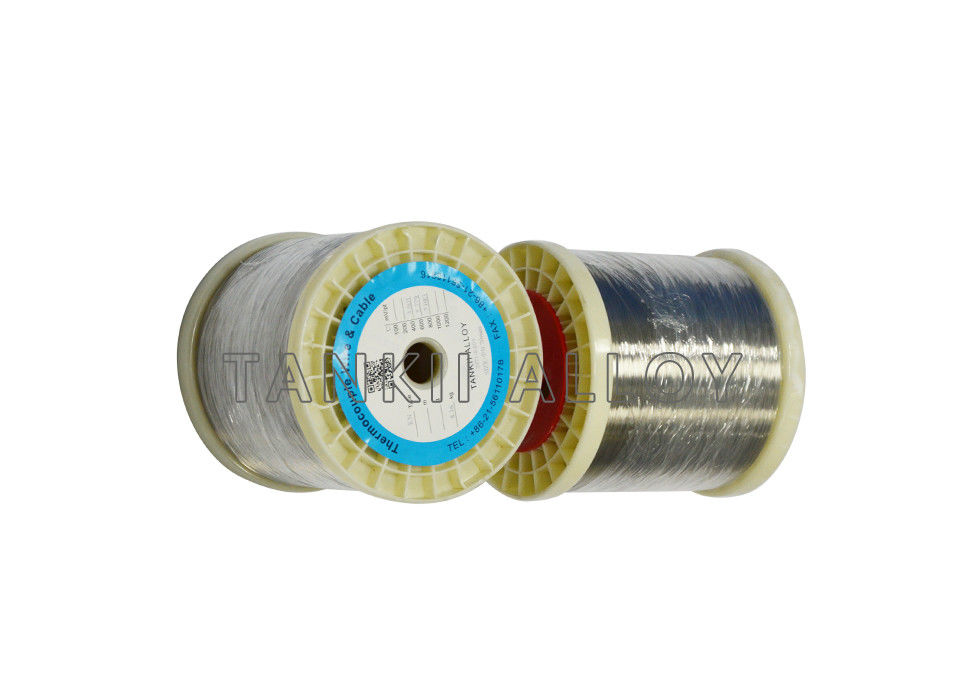

High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001

High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001

    • High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001
    • High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001
    • High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001
  • High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001: 2015
    Model Number: Type K

    Payment & Shipping Terms:

    Minimum Order Quantity: 50kg
    Price: Negotiation
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Standard: IEC ASTM... Type: Compensaing / Extension
    Insulation: Bare/ Insulated Feature: High Precision, EMF Certained

    All Types High Precision Thermocouple Bare Wire/ Thermocouple Compensating Extension Cable

    NiCr NiSi (Type K) thermocouple bare wire finds the widest use in all base metal thermocouple, at temperature above 500°C.The main chemical composition of positive leg NiCr (KP) are Ni≈90% and Cr≈10%; negative leg NiSi (KN) are Ni≈97% and Cr≈3%. The operating temperature range is -200~1300°C(for short term) and 0~1100°C( for long term).
    Type K thermocouple bare wire has strong resistance to oxidation than other base metal thermocouple bare wire. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
    (1) Alternatively oxidizing and reducing atmosphere,
    (2) Atmosphere with sulphur gases
    (3) Long time in vacuum
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere
    Fe-CuNi(Constantan) (Type J) thermocouple bare wire
    Fe-CuNi (type J) thermocouple bare wire is also named Fe- Constantan thermocouple bare wire. The positive leg Fe(JP) is made by pure Iron, and the main chemical composition of negative leg Constantan (JN) is Cu: Ni≈ 55%: 45%. Although they are all called Constantan, JN does not give the same EMF output curve as EN and TN, it cannot be instead by other Constantan.
    The operating temperature range of type J thermocouple bare wire is -210~1200°C, but it is usually used in the temperature range 0~750°C due to embrittlement of Iron.
    Type J thermocouple bare wire has good resistance to oxidation and high EMF output against Platinum 67, with good temperature accuracy, sensitivity and stability. It is recommended for vacuum, oxidizing, reducing or inert atmospheres, but it can not be used in sulphurous atmosphere above 500°C.
    NiCr-CuNi(Constantan) (Type E) thermocouple bare wire
    NiCr- CuNi (type E) thermocouple bare wire is also named NiCr- Constantan thermocouple bare wire. The main chemical composition of positive leg NiCr (EP) is Ni: Cr≈90:10; negative leg Constantan (EN) is Cu: Ni≈ 55%: 45%. Although EN, TN, JN are all called Constantan, EN and TN don not give the same EMF output curve as JN. EN and TN are able to interchange but they are not interchangeable with JN. The operating temperature range of type E thermocouple is -200~900°C.
    Type E thermocouple bare wire has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300°C, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.
    Nicrsi-NisiMg (Type N) thermocouple bare wire
    Nicrsi-NisiMg (Type N) thermocouple bare wireis the latest base metal thermocouple, developed to improve the drawbacks that type K thermocouple wire has. The main chemical composition of positive leg Nicrsi (NP) is Ni: Cr: Si≈84.4: 14.2: 1.4; negative leg NisiMg (NN) is Ni: Si: Mg≈95.5: 4.4: 0.1. Type N thermocouple also be used in the similar atmospheres that type K works, and the operating temperature range is -200~1300°C.
    Type N thermocouple bare wire improves the EMF drift and short term EMF change, compared to type K thermocouple bare wire, and has a longer life than type K thermocouple bare wire. Therefore, in the industries where temperature control and measurement are especially critical, type Nthermocouple bare wire has more advantages than other thermocouple wire as it has long life and stable thermal EMF.
    Cu-CuNi (Constantan) (Type T) thermocouple bare wire
    Cu-CuNi (type T) thermocouple bare wire is also named Cu- Constantan thermocouple wire. The positive leg Cu(TP) is made by pure Copper, and the main chemical composition of negative leg Constantan (TN) is Cu: Ni≈ 55%: 45%. Although EN, TN, JN are all called Constantan, TN and EN don not give the same EMF output curve as JN. EN and TN are able to interchange but they are not interchangeable with JN. The operating temperature range of type T thermocouple wire is -200~350°C, Due to the low resistance of oxidation that Copper has, it is not advisable to go beyond that range.
    Type T thermocouple bare wire has good resistance to oxidation, high EMF output, with good temperature accuracy, sensitivity and stability. In the temperature range -200~0°C, it has better property, the year stability is less than ±3μV


    Fundamental Parameter:


    GradeIECASTMDINGOST
    KCromel-AlumelCromel-AlumelCromel-AlumelCromel-Alumel
    NNicrosil-NisilNicrosil-NisilNicrosil-NisilNicrosil-Nisil
    ECromel-ConstantanCromel-ConstantanCromel-ConstantanCromel-Constantan
    JIron-ConstantanIron-ConstantanIron-ConstantanIron-Constantan
    TCopper-ConstantanCopper-ConstantanCopper-ConstantanCopper-Constantan
    BPtRh30-PtRh6PtRh30-PtRh6PtRh30-PtRh6PtRh30-PtRh6
    RPtRh13-PtPtRh13-PtPtRh13-PtPtRh13-Pt
    SPtRh10-PtPtRh10-PtPtRh10-PtPtRh10-Pt
    RC/SCCu-CuNi (Copper-Coppernickel)Cu-CuNi (Copper-Coppernickel)Cu-CuNi (Copper-Coppernickel)Cu-CuNi (Copper-Coppernickel)
    KXCromel-AlumelCromel-AlumelCromel-AlumelCromel-Alumel
    NXNicrosil-NisilNicrosil-NisilNicrosil-NisilNicrosil-Nisil
    EXCromel-ConstantanCromel-ConstantanCromel-ConstantanCromel-Constantan
    JXIron-ConstantanIron-ConstantanIron-ConstantanIron-Constantan
    TXCopper-ConstantanCopper-ConstantanCopper-ConstantanCopper-Constantan



    High Precision Thermocouple Bare Wire Thermocouple Compensating Cable ISO9001
