Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2015

Model Number: Type J

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

thermocouple lead wire

,

high temperature thermocouple wire

Size:
Customized
Material:
Fe-Constantan
Bobbin Size:
Accquired
Insulation:
PE/PVC/SILICONE/GLASS FIBER
Types Provided:
T,K,S,B,R,E...
Colour:
Standard
Size:
Customized
Material:
Fe-Constantan
Bobbin Size:
Accquired
Insulation:
PE/PVC/SILICONE/GLASS FIBER
Types Provided:
T,K,S,B,R,E...
Colour:
Standard
Description
Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement

High Precision Thermocouple Type J Wire Fe-CuNi Extension Wire

Thermocouple Extension & Compensation Wire


There are multiple types and grades of thermocouple wire.Each type of thermocouple wire has a specific combination of metal alloys.This combination is what defines the type of thermocouple.Thermocouple grade wire is used to manufacture thermocouple probes.Thermocouple grade wire is normally used for the junction and inside the stem sheath.



Code
+Positive leg
-Negative leg
N
Ni-Cr-Si(NP)
Ni-Si-Mg(NN)
K
Ni-Cr-Si(KP)
Ni-Al(KN)
E
Ni-Cr(EP)
Cu-Ni<constantan>(EN)
J
Iron(JP)
Cu-Ni<constantan>(JN)
T
Copper(TP)
Cu-Ni<constantan>(TN)
B
Platinum Rhodium-30%
Platinum Rhodium-6%
R
Platinum Rhodium-13%
Platinum
S
Platinum Rhodium-10%
Platinum




The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.


The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).

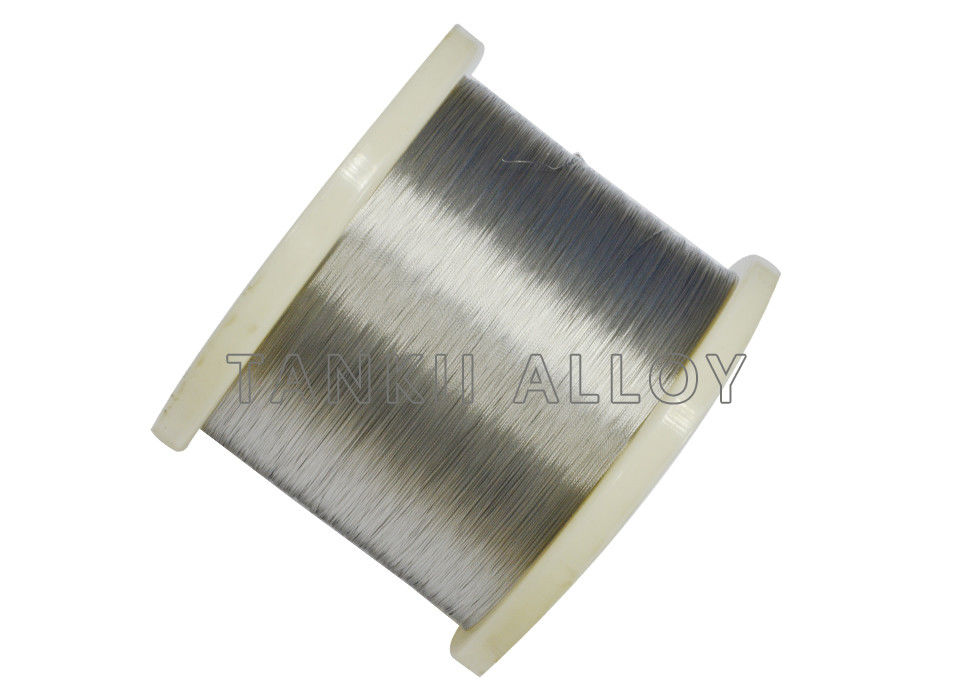

Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement 0
Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement 1

Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement 2

Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement 3

Customized Size Thermocouple Bare Wire Type J Wire For Temperature Measurement 4
