0Cr21Al4 Fecral Alloy Resistance Wire Antioxidant Treatment 0.023 - 0.8 Mm Thickness

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2015

Model Number: 0Cr21Al4

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: Negotiated

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Chemical Composition:
Iron Chromium Aluminium
Power Value:
Client´s Requirements
Size:
Customized
Feature:
Heat Resistant
Chemical Composition:
Iron Chromium Aluminium
Power Value:
Client´s Requirements
Size:
Customized
Feature:
Heat Resistant
Description

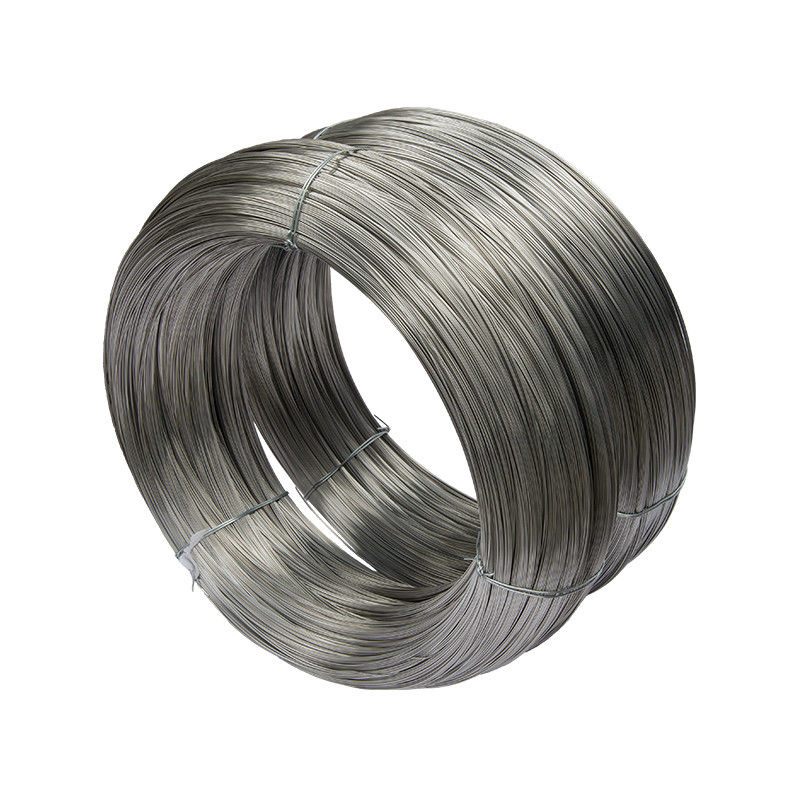

0Cr21Al4 Fecral Alloy Resistance Wire Antioxidant Treatment 0.023 - 0.8 Mm Thickness

0Cr21Al4 Ferro Chromium Aluminium Alloy High Heating Resistance Alloy Wire in Big Coils For Resistor


Description

Product forms and size range
Round wire
0.010-12 mm (0.00039-0.472 inch) other sizes are available on request.
Ribbon (flat wire)
Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickness ratio max 60, depending on alloy and tolerance
Other sizes are available on request.
Resistance electric heating wire has strong antioxidant properties, but a variety of gases in furnaces such as air, carbon, sulfur, hydrogen and nitrogen atmosphere, still have a certain impact on it.
Although these heating wires all have had antioxidant treatment, the transportation, winding, installation and other process will cause damage to a certain extent and reduce its service life.
In order to extend the service life, customers need to do pre oxidation treatment before using. The method is to heat alloy elements which have installed completely in the dry air to the temperature (lower 100-200C than its maximum using temperature), heat preservation for 5 to 10 hours, then cooling slowly with furnace.

Features and advantages
1. High using temperature, the maximum using temperature can reach 1400C (0Cr21A16Nb, 0Cr27A17Mo2, etc.)
2. Low temperature coefficient of resistance
3. Lower thermal expansion coefficient than the Ni-base super-alloys.
4. High electrical resistivity
5. Good corrosion resistance under high temperature, especially under the atmosphere containing sulfides
6. High surface load
7. Creep-resistant
8. Lower raw-material cost, Lower density and cheaper price compared with Nichrome wire.
9. Superior oxidation resistance at 800-1300ºC
10. Long service life

Main characteristics of Fe-Cr-Al- high resistances electric heating alloys

Brand name1Cr13Al40Cr25Al50Cr21Al60Cr23Al50Cr21Al40Cr21Al6Nb0Cr27Al7Mo2
Main chemical composition%Cr12.0-15.023.0-26.019.0-22.022.5-24.518.0-21.021.0-23.026.5-27.8
Al4.0-6.04.5-6.55.0-7.04.2-5.03.0-4.25.0-7.06.0-7.0
REopportune
amount
opportune
amount
opportune
amount
opportune
amount
opportune
amount
opportune
amount
opportune
amount
FeRestRestRestRestRestRestRest
      Nb0.5Mo1.8-2.2
Max.continuous
service temp.of
element (ºC)
950125012501250110013501400
Resistivity
μΩ.m,20ºC
1.251.421.421.351.231.451.53
Density
(g/cm3 )
7.47.107.167.257.357.107.10
Thermal
conductivity
KJ/m.h.ºC
52.746.163.260.246.946.145.2
Coefficient of
lines expansion
α×10-6/ºC
15.416.014.715.013.516.016.0
Melting pointºC1450150015001500150015101520
Tensile strength
Mpa
580-680630-780630-780630-780600-700650-800680-830
Elongation at
rupture %
>16>12>12>12>12>12>10
Variation of
area %
65-7560-7565-7565-7565-7565-7565-75
Repeat bending
frequency(F/R)
>5>5>5>5>5>5>5
Hardness(H.B.)200-260200-260200-260200-260200-260200-260200-260
Micrographic
structure
FerriteFerriteFerriteFerriteFerriteFerriteFerrite
Magnetic
properties
MagneticMagneticMagneticMagneticMagneticMagneticMagnetic


Fe-Cr-Al alloy wires are made of iron chromium aluminum base alloys containing small amounts of reactive elements such as yttrium and zirconium and produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.
The high aluminum content, in combination with the high chromium content let the scaling temperature can reach to 1425ºC (2600ºF);
Fe-Cr-Al wire was shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon(strip).

Application
Our products (FeCrAl) high resistance electric heating wire materials are salable and widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliances, glass and other civil or industrial fields.
