Product Details:
|
| Material: | NiCr Wire | Surface: | Enamelled Color |
|---|---|---|---|
| Diameter: | 0.02mm~1.0mm | Grade: | NiCr1560 |
| Enamelled Type: | 155 Centigrade C | MOQ: | 5kg Per Size |
| Insulation Material: | Polyester | Leading Time: | 10-15 Days |
| Payment: | 100% Payment In Advance | Wire Color: | Custom Made |
| Highlight: | enamelled copper wire,enamel magnet wire |
||

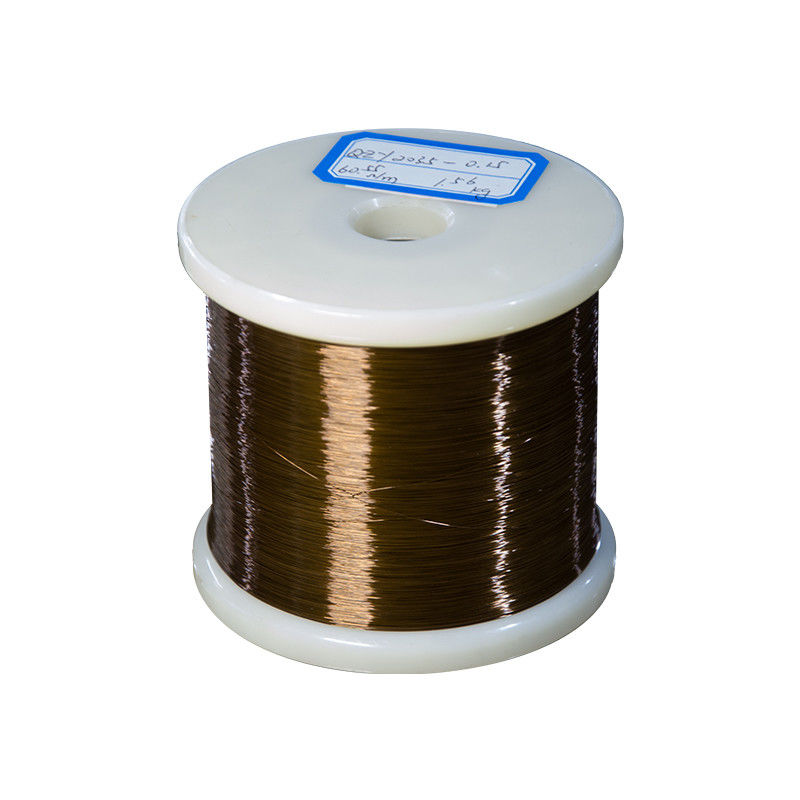

Enamelled resistance heating nichrome nickel-chrome Nichrome Wire Polyurethane With High Temperature
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
