Shanghai Tankii Alloy Material Co.,Ltd
First Quality, Sincere Service
Place of Origin: | Shanghai, China |
Brand Name: | TANKII |
Certification: | ISO9001:2008 |
Model Number: | CuNi44 |
Minimum Order Quantity: | 10 kg |
---|---|
Price: | To negotiate |
Packaging Details: | Spool, coil, carton, plywood case with plastic film according to client's requirements |
Delivery Time: | 7-12 days |
Payment Terms: | L/C, T/T, Western Union, Pyapal |
Supply Ability: | 30+TON+MONTH |
Usage: | Electrical Industry Like Handset, Acostics | Conductor: | CuNi Wire |
---|---|---|---|
Type: | Insulated | Standard: | GB/JIS/DIN/ASTM |
Insulation Material: | Enamelled | Port: | Shanghai, China |

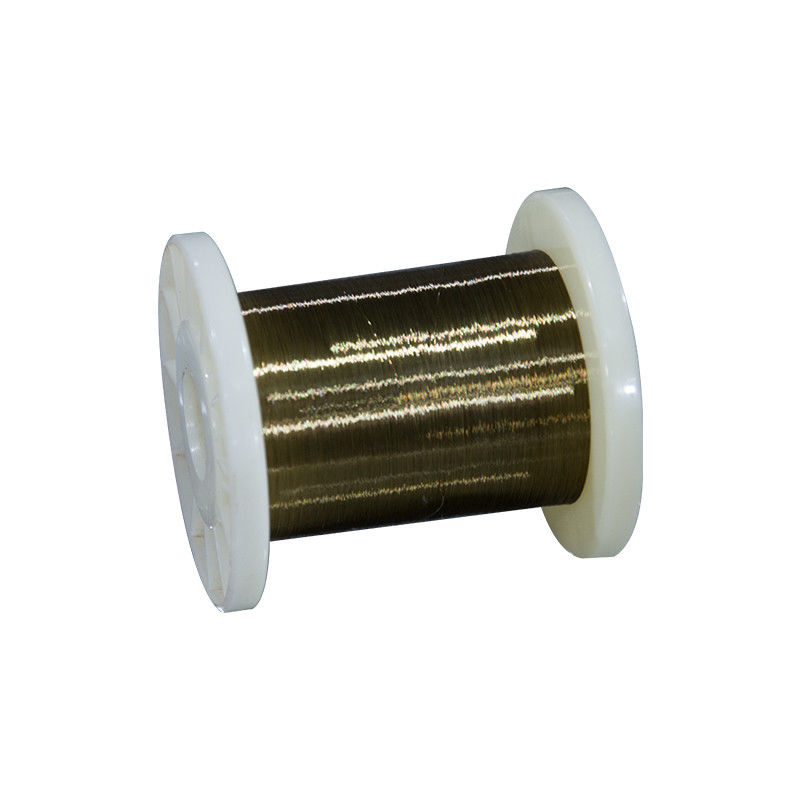

Enamelled Resistor Constantan/CuNi44 Alloy Wire Round Parallel Enamelled Wire Insulated Type For Cable Wire
Constantan cables, with moderate resistance, low thermal coefficient and a flat resistance / tempuratura, have a wider range than the "manganins". It also shows a better resistance to corrosion than the last one. The use tends to be limited to the AC circuit.
Constantan cables is also the negative element of the model J thermocouple with the positovo, iron, model J is used in heating treatment applications. In addition, it is the negative element of the thermocouple T with the positive copper of OFHC, model T is used in the cryogenic temperature.
Type Of Bare Alloy Wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~2.5mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*5mm
Moq:5kg each size
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of Insulation
Insulation-enamelled Name |
Thermal Level℃ (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
Polyester enamelled wire | 155 | PEW | QZ | MW5C |
Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
Polyester-imide and polyamide-imide double coated enameled wire | 200 |
EIWH (DFWF) |
QZY/XY | MW35C |
Polyamide-imide enamelled wire | 220 | AIW | QXY |
MW81C |
