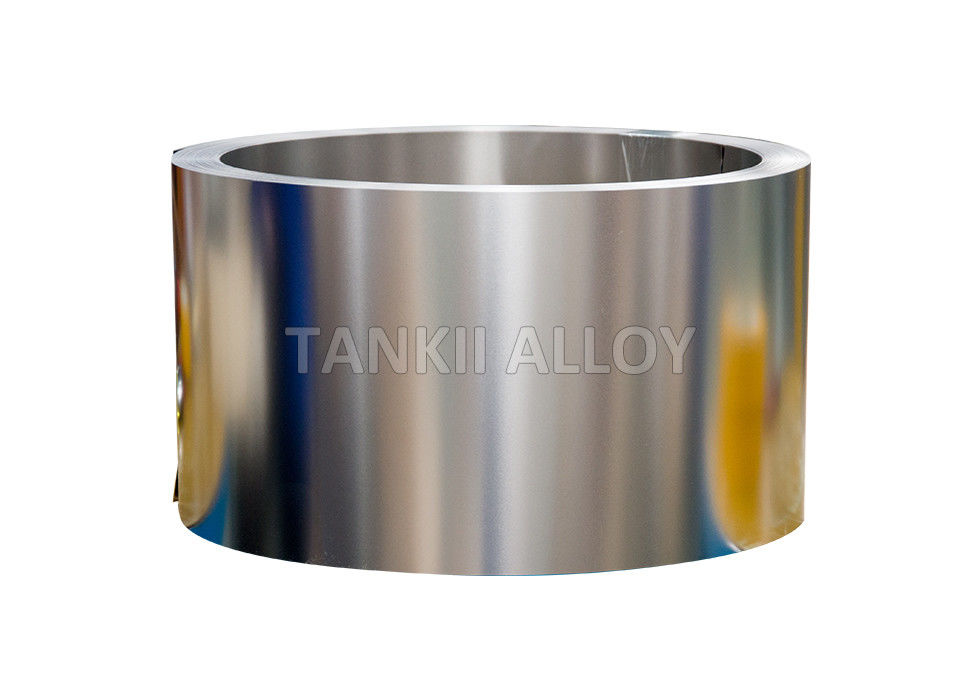

Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm

Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm

    • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
    • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
    • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
    • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
    • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
    • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
  • Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO
    Model Number: Constantan

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Packaging Details: Strip/Wire/Ribbon diameter 0.005mm-1.0mm packing in spool, big than 1.50mm packing in coil
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 20,000kg/Week
    Contact Now
    Detailed Product Description
    State: Soft Annealled Or Hard Sample Supply: Small Sample Supply Is Available
    Conductor Material: Solid Bare Copper Chemical Composition: Cu, Mn, Ni
    Constantan Resistivity: 0.48±0.03 Constantan Max. Working Temp: ≤500
    High Light:

    soft magnetic alloy

    ,

    precision tubing

    ,

    kovar alloy

    CuNi40 Cuprothal 294 Copper Nickel Alloy Constantan Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm

     Copper nickel alloy includes : Constantan CuNi40 (6J40), CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19,

    CuNi23CuNi30, CuNi34, CuNi44.



    1. Constantan

    Product Details:
    Grade: 6J40 also known as cuni40
    Nature: With 40% nickel, 1.5% copper manganese alloy



    Constantan is a type of resistance alloy, which is made up of copper and nickel as the main components.

    It has a low temperature coefficient of resistance (TCR), and a wide operating temperature range (below 500°C). It

    has good properities on mechanical working, high resistance of corrosion. It is used for variable and strain resistance

    of corrosion. It is used for variable and strain resisitance elements in alternative instruments.



    Our products have the following features: Stable performance, high resistivity, high working temperature, allowable high surface load, small specific gravity and reasonable price.



    2. constantan dimension available



    Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
    Strip: 0.005*5.0-5.0*250mm
    Bars: OD 4-100mm



    3. Chemical composition and main properties of constantan





    Name

    Code

    Main Composition (%)

    Density

    (g/mm2)

    Cu

    Mn

    Ni

    Cr

    Constantan

    6J40

    Bal.

    1-2

    39-41

    -

    8.9







    Type

      (20º C )

    Resistivity

    (μ Ω. M)

       (20º C )

    Temp. Coff.

    of

    Resistance

    (α×10-6/°C)

    (0-100º C )

    Thermal EMF

    vs. Copper

    (μV/º C  )



        Max.

    Working

    Temp.(º C )



    Elongation

    (%)

    Tensile

    Strength

    (Mpa)

    Constantan

    6J40

    0.48 ±0.03

    +40

    45

    ≤500

    ≥15

    ≥390



    Charact

    eristic

    Resistivity

    ( 200C μΩ.m)

    Max.working

    Temperature

    ( 0C)

    Tensile

     Strength

     (Mpa)

    Melting

    point

    (0C)

    Density

    ( g/cm3)

    TCR x10-6/

     0C (20~600

     0C)

    EMF vs Cu

     (μV/ 0C)

    (0~100 0C)

    Alloy

    Nomenc

    lature

    NC003 (CuNi1)

    0.03

    200

    210

    1085

    8.9

    <100

    -8

    NC005 (CuNi2)

    0.05

    200

    220

    1090

    8.9

    <120

    -12

    NC010 (CuNi6)

    0.1

    220

    250

    1095

    8.9

    <60

    -18

    NC012 (CuNi8)

    0.12

    250

    270

    1097

    8.9

    <57

    -22

    NC015 (CuNi10)

    0.15

    250

    290

    1100

    8.9

    <50

    -25

    NC020 (CuNi14)

    0.2

    300

    310

    1115

    8.9

    <30

    -28

    NC025 (CuNi19)

    0.25

    300

    340

    1135

    8.9

    <25

    -32

    NC030 (CuNi23)

    0.3

    300

    350

    1150

    8.9

    <16

    -34

    NC035 (CuNi30)

    0.35

    350

    400

    1170

    8.9

    <10

    -37

    NC040 (CuNi34)

    0.4

    350

    400

    1180

    8.9

    0

    -39

    NC050 (CuNi44)

    0.5

    400

    420

    1200

    8.9

    <-6

    -43



    4. cuni resistance alloy application



    CuNi alloy wires and strip typically used in heating cables, fuses, resistors and various types of controllers, electric car controller, the

    instruments and meters, the integrated circuit, the sample electric current, the resistor. And low pressure resistance and so on.

    Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm



    Resistance Alloy- Constantan Sizes / Temper Capabilities

    1; Condition: Bright, Annealed, Soft
    2; Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
    3; Rod, Bar diameter 1mm-30mm
    4; Strip: Thickness 0.05mm-7mm, Width 1mm-280mm

    Cuprothal 294 Precision Alloy Copper Nickel Alloy Strip CuNi40 / CuNi44 Constant Size 0.005mm * 100mm
