45CT Metal Spray Wire Arc Flame Spray Wire Corrosive Resistant Coil High Performance

45CT Metal Spray Wire Arc Flame Spray Wire Corrosive Resistant Coil High Performance

45CT Metal Spray Wire Arc Flame Spray Wire Corrosive Resistant Coil High Performance

Product Details:

Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: 45CT

Payment & Shipping Terms:

Minimum Order Quantity: 15kg
Price: Negotiation
Packaging Details: carton,spool,coil
Delivery Time: depends on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 2000kg / week
Contact Now
Detailed Product Description
Name: 45CT Material: NiCrTi Alloy
Size: 1.6mm 2.0mm 3.17mm Shape: Wire
Color: Bright Delivery: Depends On Quantity
Package: Coil Or Spool

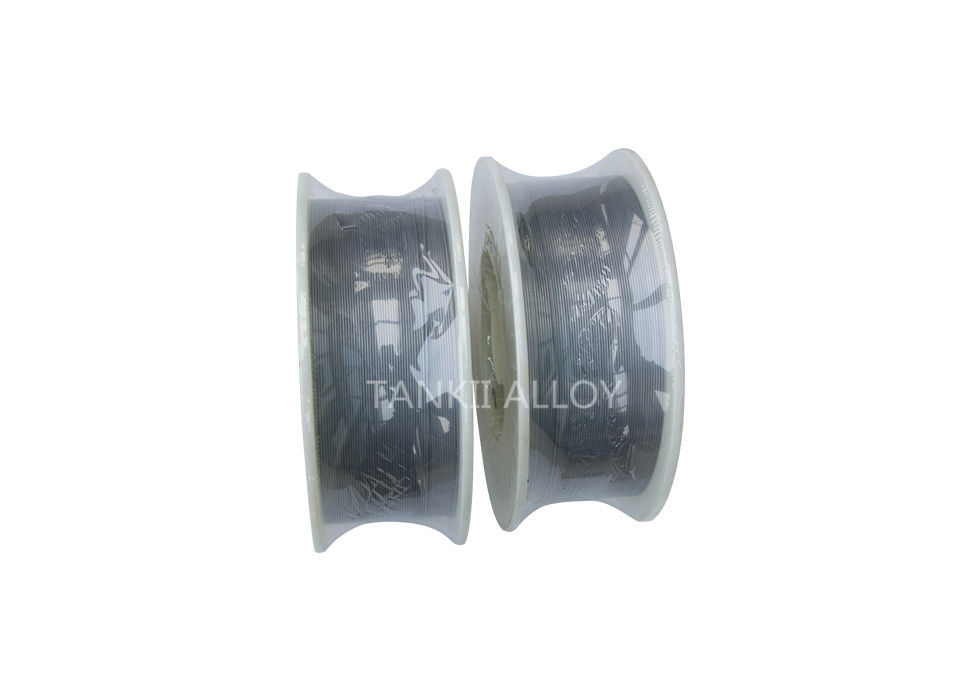

NiCrTi 45CT NiCrTi alloy wire thermal spray wire used in arc and flange flame spray systems



NiCrTi/45CT wire is a Nickel/Chrome/Titanium wire developed specifically for boiler applications. This second generation material replaces 06BXP and produces coatings which are extremely resistant to corrosive vanadium and sulfur gases in boiler atmospheres.



Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation.

The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F.

Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers.

Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service

Normal composition%


Cr
Ni C Mn Fe S Si Cu Ti P Other
42-46 Bal. 0.01-0.1 ≤0.2 ≤0.5 ≤0.015 ≤0.2 ≤0.5 0.3-1.0 ≤0.02 ≤0.5


Typical Deposit Characteristics

Coating Harness Coating Strength Yield Strength Elongation
45 HRC 48Mpa 295Mpa ≤22%




Specific heat capacity
Melting point (ºC) 1450
Max continuous operating temperature in air (ºC) 1250
Magnetic properties non-magnetic
