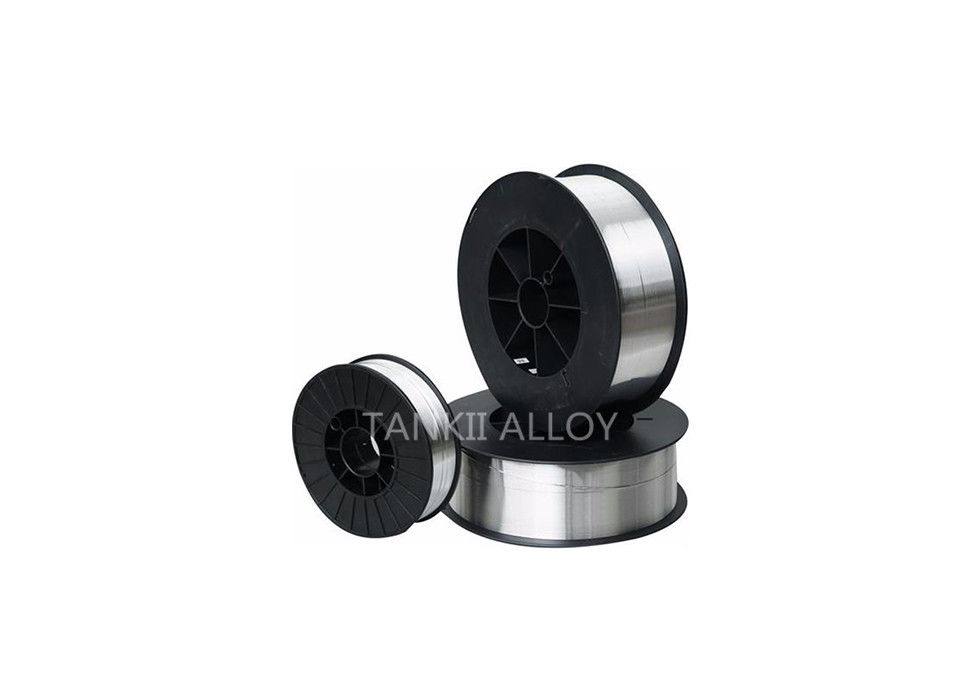

Wrought Material NiCrTi Precision Alloy Coating Wire For Boiler Tubes Oxidation Resistance

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: 45CT

Payment & Shipping Terms

Minimum Order Quantity: 15kg

Price: Negotiation

Packaging Details: carton,spool,coil

Delivery Time: depends on the quantity

Payment Terms: T/T, Western Union

Supply Ability: 2000kg / week

Get Best Price
Contact Now
Specifications
Highlight:

high heat wire

,

low voltage heating wire

Name:
45CT
Material:
NiCrTi Alloy
Size:
1.6mm 2.0mm 3.17mm
Shape:
Wire
Color:
Bright
Delivery:
Depends On Quantity
Package:
Coil Or Spool
Name:
45CT
Material:
NiCrTi Alloy
Size:
1.6mm 2.0mm 3.17mm
Shape:
Wire
Color:
Bright
Delivery:
Depends On Quantity
Package:
Coil Or Spool
Description
Wrought Material NiCrTi Precision Alloy Coating Wire For Boiler Tubes Oxidation Resistance

NiCrTi 45CT NiCrTi alloy wire thermal spray wire coating wire for boiler tubes





Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation.

The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F.

Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers.

Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).

Normal composition%


Cr
Ni C Mn Fe S Si Cu Ti P Other
42-46 Bal. 0.01-0.1 ≤0.2 ≤0.5 ≤0.015 ≤0.2 ≤0.5 0.3-1.0 ≤0.02 ≤0.5



This alloy is a nickel aluminium titanium alloy characterized strong resistance to high temperature corrosion oxidation.

Typical applications for 45CT are widely used in combustion furnace,Boiler water wall tube, fan blade.




Typical Deposit Characteristics

Coating Harness Coating Strength Yield Strength Elongation
45 HRC 48Mpa 295Mpa ≤22%




Specific heat capacity



Melting point (ºC) 1450
Max continuous operating temperature in air (ºC) 1250
Magnetic properties non-magnetic
