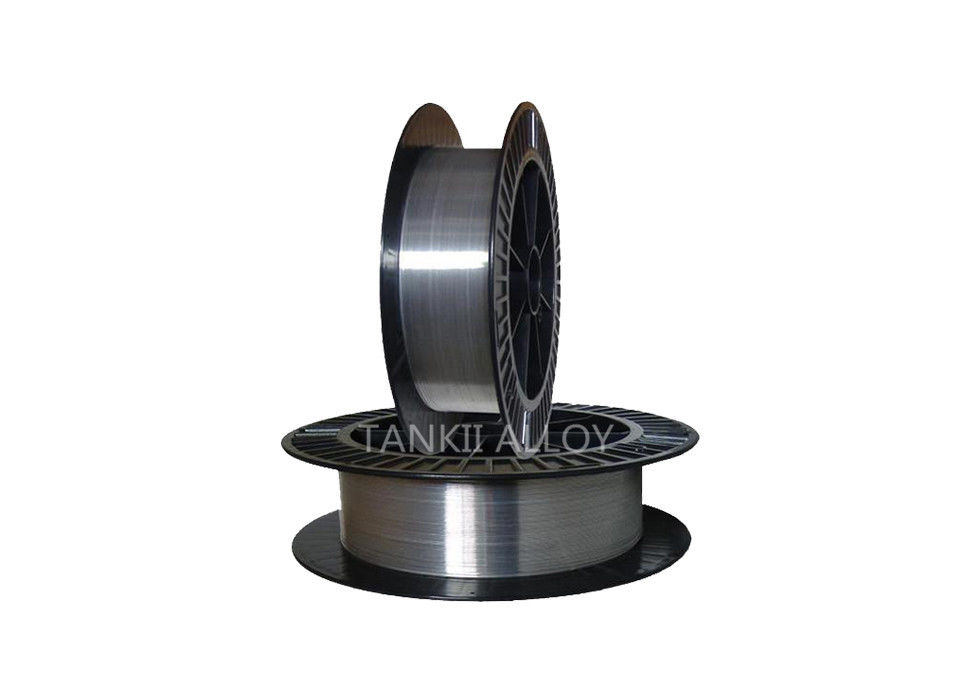

1.6mm 2.0mm 3.17mm Heating Resistance Wire Spool Alloy Wire For Furnace / Boiler

1.6mm 2.0mm 3.17mm Heating Resistance Wire Spool Alloy Wire For Furnace / Boiler

    • 1.6mm 2.0mm 3.17mm Heating Resistance Wire Spool Alloy Wire For Furnace / Boiler
    • 1.6mm 2.0mm 3.17mm Heating Resistance Wire Spool Alloy Wire For Furnace / Boiler
  • 1.6mm 2.0mm 3.17mm Heating Resistance Wire Spool Alloy Wire For Furnace / Boiler

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: 45CT

    Payment & Shipping Terms:

    Minimum Order Quantity: 15kg
    Price: Negotiation
    Packaging Details: carton,spool,coil
    Delivery Time: depends on the quantity
    Payment Terms: T/T, Western Union
    Supply Ability: 2000kg / week
    Contact Now
    Detailed Product Description
    Name: 45CT Material: NiCrTi Alloy
    Size: 1.6mm 2.0mm 3.17mm Shape: Wire
    Color: Bright Delivery: Depends On Quantity
    Package: Coil Or Spool

    NiCrTi 45CT thermal spray wire spool alloy wire for furnace,Boiler water wall tube, fan blade.

    Normal composition%


    Cr
    Ni C Mn Fe S Si Cu Ti P Other
    42-46 Bal. 0.01-0.1 ≤0.2 ≤0.5 ≤0.015 ≤0.2 ≤0.5 0.3-1.0 ≤0.02 ≤0.5



    This alloy is a nickel aluminium titanium alloy characterized strong resistance to high temperature corrosion oxidation.

    Typical applications for 45CT are widely used in combustion furnace,Boiler water wall tube, fan blade.



    Typical Uses and Applications:
    This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation.

    The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F.

    Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers.

    Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).




    Typical Deposit Characteristics

    Coating Harness Coating Strength Yield Strength Elongation
    45 HRC 48Mpa 295Mpa ≤22%




    Specific heat capacity



    Melting point (ºC) 1450
    Max continuous operating temperature in air (ºC) 1250
    Magnetic properties non-magnetic
