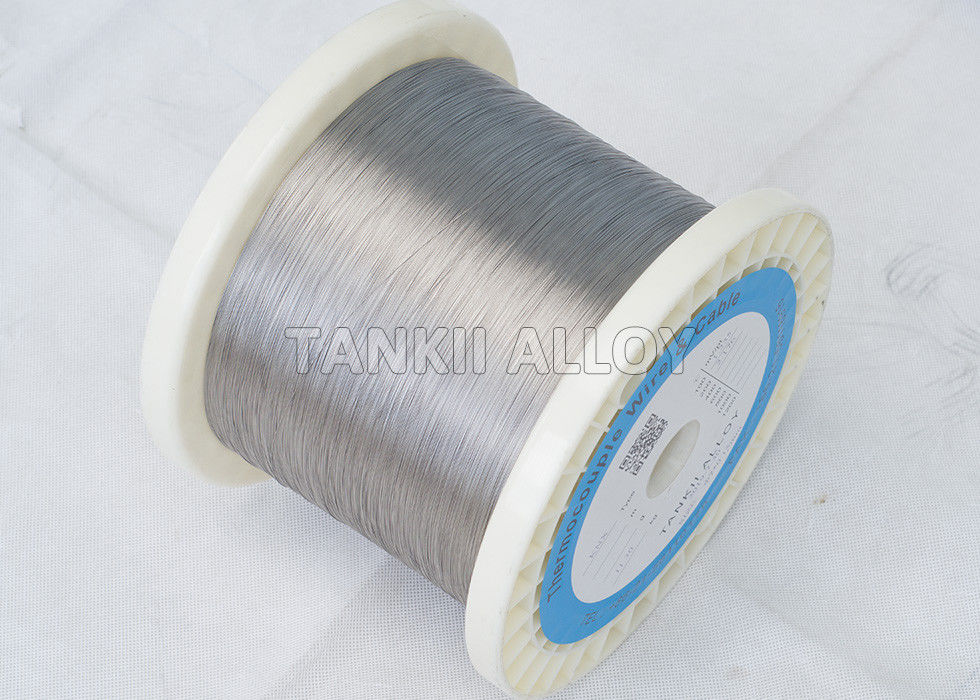

KX Stranded Thermocouple Bare Wire IEC Class I Bright For Thermocouple Cable

KX Stranded Thermocouple Bare Wire IEC Class I Bright For Thermocouple Cable

KX Stranded Thermocouple Bare Wire IEC Class I Bright For Thermocouple Cable

Product Details:

Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: KX

Payment & Shipping Terms:

Minimum Order Quantity: 10kg per leg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Contact Now
Detailed Product Description
Material: NiCr -NiSi Surface: Bright
Diameter: 7*0.15mm Wire Type: Stranded Wire
Insulation: No Wire Class: IEC Class I
Leading Time: 5~10 Days After Getting The Payment Application: Thermocouple,temperature Measurement
Standard: ANSI,IEC584


KX Stranded Thermocouple Extension Wire With IEC60584 Class 2 Used For Thermocouple Cable

Shanghai tankii, specializing in producing thermocouple wire, thermocouple cable, thermocouple MI cable.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



Tankii Type K thermocouple is composed of a Nickel-10% chromium (+) wire versus a nickel-5% aluminum and silicon (-) wire. This type of thermocouple should only be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). They are most widely used at temperatures above 540'C (1000"F) due to superior oxidation resistance in comparison to Types E, T, or J. There are some conditions which should be avoided when using Type K thermocouples. Vacuum applications should not use Type K due to vaporization of chromium in the positive element. Tankii Type K thermocouples should not be used in Sulfurous environments since both elements will rapidly corrode and the negative element will eventually fail mechanically due to becoming brittle. Reducing atmospheres should also be avoided. Low oxygen levels can cause the Green-Rot phenomenon in which the chromium in the elements starts to oxidize causing large negative drifts in calibration.



KX Stranded Thermocouple Extension Wire With IEC60584 Class 2 Used For Thermocouple Cable

Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1and IEC-2.


Tankii Thermocouple strips, thermocouple connectors are available.
Tankii KX, JX, TX KC, RC,EX wire with class 1 and 2 are available.

Application Range of Tankii  thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation

KX Stranded Thermocouple Extension Wire With IEC60584 Class 2 Used For Thermocouple Cable

Tankii Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B600~1700


PtRh13-Pt

R0~1600


PtRh10-Pt

S0~1600


NiCr-NiSi

K-200~1300


NiCr-CuNi (constantan)

E-200~900


Fe-CuNi (constantan)

J-40~750


Cu-CuNi (constantan)

T-200~350


NiCrSi-NiSi

N-200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B600~1700±0.25% t
600~800±4
800~1700±0.5%t
Type R(S)0~1100±1
1100~1600±[1+(t-1100) ×0.3%]
0~600±1.5
600~1600±0.25% t
Type K and Type N-40~1100±1.5℃ or ±0.4%t
-40~1300±2.5℃ or ±0.75%t
-200~40±2.5℃ or ±1.5%t
Type E-40~1100±1.5℃ or ±0.4%t
-40~1300±2.5℃ or ±0.75%t
-200~40±2.5℃ or ±1.5%t
Type J-40~750±1.5℃ or ±0.4%t
-40~750±2.5℃ or ±0.75%t
Type T-40~350±0.5℃ or ±0.4%t
-40~350±1.0℃ or ±0.75%t
-200~40±1.0℃ or ±1.5%t


 KX Stranded Thermocouple Bare Wire IEC Class I Bright For Thermocouple Cable


 Delivery and Packing of thermocouple wire:

1. Packaging Details : DIN spools with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty


KX Stranded Thermocouple Extension Wire With IEC60584 Class 2 Used For Thermocouple Cable

KX Stranded Thermocouple Bare Wire IEC Class I Bright For Thermocouple Cable


Welcome to call me or email to me for more information on K type thermocouple wire, Thermocouple stranded wire , thermocouple  flat wire, thermocouple strip.
