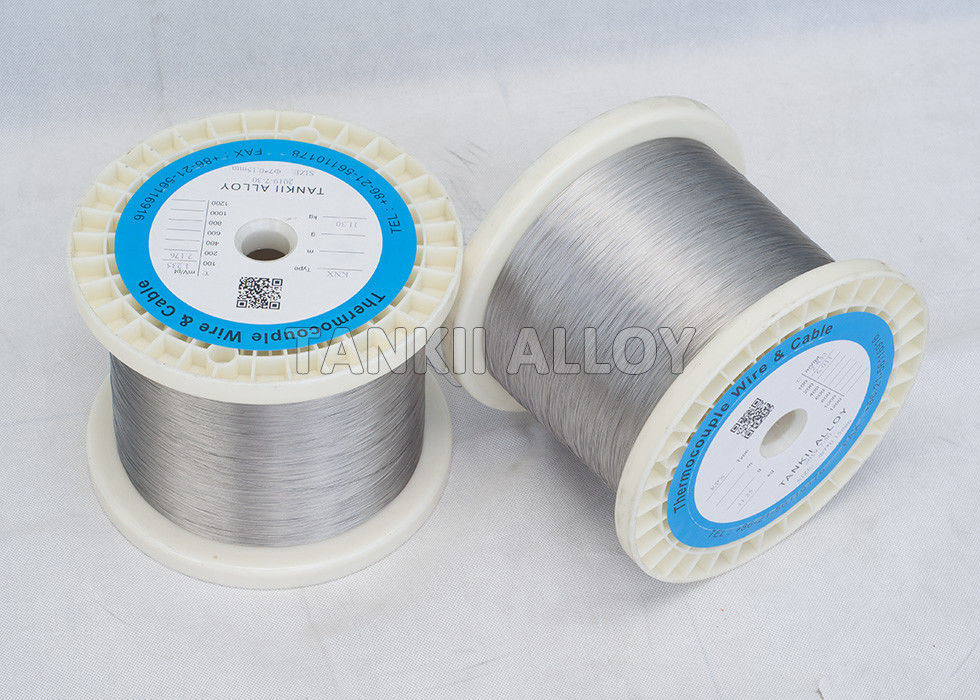

Energy Industry Thermocouple Bare Wire Stranded Wire High Performance ISO9001

Energy Industry Thermocouple Bare Wire Stranded Wire High Performance ISO9001

Energy Industry Thermocouple Bare Wire Stranded Wire High Performance ISO9001

Product Details:

Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: KX

Payment & Shipping Terms:

Minimum Order Quantity: 10kg per leg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Contact Now
Detailed Product Description
Material: NiCr -NiSi Surface: Bright
Diameter: 7*0.15mm Wire Type: Stranded Wire
Insulation: No Wire Class: IEC Class I
Leading Time: 5~10 Days After Getting The Payment


KX 7 Ends 0.15mm Bare Wire Stranded Wire 7/0.15mm For Aluminum Industry Thermocouple Sensors K


A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.





Tankii KX 7 Ends 0.15mm Bare Wire Stranded Wire 7/0.15mm For Aluminum Industry Thermocouple Sensors K



Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Tankii products conform to the standards of IEC584 -1and IEC-2.


Tankii Thermocouple strips, thermocouple connectors are available.

Application Range of Tankii  thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation

KX 7 Ends 0.15mm Bare Wire Stranded Wire 7/0.15mm For Aluminum Industry Thermocouple Sensors K

Tankii Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t



 Energy Industry Thermocouple Bare Wire Stranded Wire High Performance ISO9001




 Delivery and Packing of thermocouple wire:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty
Energy Industry Thermocouple Bare Wire Stranded Wire High Performance ISO9001


KX 7 Ends 0.15mm Bare Wire Stranded Wire 7/0.15mm For Aluminum Industry Thermocouple Sensors K

Welcome to call me or email to me for more information on N type thermocouple wire, stranded wire , flat wire, strip.
