Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2015
Model Number: 0Cr21Al4
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Price: Negotiated
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Material: |
0CR21AL4 |
Feature: |
High Resistance, Corrosion Resistance |
Shape: |
Round/ Square |
Use: |
Electric Furnace Heating |
Material: |
0CR21AL4 |
Feature: |
High Resistance, Corrosion Resistance |
Shape: |
Round/ Square |
Use: |
Electric Furnace Heating |

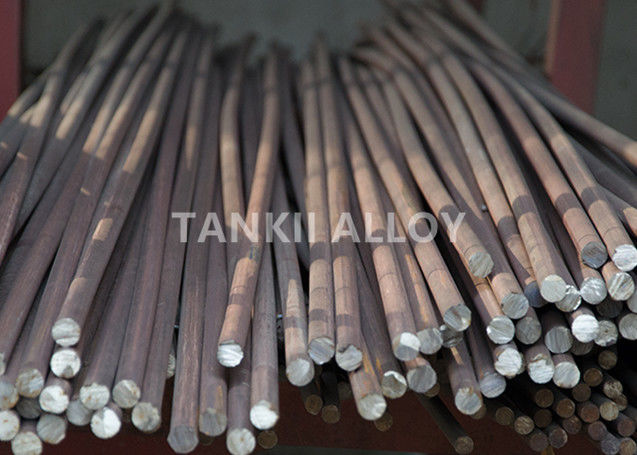

0Cr21Al4 Lead-out Round Bar/ Square Rod for Electric Furnace Application
Main characteristics of Fe-Cr-Al- high resistances electric heating alloys
| Brand name | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main chemical composition% | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| RE | opportune amount |
opportune amount |
opportune amount |
opportune amount |
opportune amount |
opportune amount |
opportune amount |
|
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Nb0.5 | Mo1.8-2.2 | |||||||
| Max.continuous service temp.of element (ºC) |
950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity μΩ.m,20ºC |
1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density (g/cm3 ) |
7.4 | 7.10 | 7.16 | 7.25 | 7.35 | 7.10 | 7.10 | |
| Thermal conductivity KJ/m.h.ºC |
52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | 45.2 | |
| Coefficient of lines expansion α×10-6/ºC |
15.4 | 16.0 | 14.7 | 15.0 | 13.5 | 16.0 | 16.0 | |
| Melting pointºC | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength Mpa |
580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at rupture % |
>16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area % |
65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat bending frequency(F/R) |
>5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Micrographic structure |
Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties |
Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
Features and advantages
1. High using temperature, the maximum using temperature can reach 1400C (0Cr21A16Nb, 0Cr27A17Mo2, etc.)
2. Low temperature coefficient of resistance
3. Lower thermal expansion coefficient than the Ni-base super-alloys.
4. High electrical resistivity
5. Good corrosion resistance under high temperature, especially under the atmosphere containing sulfides
6. High surface load
7. Creep-resistant
8. Lower raw-material cost, Lower density and cheaper price compared with Nichrome wire.
9. Superior oxidation resistance at 800-1300ºC
10. Long service life
Product forms and size range
Round wire
0.010-12 mm (0.00039-0.472 inch) other sizes are available on request.
Ribbon (flat wire)
Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickness ratio max 60, depending on alloy and tolerance
Other sizes are available on request.
Resistance electric heating wire has strong antioxidant properties, but a variety of gases in furnaces such as air, carbon, sulfur, hydrogen and nitrogen atmosphere, still have a certain impact on it.
Although these heating wires all have had antioxidant treatment, the transportation, winding, installation and other process will cause damage to a certain extent and reduce its service life.
In order to extend the service life, customers need to do pre oxidation treatment before using. The method is to heat alloy elements which have installed completely in the dry air to the temperature (lower 100-200C than its maximum using temperature), heat preservation for 5 to 10 hours, then cooling slowly with furnace.
Application
Our products (FeCrAl) high resistance electric heating wire materials are salable and widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliances, glass and other civil or industrial fields.
Description
Fe-Cr-Al alloy wires are made of iron chromium aluminum base alloys containing small amounts of reactive elements such as yttrium and zirconium and produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.
The high aluminum content, in combination with the high chromium content let the scaling temperature can reach to 1425ºC (2600ºF);
Fe-Cr-Al wire was shaped by means of high speed automatic cooling machine of which the power capacity is controlled by computer, they are available as wire and ribbon(strip).
Our Services
1. For all your requirements about us or your requiry, we will reply your details within 24 hours.
2. We have a good service, friendly sales and service who can speak fluente English language.
3. We provide OEM service, you can customize the retail box packing and other things
4.We have experienced engineers rhat can help you make better uses of the product.
