Annealed Nickel Based Alloy Flat Wire / Flat Ribbon High Resistance

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2015

Model Number: Ni60Cr15

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiated

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome wire

,

nichrome resistance wire

Size:
Customized Size
Grade:
Ni80Cr20, Ni60Cr15, Ni35Cr20...
Type:
Nickel Based Alloy
Alloy Or Not:
Yes
Powder Or Not:
No
Condition:
Annealed
Size:
Customized Size
Grade:
Ni80Cr20, Ni60Cr15, Ni35Cr20...
Type:
Nickel Based Alloy
Alloy Or Not:
Yes
Powder Or Not:
No
Condition:
Annealed
Description
Annealed Nickel Based Alloy Flat Wire / Flat Ribbon High Resistance

0.15mm*4mm NCHW-2 Standard Nickel Based Alloy Flat Wire/ Flat Ribbon/ Ribbon



1. Description
With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature.
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high Speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

2. Specification
1). Locomotive resistance strip:
Thickness: 0.6mm-1.5mm
Width: 60mm-90mm

2). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)

3). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm

4). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm

3. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

4. Packing detail
Spool, coil, wooden case(as per client's requirement)

5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.



Ability to add multiple features

We are capable of adding a variety of features to metallic materials

(resin coating, plating, bonding different kinds of metal, multigage skiving, etc.).


Unique technology and custom-made solutions

We provide customed solutions to your problems with our unique

technologies and well versed knowledge of materials acquired through

our experience of manufacturing 50,000 items.



Specification:

Alloy Type Diameter Resistivity Tensile Elongation
(%)
Bending Max.
Continuous
Working
Life
(mm) (μΩm)(20°C) Strength Times Service (hours)
(N/mm²)   Temperature
(°C)
Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
>3.0 1.14±0.05 850-950 >20 >9 1200 >20000
Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000

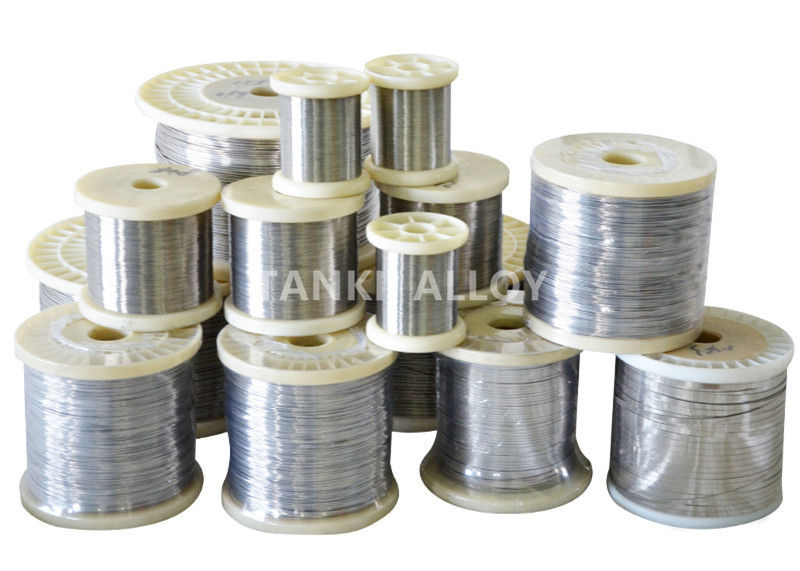

Annealed Nickel Based Alloy Flat Wire / Flat Ribbon High Resistance 0Annealed Nickel Based Alloy Flat Wire / Flat Ribbon High Resistance 1
