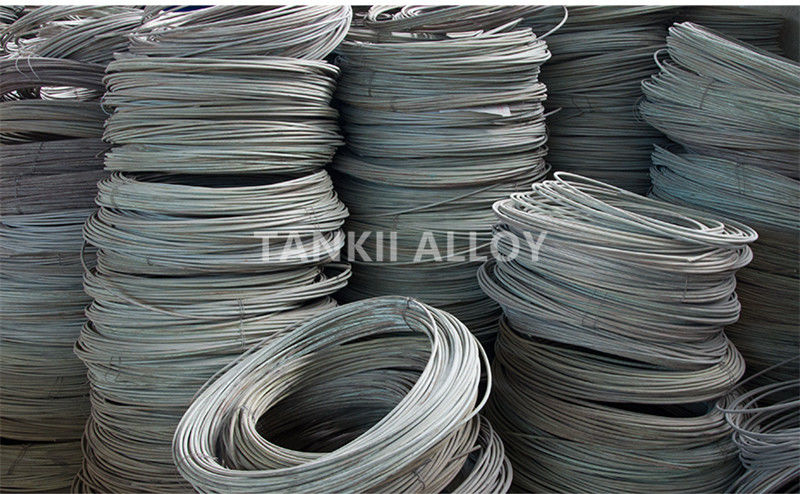

1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire

1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire

    • 1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire
    • 1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire
    • 1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire
    • 1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire
  • 1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001: 2015
    Model Number: Cr21Al4

    Payment & Shipping Terms:

    Minimum Order Quantity: 50kg
    Price: Negotiated
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: Cr21Al4 Colour: Acid White
    State: Soft Shape: Round Wire
    Feature: High Resistance, High Temperature Resistance

    1.6mm Cr21Al4 Fecral Alloy Wire Acid White Soft Heating Resistance Wire



    Specification:

    Alloy Type Diameter Resistivity Tensile Elongation
    (%)
    Bending Max.
    Continuous
    Working
    Life
    (mm) (μΩm)(20°C) Strength Times Service (hours)
    (N/mm²)   Temperature
    (°C)
    Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
    0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
    >3.0 1.14±0.05 850-950 >20 >9 1200 >20000
    Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
    ≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
    Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
    ≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
    Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
    ≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000
    1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
    0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
    0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
    0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
    0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
    1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
    0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
    0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5 1400 >8000





    1)Alloy grades:
    OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
    We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
    In the form of wire, ribbon/strip:
    Round Wire: Dia 0.04mm-8.0mm
    Ribbon/strip: Thickness: 0.04mm-0.75mm
    Width: 0.08mm-6.0mm

    2) Product Specifications:
    Ferro-Chrome Alloys (Ferritic Alloys):
    OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
    Nickel-Chrome Alloys (Ni-Cu Alloys):
    Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
    Constantan Alloys (Cu-Ni Alloys):
    CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.

    3) High quality assured:
    Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.

    4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
    5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
