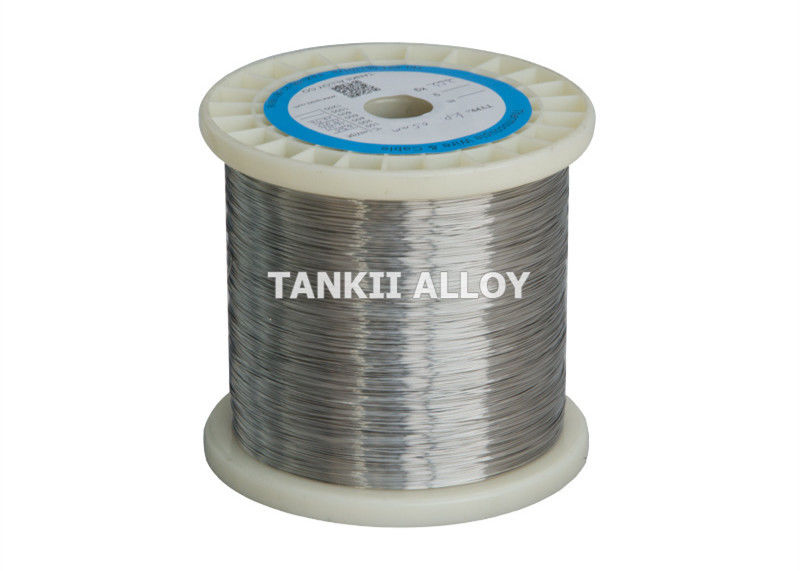

IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001

IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001

    • IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001
    • IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001
    • IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001
    • IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001
  • IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001: 2015
    Model Number: Type K

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg
    Price: Negotiation
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: NiCr-Nisil Sample: Available
    Insulation: Bare/ Insulated Colour: Optional
    Type: Stranded/ Solid

    High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire



    Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal "electromotive" force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



    The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

    Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).

    The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
    X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
    C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.


    NiCr-NiSi (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
    Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
    (1) Alternatively oxidizing and reducing atmosphere.
    (2) Atmosphere with sulphur gases.
    (3) Long time in vacuum.
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.







    Diameter/mm Long time Working Short period Working
    temperature/°C temperature/°C
    0.3 700 800
    0.5 800 900
    0.8,1.0 900 1000
    1.2,1.6 1000 1100
    2.0,2.5 1100 1200
    3.2 1200 1300

    IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001IEC Standard Type K J T Thermocouple Bare Wire Class I TC Wire ISO9001
