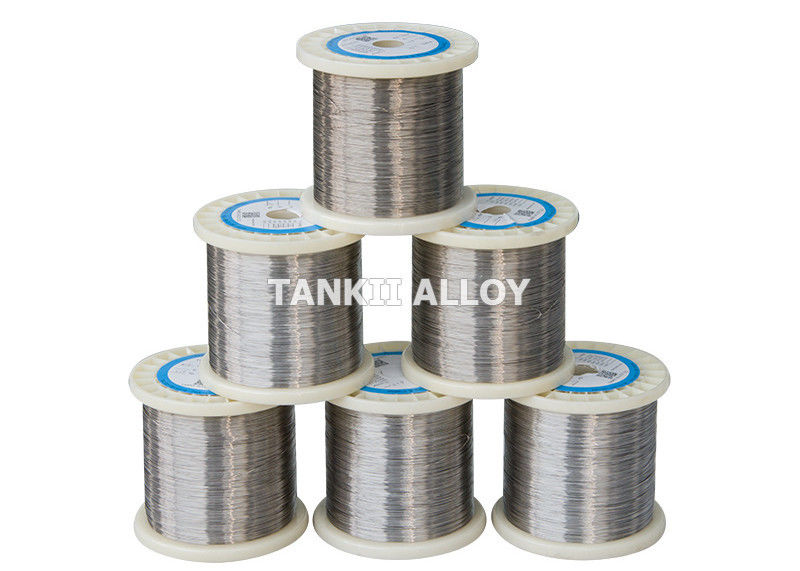

High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire Round Shape

High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire Round Shape

    • High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire Round Shape
    • High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire Round Shape
  • High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire Round Shape

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: TANKII
    Certification: ISO9001: 2015
    Model Number: Type K

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg
    Price: Negotiation
    Packaging Details: Spool, carton, plywod case with plastic film as clients required
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Material: NiCr-Nisil EMF: 200℃, 400℃...
    Shape: Round Type: Solid
    Grade: I/II/III Surface: Bright

    High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire



    Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal "electromotive" force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.

    NiCr-NiSi (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
    Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
    (1) Alternatively oxidizing and reducing atmosphere.
    (2) Atmosphere with sulphur gases.
    (3) Long time in vacuum.
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

    Detailed Parameter

    Chemical Composition for thermocouple wire

    Conductor Name

    Polarity

    Code

    Nominal Chemical Composition /%

    Ni

    Cr

    Si

    Ni-Cr

    Positive

    KP

    90

    10

    --

    Ni- Si

    Negative

    KN

    97

    --

    3





    High Precision Type K Thermocouple Alloy Wire 0.5mm KP KN Wire Round Shape
