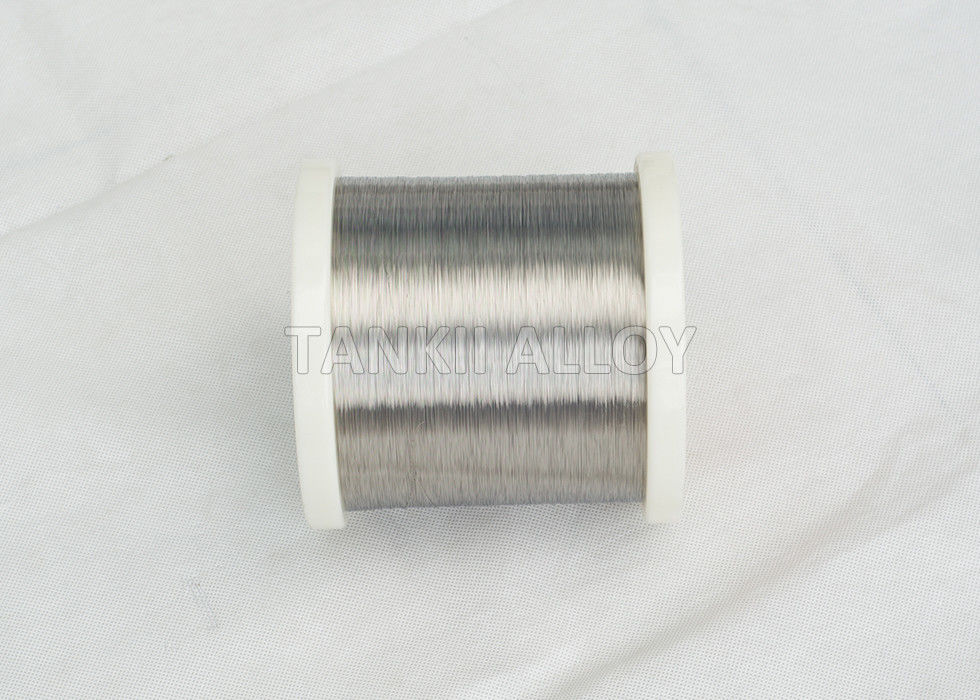

Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry

Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry

    • Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
    • Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
    • Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
    • Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
    • Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
  • Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: NICrSi- NiSiMg

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg per leg
    Price: Negotiation
    Packaging Details: Standard exoprt package in carton box or wooden box
    Delivery Time: 5-7 days after getting the payment
    Payment Terms: T/T, Paypal, Western Union, MoneyGram,
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Material: NICrSi- NiSiMg Surface: Bright
    Diameter: >0.1mm Wire Type: Single Wire
    Insulation: Customized Wire Class: IEC Class I , II
    Leading Time: 5~10 Days After Getting The Payment


    ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring

    Thermocouples can be used to measure temperature in many different applications from food preparation to smelting through to heavy chemical and power generation plants. The sensing probe can take a number of forms from bare wires to fully metal sheathed versions which can be inserted into the medium to be measured. The thermocouple effect can even be harnessed to create a low power generator by connecting multiple junctions in series in a heated environment. The individual thermocouple types have particular characteristics which make them suitable for different applications with varying temperature ranges and accuracies available. The increasing importance of lowering emissions in cars and industry is driving greater accuracy and longevity demands in automotive and process industries. Type N thermocouples in particular can be used to provide reliable temperature readings over a wide temperature range to ensure efficiencies are maximised and noxious gases minimised.



    NiCrSi thermocouple wire type N
    The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K. Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K. The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon.The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon.




    ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring

    Characteristics:
    The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

    Our products conform to the standards of IEC584 -1and IEC-2.


    Thermocouple strips, thermocouple connectors are available.

    Application Range of thermocouple wire:

    1. Aerospace and Composites
    2. Aluminum industry
    3. Food and Pharmaceutical
    4. Forgings
    5. Glass, Ceramics, Clay Tiles, Bricks
    6. Heat Treating
    7. Petroleum, Downhole Oil & Gas
    8. Sensor Manufacturing
    9. Steel industry
    10. Utilities Power Generation

    ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring

    Available Thermocouple Types and Temperature Range

    Thermocouple type and index


    Measurement Range

    Type


    Index



    PtRh30-PtRh6

    B600~1700


    PtRh13-Pt

    R0~1600


    PtRh10-Pt

    S0~1600


    NiCr-NiSi

    K-200~1300


    NiCr-CuNi (constantan)

    E-200~900


    Fe-CuNi (constantan)

    J-40~750


    Cu-CuNi (constantan)

    T-200~350


    NiCrSi-NiSi

    N-200~1300


    The allowable grade and Tolerance are obtained at 0℃

    Thermocouple
    Type

    Grade

    Temperature range

    Allowable Tolerance /℃
    Type B600~1700±0.25% t
    600~800±4
    800~1700±0.5%t
    Type R(S)0~1100±1
    1100~1600±[1+(t-1100) ×0.3%]
    0~600±1.5
    600~1600±0.25% t
    Type K and Type N-40~1100±1.5℃ or ±0.4%t
    -40~1300±2.5℃ or ±0.75%t
    -200~40±2.5℃ or ±1.5%t
    Type E-40~1100±1.5℃ or ±0.4%t
    -40~1300±2.5℃ or ±0.75%t
    -200~40±2.5℃ or ±1.5%t
    Type J-40~750±1.5℃ or ±0.4%t
    -40~750±2.5℃ or ±0.75%t
    Type T-40~350±0.5℃ or ±0.4%t
    -40~350±1.0℃ or ±0.75%t
    -200~40±1.0℃ or ±1.5%t



    Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry
    Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry


     Delivery and Packing of thermocouple wire:

    1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

    2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

    3. Delivery: By express, air, sea as per thermocouple wire qty
    Temperature Measuring Thermocouple Alloy Wire Type NP NN Class One For Heavy Industry


    ISO Certified Thermocouple Alloy Wire Type NP NN Class One Used For Heavy Industry Temperature Measuring

    Welcome to call us  or email to us for more information on N type thermocouple wire, stranded wire , flat wire, strip.
