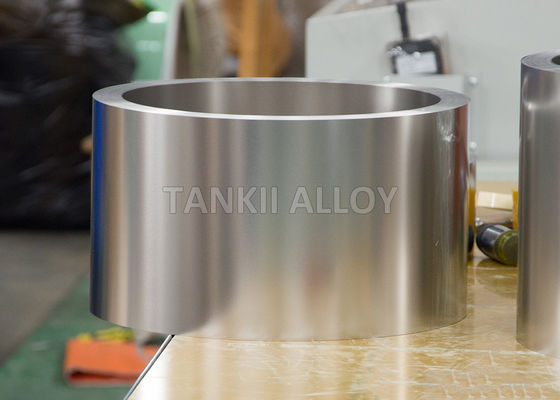

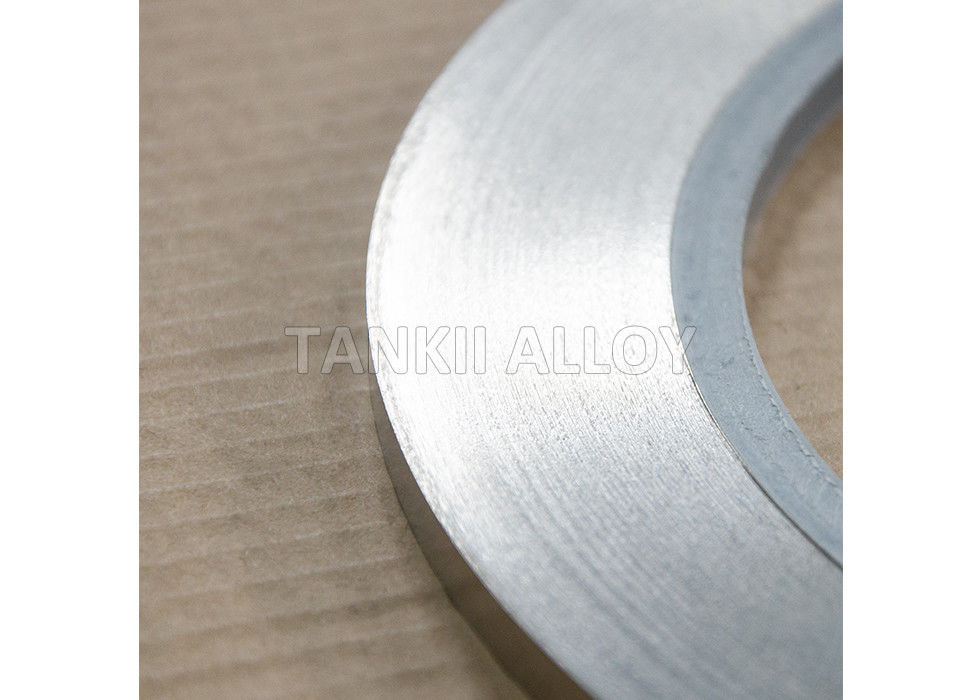

Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor

Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor

    • Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor
    • Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor
    • Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor
    • Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor
    • Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor
  • Bright Surface FeCrAl Alloy 0Cr13Al4 0.12 * 160mm For Etaching Resistor

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: SGS
    Model Number: 0CR21Al6Nb

    Payment & Shipping Terms:

    Minimum Order Quantity: 200KG
    Price: negotiable
    Packaging Details: Wooden case
    Delivery Time: 7-15days
    Payment Terms: L/C, T/T, Western Union, paypal
    Supply Ability: 300 Tons per month
    Contact Now
    Detailed Product Description
    Material: Cr21%, Al 6% Surface: Oxidation
    Size: 2.0x20mm Packing: Wooden Case
    Shape: Roll

    Bright Surface High Resistivity FeCrAl Alloy 0Cr13Al4 0.12*160mm for Etaching Resistor Application

    About our company

    - Shanghai Tankii Alloy is a professional manufacturer of High Resistance heating alloys for more than 30 years in China. Now we can supply more than 5000 tons for different types of nickel base alloy per year.

    - We can supply Ni-Cr, Fe-Cr-Al,Ni-Fe, Supper alloys, welding materials in forms of wire,strip,bar,sheet,pipe etc. with different size,Such as Ni80Cr20,Monel,Inconel,Incoloy,Invar, kanthal,hastelloy,kover and so on.

    - We can also customize the goods apply to customer. Now we supply nickel base alloys for companies from USA, Europe, Russia, Ukraine, India, Korea, Iran,UK, etc.



    FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.

    They are typically used in electrical heating elements in industrial furnaces and home appliances.



    Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.



    Forms:wire, bar, strip,sheet / plate,forging,tube/pipe,etc.



    Characteristics:
    1) The highest working temperature up to 1350 degree.
    2) Longer working life,and better technical properties
    3) Higher surface load.
    4) Higher resistivity.
    5) Lower density.
    6) Free from oxide debris



    Main technical characteristics of FeCrAl Alloy:

    Brand

    Property

    1Cr13Al4 1Cr21Al4 0Cr21Al6 0Cr23Al5 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2
    Major chemical component% Cr 12.0-12.5 17.0-21.0 19.0-22.0 20.5-23.5 23.0-26.0 21.0-23.0 26.5-27.8
    Al 4.0-6.0 2.0-4.0 5.0-7.0 4.2-5.3 4.5-6.5 5.0-7.0 6.0-7.0
    Fe Balance Balance Balance Balance Balance Balance Balance
    Re Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate
                Addition Nb:0.5

    Addition

    Mo:1.8-2.2

    Component max. use temperature 950 1100 1250 1250 1250 1350 1400
    Melting Point 1450 1500 1500 1500 1500 1510 1510
    Density g/cm3 7.40 7.35 7.16 7.25 7.10 7.10 7.10
    Resistivity μΩ·m,20 1.25±0.08 1.23±0.06 1.42±0.07 1.35±0.06 1.45±0.07 1.45±0.07 1.53±0.07
    Tensile Strength Mpa 588-735 637-784 637-784 637-784 637-784 637-784 684-784
    Extension rate% 16 12 12   12 12 10
    Repeated bending frequency     5 5 5 5 5
    Fast lift h/ -     80/1300 80/1300   50/1350
    Specific Heat J/g. 0.490 0.490 0.520 0.460 0.494 0.494 0.494
    Heat Conduction Coefficient KJ/M.h 52.7 46.9 63.2 60.1 46.1 46.1 45.2

    Linear expansion coefficient aX10-6/

    (20-1000)

    15.4 13.5 14.7 15.0 16.0 16.0 16.0
    Hardness HB 200-260 200-260 200-260 200-260 200-260 200-260 200-260
    Microstructure Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic
    Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic



    Category Thickness ( mm ) Tolerance ( mm)
    Common precision High precision
    Cold-rolled strip 0.05 ~ 0.1 ±0.01 ±0.005
    0.1 ~ 0.2 ±0.015 ±0.01
    0.2 ~ 0.5 ±0.02 ±0.015
    0.5 ~ 1.0 ±0.03 ±0.025
    1.0 ~ 1.8 ±0.04 ±0.03
    1.8 ~ 2.5 ±0.05 ±0.04
    2.5 ~ 4.0 ±0.06 ±0.05
    Hot-rolled Strip 2.5 ~ 5.0 ±0.25 ±0.2
    5.0 ~ 7.0 ±0.3 ±0.25
    7.0 ~ 10.0 ±0.4 ±0.35
    10.0 ~ 20.0 ±0.5 ±0.45


    The allowable tolerance of alloy strip GB/T1234-2012
    Category Width ( mm ) Tolerance ( mm )
    side cut Nonside cut
    Common precision High precision
    Cold-rolled Strip 5.0 ~ 10.0 ±0.2 ±0.1 -0.6
    10.0 ~ 20.0 -0.8
    20.0 ~ 30.0 -1
    30.0 ~ 50.0 ±0.3 ±0.15 -1.2
    50.0 ~ 100.0 ±1.0
    100.0 ~ 200.0 ±0.5 ±0.25 ±1.5
    200.0 ~ 300.0 ±1.8
    Hot-rolled Strip 15.0 ~ 60.0 / ±1.5
    60.0 ~ 200.0 ±2.5
    200.0 ~ 300.0 ±3.0



    Applications

    0Cr21Al6 Iron-chrome-aluminium electric resistor strip is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements
