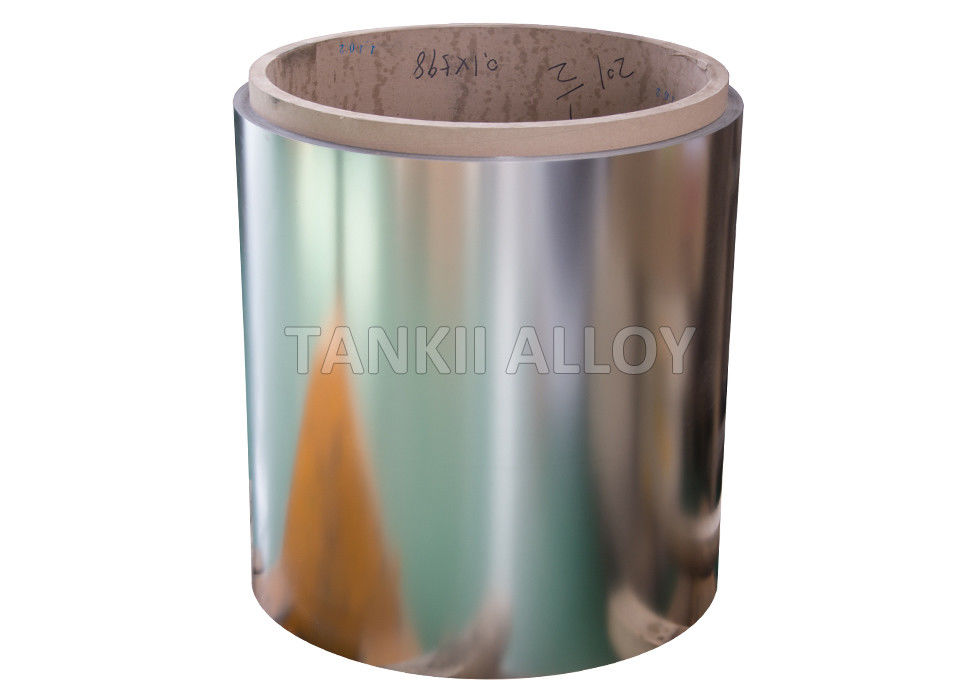

Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry

Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry

    • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry
    • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry
    • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry
    • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry
    • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry
    • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry
  • Industrial Pure Nickel Sheet Ni200 Ni201 N4 N6 For Electronic Industry

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO,ROHS
    Model Number: Pure Ni

    Payment & Shipping Terms:

    Minimum Order Quantity: 20KG
    Packaging Details: in roll, wooden case outside
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10,000/Month
    Contact Now
    Detailed Product Description
    Application: :Aviation / Ocean Industry Ni (Min): : 99.5% Min
    Width: : Up To 600mm Wide Thickness: : 0.002 To 2.50 Mm
    Standard: : ASTM B162 Sample Free: :Available

    Purity > 99.6 % Industrial Pure Nickel Strip , Nickel 200 Strip for Aviation / Ocean Industry



    Product Description

        Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F.  It has outstanding magnetic properties and thermal and electrical conductivity.



    Specification of Pure Nickel Strip:

    Strip Size

    Thickness – 0.005mm above, Width- 0.2mm above



    Chemical Composition of Pure Nickel Strip:

    Nickel

    99.6%

    Copper

    0.25%

    Iron

    0.40%

    Manganese

    0.35%

    Carbon

    0.15%

    Silicon

    0.35%

    Sulfur

    0.01%





    Physical properties of Pure Nickel Strip:

    Density, g/cm3

    8.89

    Melting Range, °C

    1435-1446

    Specific Heat, J/kg•°C

    456

    Curie Temperature, °C

    360



    Nickel Strip Product Precision



    Thickness

    Thickness allowance

    Burr height

    Width scope and tolerance

    2≤w<10

    10≤w<50

    50≤w<100

    100≤w<150

    150≤w<200

    200≤w

    0.02≤t<0.05

    ±0.003

    0.005

    ±
    0.05

    ±0.10

    ±0.15

    ±0.20

    ±0.30

    ±0.50

    0.05≤t<0.1

    ±0.005

    0.01

    0.1≤t<0.2

    ±0.008

    0.015

    0.2≤t<0.3

    ±0.012

    0.02

    0.3≤t<0.4

    ±0.015

    0.03

    ±
    0.10

    ±0.15

    ±0.25

    ±0.50

    ±0.80

    ±1.00

    0.4≤t<0.6

    ±0.025

    0.05

    0.6≤t<0.8

    ±0.030

    0.06

    ±
    0.30

    ±0.40

    ±0.50

    ±0.50

    ±0.80

    ±1.00

    0.8≤t<1.0

    ±0.040

    1.0≤t<1.2

    ±0.050

    0.08

    ±
    0.50

    ±0.50

    ±0.80

    ±1.00

    ±1.00

    ±1.50

    1.2≤t<1.4

    ±0.060

    1.4≤t<1.7

    ±0.070

    0.10

    1.7≤t<2.0

    ±0.080





    Properties of Pure Nickel Strip:

    1.  Higher electrical conductance
    2.  Raised Curie Temperature
    3.  Superior Magnetostrictive Properties
    4.  Excellent thermal conductivity



    Applications of Nickel 200 Strip:

    1.  Manufacturing artificial synthetic fibers.
    2.  Chemical Treatment and Preservation.
    3.  Aerospace Industry.
    4.  Cathode tap
    5.  Cell connector
