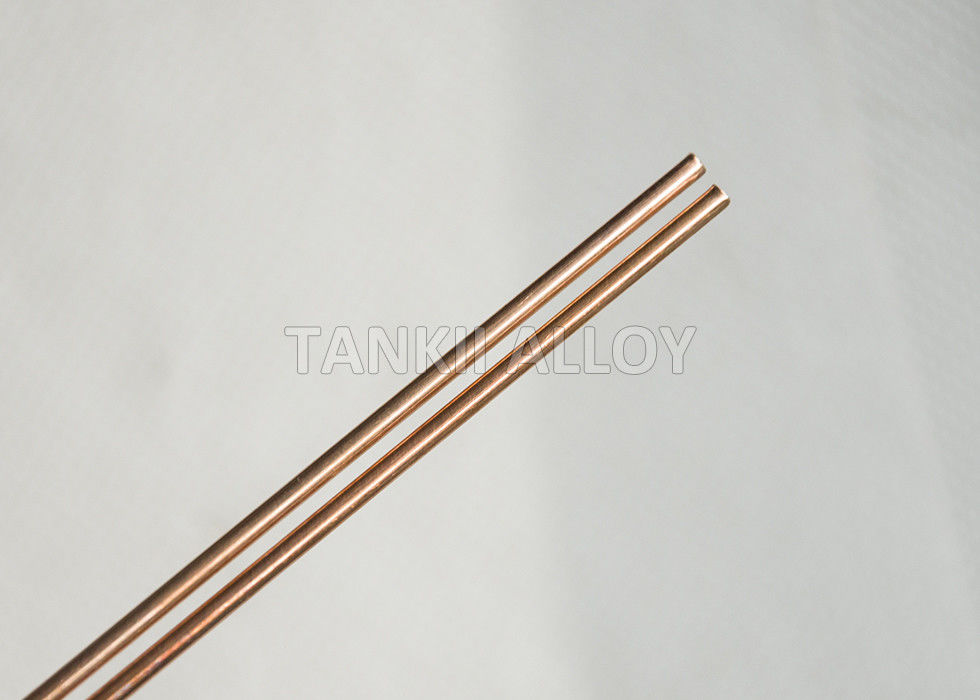

6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation

6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation

    • 6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation
    • 6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation
    • 6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation
  • 6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: Tankii
    Certification: ISO9001:2015
    Model Number: Manganin

    Payment & Shipping Terms:

    Minimum Order Quantity: 15kg
    Price: Negotiated price
    Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Conductor Type: Solid Colour: Copper Colour
    Shape: Bar/ Rod Insulation: Non
    Sample: Available

    6mm Stable Resistivity Manganin Copper Alloy Straight Bright Bar/ Rod





    Product Description

    Manganin wire widely used for low voltage instrumentation with the highest requirements, the resistors should be carefully stabilised and the application temperature should not exceed +60 °C. Exceeding the maximum working temperature in air may result in a resistance drift generated by oxidizing. Thus, the long-term stability can be affected negatively. As a result, the resistivity as well as the temperature coefficient of the electric resistance may slightly change. It is also used as low cost replacement material for silver solder for hard metal mounting.





    Chemical Content, %

    Ni Mn Fe Si Cu Other ROHS Directive
    Cd Pb Hg Cr
    2~5 11~13 <0.5 micro Bal - ND ND ND ND

    Mechanical Properties

    Max Continuous Service Temp 0-100ºC
    Resisivity at 20ºC 0.44±0.04ohm mm2/m
    Density 8.4 g/cm3
    Thermal Conductivity 40 KJ/m·h·ºC
    Temp Coefficient of Resistance at 20 ºC 0~40α×10-6/ºC
    Melting Point 1450ºC
    Tensile Strength(Hard) 585 Mpa(min)
    Tensile Strength,N/mm2 Annealed,Soft 390-535
    Elongation 6~15%
    EMF vs Cu, μV/ºC (0~100ºC) 2(max)
    Micrographic Structure austenite
    Magnetic Property non
    Hardness 200-260HB
    Micrographic Structure Ferrite
    Magnetic Property Magnetic





    6mm Stable Resistivity Manganin Copper Alloy Straight Bright Rod Non Insulation
