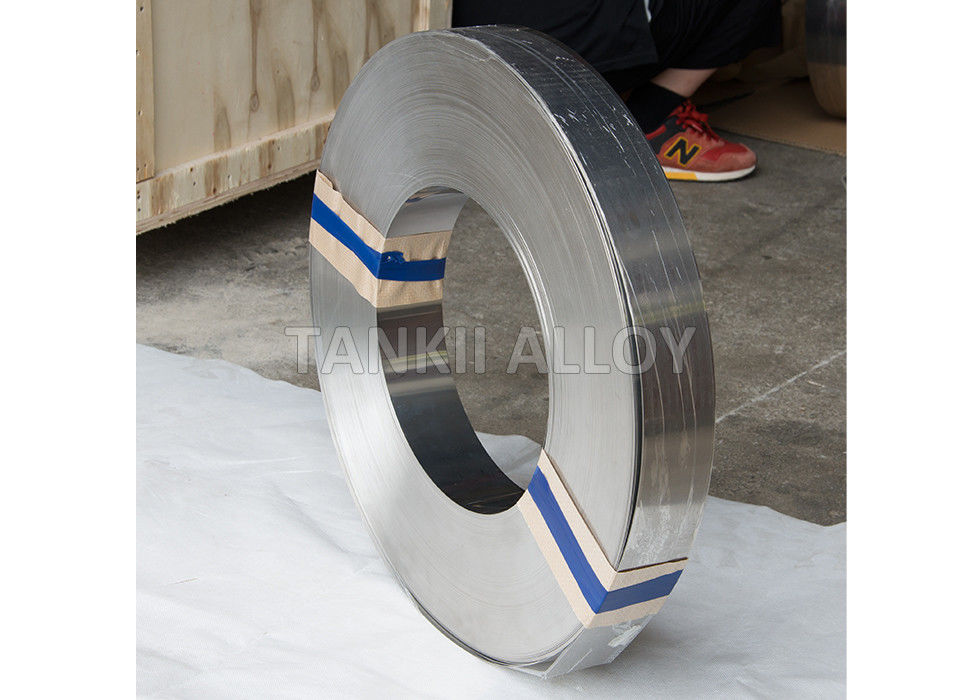

Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color

Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color

    • Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color
    • Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color
    • Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color
    • Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color
  • Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO9001
    Model Number: 0Cr25Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 25kg
    Price: 5.1 usd / kg
    Packaging Details: spool or coil
    Delivery Time: 5-35 days
    Payment Terms: T/T, Western Union
    Supply Ability: 25000 ton / month
    Contact Now
    Detailed Product Description
    Product Name: Fecral 0Cr25Al5 Ribbon Fecral Alloy Strip For Home Automation Heat Elements Color: Bright
    Material: FeCrAl Alloy Delivery: Depends On The Quantity
    Surface: Bright Usage: Heat Elements
    Package: Spool Or Coil

    Wide strip Bright Color 0cr25al5 Fecral Alloy Ribbon heating strip


    FeCrAl resistance wire grade: 0Cr25Al5, 0Cr23Al5, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al4, 0Cr21Al6.

    NiCr grade: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20



    In the form of wire, ribbon and strip



    Wire: 0.018mm-10mm

    Ribbon: 0.05*0.2mm-2.0*6.0mm
    Strip: 0.5*5.0mm-5.0*250mm


    1.Specification



    Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
    Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
    Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
    Re opportune opportune opportune opportune opportune opportune opportune
    Fe Rest Rest Rest Rest Rest Rest Rest
                Nb0.5 Mo1.8-2.2
    Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
    Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
    Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
    Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
    Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
    Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
    Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
    Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
    Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
    Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
    Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
    continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
    Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
    Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic



    2.Introduction

    (1)Resistance wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy.
    Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.

    (2)It is widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.
    Wide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright ColorWide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright ColorWide 0cr25al5 FeCrAl Alloy Ribbon Heating Strip For Heat Elements Bright Color
