Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: Iron constantan
Payment & Shipping Terms
Minimum Order Quantity: 10kg per leg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Material: |
Iron Constantan |
Surface: |
Bright |
Diameter: |
≥ 0.1mm |
Wire Type: |
Solid Wire |
Insulation: |
Customized |
Wire Class: |
IEC Class I , II, |
Leading Time: |
5~20 Days After Getting The Payment |
Material: |
Iron Constantan |
Surface: |
Bright |
Diameter: |
≥ 0.1mm |
Wire Type: |
Solid Wire |
Insulation: |
Customized |
Wire Class: |
IEC Class I , II, |
Leading Time: |
5~20 Days After Getting The Payment |

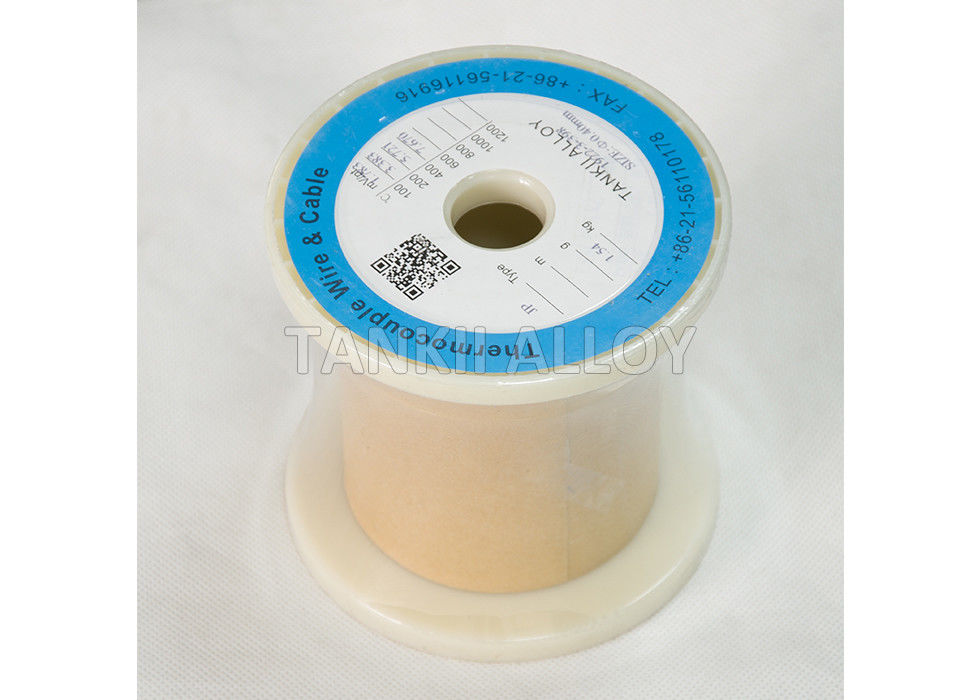

26AWG J Type Iron Constantan Thermocouple Wire 0.4mm With IEC60584 Class 1
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The Type J thermocouple is composed of an iron (+) wire versus a nickel-45% copper (-) wire. This type of thermocouple should be used in oxidizing, reducing, vacuum or inert atmospheres with a service temperature range between 0°C and 760°C (32°F to 1400°F). If the thermocouple is being used over 540°C (1000°F) an 8 gauge wire should be used due to rapid oxidation of the iron (+) wire. Type J thermocouples should not be used in sulfurous applications above 540°C (1000°F).
26AWG J Type Iron Constantan Thermocouple Wire 0.4mm With IEC60584 Class 1
Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
The allowable grade and Tolerance are obtained at 0℃
|
Thermocouple Type |
Grade |
Temperature range ℃ |
Allowable Tolerance /℃ |
| Type B | Ⅱ | 600~1700 | ±0.25% t |
| Ⅲ | 600~800 | ±4 | |
| 800~1700 | ±0.5%t | ||
| Type R(S) | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] | ||
| Ⅱ | 0~600 | ±1.5 | |
| 600~1600 | ±0.25% t | ||
| Type K and Type N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~750 | ±2.5℃ or ±0.75%t | |
| Type T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
| Ⅱ | -40~350 | ±1.0℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
