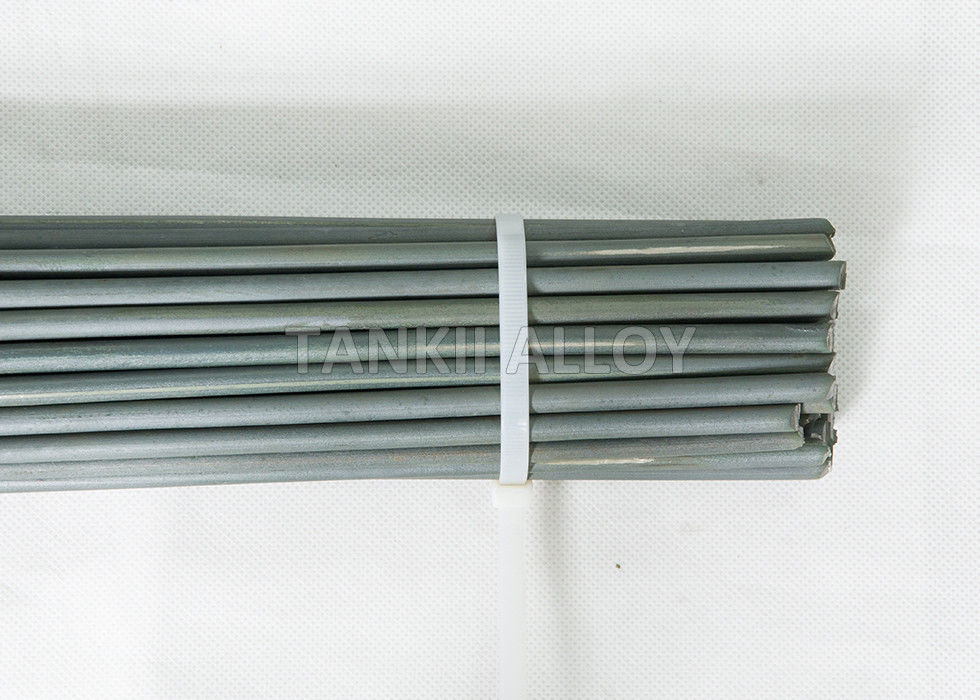

6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface

Product Details

Place of Origin: China Mainland

Brand Name: Tankii

Certification: ISO9001

Model Number: Chromel Alumel

Payment & Shipping Terms

Minimum Order Quantity: 10kg per leg

Price: Negotiation

Packaging Details: Standard exoprt package in carton box or wooden box

Delivery Time: 5-7 days after getting the payment

Payment Terms: T/T, Paypal, Western Union, MoneyGram,

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

thermocouple lead wire

,

high temperature thermocouple wire

Material:
Chromel Alumel
Surface:
Oxidized
Diameter:
8.0mm
Wire Type:
Solid Wire
Wire Class:
IEC 60584
Leading Time:
5~20 Days As Per The Order Qty
Material:
Chromel Alumel
Surface:
Oxidized
Diameter:
8.0mm
Wire Type:
Solid Wire
Wire Class:
IEC 60584
Leading Time:
5~20 Days As Per The Order Qty
Description
6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface


6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface

Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.


Tankii Brand NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Tankii Brand Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.



6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface

Characteristics:
Tankii Brand thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.


Thermocouple strips, thermocouple connectors are available.

6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface
Application Range of thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation

6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface
6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface 0

Tankii Brand Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t





 Tankii Delivery and Packing of thermocouple wire:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

6mm 8mm Chromel Alumel Thermocouple Rod 1M Length With Oxidized Surface 1


Welcome to call me or email to me for more information on thermocouple wire, Rod, cable or connectors.
