0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop

0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop

    • 0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop
    • 0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop
    • 0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop
    • 0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop
  • 0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: Tankii
    Certification: ISO9001:2015
    Model Number: H63

    Payment & Shipping Terms:

    Minimum Order Quantity: 50kg
    Price: Negotiated price
    Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
    Delivery Time: 25-30 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Size: 0.1mm-0.5mm Cu %: 62-65
    Shape: Round/ Flat/ Ribbon Sample: Available

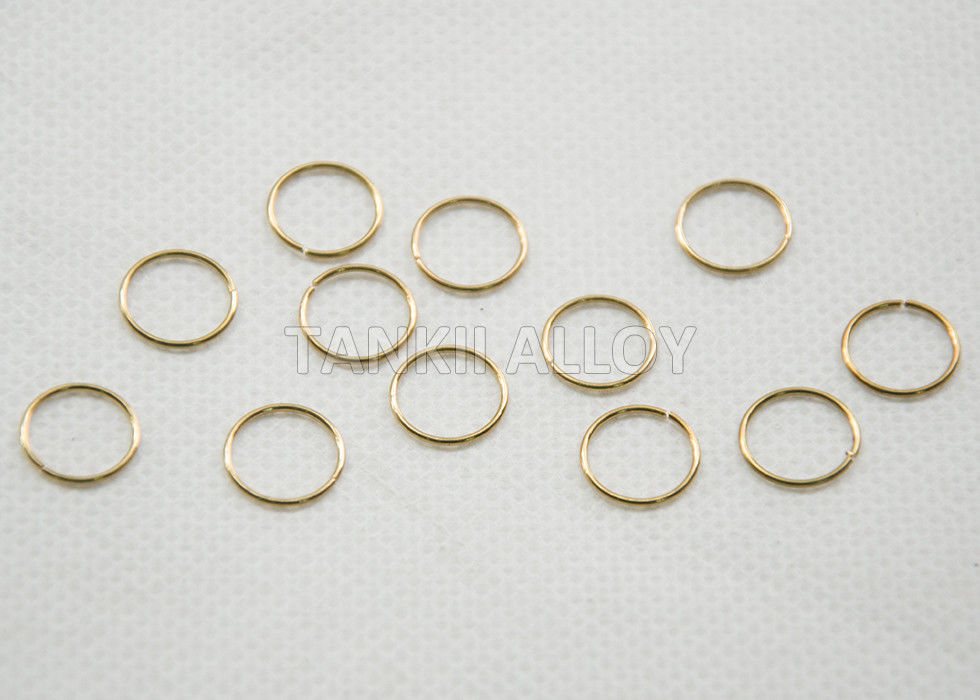

    0.1mm-0.5mm H63/ H65 Brass Wire/ Flat Wire for Wire Ring/ Loop



    USAGE
    Used in a lot of deep-drawability parts, such as springs, and machine parts, zipper, etc.

    THE MAIN CHARACTERISTICS
    With excellent machinability, cold plasticity, hot plasticity, free cutting and resistance to corrosion, it is easy to joint and braze.

    Temper
    M, Y1, Y2, Y

    Production Range
    Thickness: 0.6mm - 2.0mm
    Width: 3mm - 10mm





    Specification

    • Material:
      • 65% copper and 35% zinc.
      • 70% copper and 30% zinc.
      • 80% copper and 20% zinc.
      • 85% copper and 15% zinc.
      • 90% copper and 10% zinc.
    • Wire shape: round, half-round, flat.
    • Package type: spool brass wire, coil brass wire, cut brass wire (straight or corrugate).
    • Color: golden.
    • Length can be customized.



    Chemical Composition

    Alloy Grade Cu Pb Fe (max) Zn Impurity Total
    H70 68.5 - 71.5% 0.03% 0.1% Remain 0.3%
    H68 67.0 - 70.0% 0.03% 0.1% Remain 0.3%
    H65 63.0 - 68.5% 0.09% 0.07% Remain 0.45%
    H63 62.0 - 65.0% 0.08% 0.15% Remain 0.5%
    H62 60.5 - 63.5% 0.08% 0.15% Remain 0.5%







    SWG BWG BG AWG

    8 0.16 4.046 0.165 4.191 0.157 3.988 0.1285 3.264
    9 0.144 3.658 0.148 3.759 0.1398 3.551 0.1144 2.906
    10 0.128 3.215 0.134 3.404 0.125 3.175 0.1019 2.588
    11 0.116 2.946 0.12 3.048 0.1113 2.827 0.0907 2.305
    12 0.104 2.642 0.109 2.769 0.0991 2.517 0.0808 2.053
    13 0.092 2.337 0.095 2.413 0.0882 2.24 0.072 1.828
    14 0.08 2.032 0.083 2.108 0.0785 1.994 0.0641 1.628
    15 0.072 1.829 0.072 1.829 0.0699 1.775 0.0571 1.45
    16 0.064 1.626 0.065 1.651 0.0625 1.588 0.0508 1.291
    17 0.056 1.422 0.058 1.473 0.0556 1.412 0.0453 1.15
    18 0.048 1.219 0.049 1.245 0.0495 1.257 0.0403 1.024
    19 0.04 1.016 0.042 1.067 0.044 1.118 0.0359 0.912
    20 0.036 0.914 0.035 0.839 0.0392 0.996 0.032 0.812
    21 0.032 0.813 0.032 0.831 0.349 0.887 0.0285 0.723
    22 0.028 0.711 0.028 0.711 0.03125 0.749 0.02535 0.644
    23 0.024 0.61 0.025 0.635 0.02782 0.707 0.02256 0.573
    24 0.022 0.559 0.022 0.559 0.02476 0.629 0.02011 0.511
    25 0.02 0.508 0.02 0.508 0.02204 0.56 0.01791 0.455
    26 0.018 0.457 0.018 0.457 0.01961 0.498 0.01594 0.405
    27 0.0164 0.417 0.016 0.406 0.01745 0.443 0.0142 0.361
    28 0.0148 0.376 0.014 0.356 0.01562 0.397 0.01264 0.321
    29 0.0136 0.345 0.013 0.33 0.0139 0.353 0.01126 0.286
    30 0.0124 0.315 0.012 0.305 0.0123 0.312 0.01003 0.255
    31 0.0116 0.295 0.01 0.254 0.011 0.27 0.00893 0.227
    32 0.0108 0.274 0.009 0.229 0.0098 0.249 0.00795 0.202
    33 0.01 0.254 0.008 0.203 0.0087 0.221 0.00708 0.18
    34 0.0092 0.234 0.007 0.178 0.0077 0.196 0.0063 0.16
    35 0.0084 0.213 0.005 0.127 0.0069 0.175 0.00561 0.143
    36 0.0076 0.193 0.004 0.102 0.0061 0.155 0.005 0.127


    0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop
