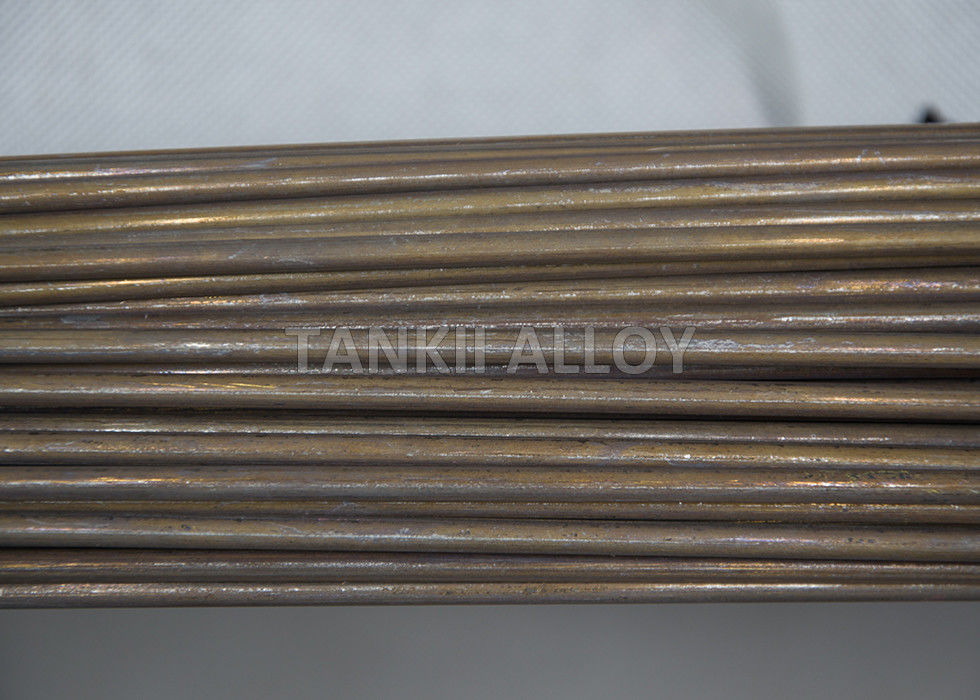

0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity

0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity

    • 0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity
    • 0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity
  • 0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: Tankii
    Certification: ISO9001:2015
    Model Number: 0Cr25Al5

    Payment & Shipping Terms:

    Minimum Order Quantity: 50kg
    Price: Negotiated price
    Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
    Delivery Time: 25-30 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Surface: Oxidated/ Golden Max Working Temperature: 1400
    Feature: Corrosion Resistance/ Heating Resistance Resistance: Uniforme
    Resistivity: 1.42 Alloy Type: FeCrAl

    0Cr25Al5 FeCrAl Alloy Wire Oxidated Golden Colour Resistance/ Heating Wire



    General Description
    FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350 degrees. Typical applications are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.


    Application
    Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.

    Size
    Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm

    Packing detail
    Spool, coil, wooden case(as per client's requiryment)



    Properties/Grade 0Cr23Al5
    Main Chemical composition(%) Cr 22.5-24.5
    Al 4.2-5.0
    Fe Balance
    Re opportune

    Max. continuous service temp. of element 1250
    Resistivity at 20oC (μ Ω @ m) 1.35+-0.07
    Density (g/cm3) 7.25
    Thermal conductivity(KJ/m@ h@ oC) 60.2
    Coefficient of lines expansion(α × 10-6/oC) 15
    Melting point (approx. )( oC) 1500
    Elongation at rupture (%) ≥ 12
    Micrographic structure Ferrite
    Magnetic properties magnetic



    Main technical characteristics of FeCrAl Alloy:

    Brand

    Property

    1Cr13Al4 1Cr21Al4 0Cr21Al6 0Cr23Al5 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2
    Major chemical component% Cr 12.0-12.5 17.0-21.0 19.0-22.0 20.5-23.5 23.0-26.0 21.0-23.0 26.5-27.8
    Al 4.0-6.0 2.0-4.0 5.0-7.0 4.2-5.3 4.5-6.5 5.0-7.0 6.0-7.0
    Fe Balance Balance Balance Balance Balance Balance Balance
    Re Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate Appropriate
                Addition Nb:0.5

    Addition

    Mo:1.8-2.2

    Component max. use temperature 950 1100 1250 1250 1250 1350 1400
    Melting Point 1450 1500 1500 1500 1500 1510 1510
    Density g/cm3 7.40 7.35 7.16 7.25 7.10 7.10 7.10
    Resistivity μΩ·m,20 1.25±0.08 1.23±0.06 1.42±0.07 1.35±0.06 1.45±0.07 1.45±0.07 1.53±0.07
    Tensile Strength Mpa 588-735 637-784 637-784 637-784 637-784 637-784 684-784
    Extension rate% 16 12 12   12 12 10
    Repeated bending frequency     5 5 5 5 5
    Fast lift h/ -     80/1300 80/1300   50/1350
    Specific Heat J/g. 0.490 0.490 0.520 0.460 0.494 0.494 0.494
    Heat Conduction Coefficient KJ/M.h 52.7 46.9 63.2 60.1 46.1 46.1 45.2

    Linear expansion coefficient aX10-6/

    (20-1000)

    15.4 13.5 14.7 15.0 16.0 16.0 16.0
    Hardness HB 200-260 200-260 200-260 200-260 200-260 200-260 200-260
    Microstructure Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic Ferritic
    Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic





    0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity0Cr25Al5 FeCrAl Alloy Wire Heating Wire Oxidated Golden Colour 1.42 Resistivity
