Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation

Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation

    • Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation
    • Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation
    • Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation
    • Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation
  • Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO 9001
    Model Number: Thermocouple cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 m
    Price: 0.3usd / M
    Packaging Details: 5000m/spool,2000m/spool ,customzied
    Delivery Time: 5-30days
    Payment Terms: T/T, Western Union
    Supply Ability: 150000m/month
    Contact Now
    Detailed Product Description
    Package: Coil Temperature: Customzied
    Standard: ANSI Type: K
    Insulation: PTFE/PVC/FIBERGLASS Certification: ISO 9001
    COLOR: YELLOW AND RED

    Multicore cable JX thermocouple wire 7*0.2mm PFA FEP PVC thermocouple wire





    Application


    • Heating – Gas burners for ovens

    • Cooling – Freezers

    • Engine protection – Temperatures and surface temperatures

    • High temperature control – Iron casting



    The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.



    Grade: Extension Grade or Thermocuple Grade
    temperature range, deg. c -50... +400
    type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
    number of conductors: 1,2,3,4,6
    Conductor type Strand or Solid
    section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
    material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc

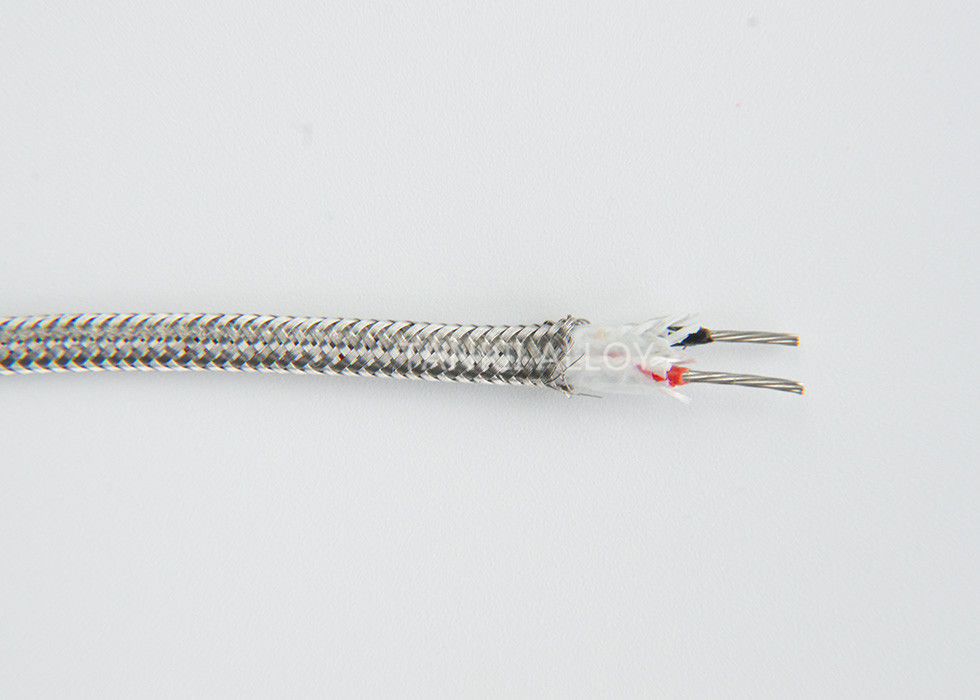

    shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
    color: ANSI, IEC, etc
    quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,




    Multicore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC InsulationMulticore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC InsulationMulticore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC InsulationMulticore Cable Type JX Thermocouple Wire 7*0.2mm PFA FEP PVC Insulation
