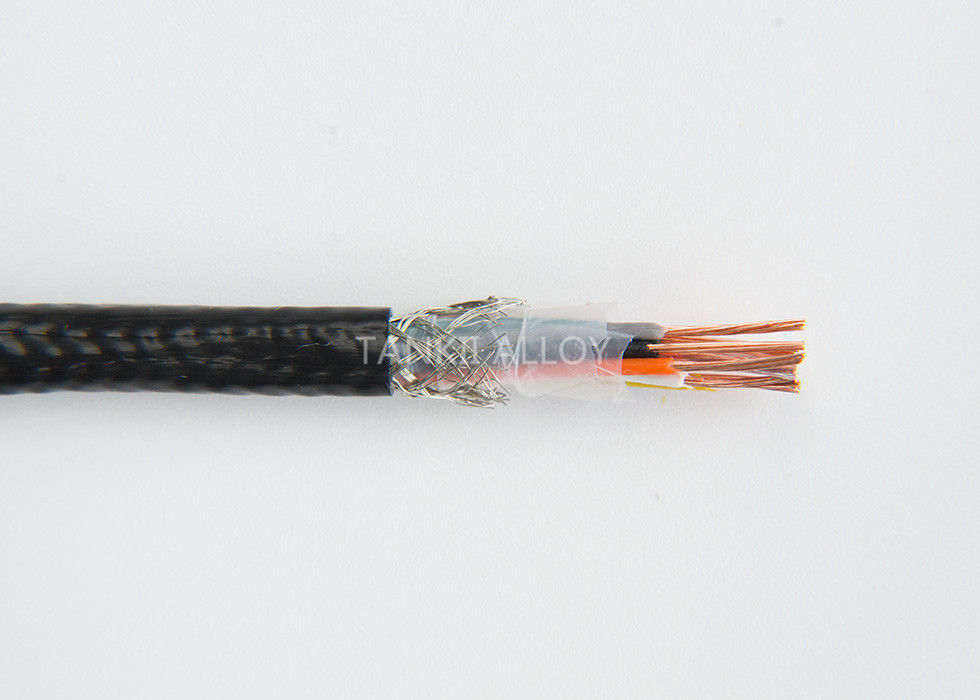

20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation

20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation

    • 20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
    • 20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
    • 20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
    • 20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
  • 20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO 9001
    Model Number: Thermocouple cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 m
    Price: 0.3usd / M
    Packaging Details: 5000m/spool,2000m/spool ,customzied
    Delivery Time: 5-30days
    Payment Terms: T/T, Western Union
    Supply Ability: 150000m/month
    Contact Now
    Detailed Product Description
    Color: Customzied Package: Coil
    Temperature: Customzied Standard: ANSI
    Type: K Insulation: PTFE/PVC/FIBERGLASS

    20 AWG 24 AWG thermocouple extension wire type KX with PTFE insulation




    Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
    (1) Alternatively oxidizing and reducing atmosphere.
    (2) Atmosphere with sulphur gases.
    (3) Long time in vacuum.
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.





    Grade: Extension Grade or Thermocuple Grade
    temperature range, deg. c -50... +400
    type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
    number of conductors: 1,2,3,4,6
    Conductor type Strand or Solid
    section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
    material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
    color: ANSI, IEC, etc
    quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,




    20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation20 AWG 24 AWG Thermocouple Extension Wire Type KX With PTFE Insulation
