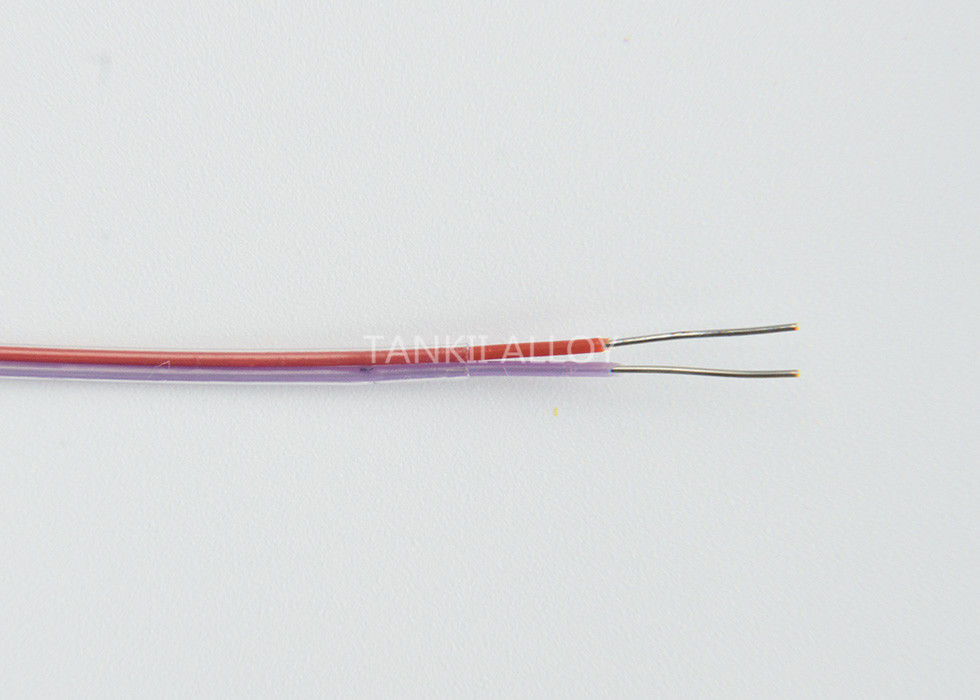

PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color

PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color

    • PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color
    • PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color
    • PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color
    • PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color
  • PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: ISO 9001
    Model Number: Thermocouple cable

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 m
    Price: Negotiation
    Packaging Details: 5000m/spool,2000m/spool ,customzied
    Delivery Time: 5-30days
    Payment Terms: T/T, Western Union
    Supply Ability: 150000m/month
    Contact Now
    Detailed Product Description
    Product Name: PFA Extension Cable Color: Customzied
    Package: Coil Temperature: Customzied
    Standard: ANSI Type: Twisted

    PFA insulated chromel alumel thermocouple wire 1.0mm2



    The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.


    Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
    (1) Alternatively oxidizing and reducing atmosphere.
    (2) Atmosphere with sulphur gases.
    (3) Long time in vacuum.
    (4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.





    Grade: Extension Grade or Thermocuple Grade
    temperature range, deg. c -50... +400
    type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
    number of conductors: 1,2,3,4,6
    Conductor type Strand or Solid
    section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
    material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
    shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
    color: ANSI, IEC, etc
    quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,




    PFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied ColorPFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied ColorPFA Insulated Twisted Thermocouple Cable Size 1.0mm2 Customzied Color
