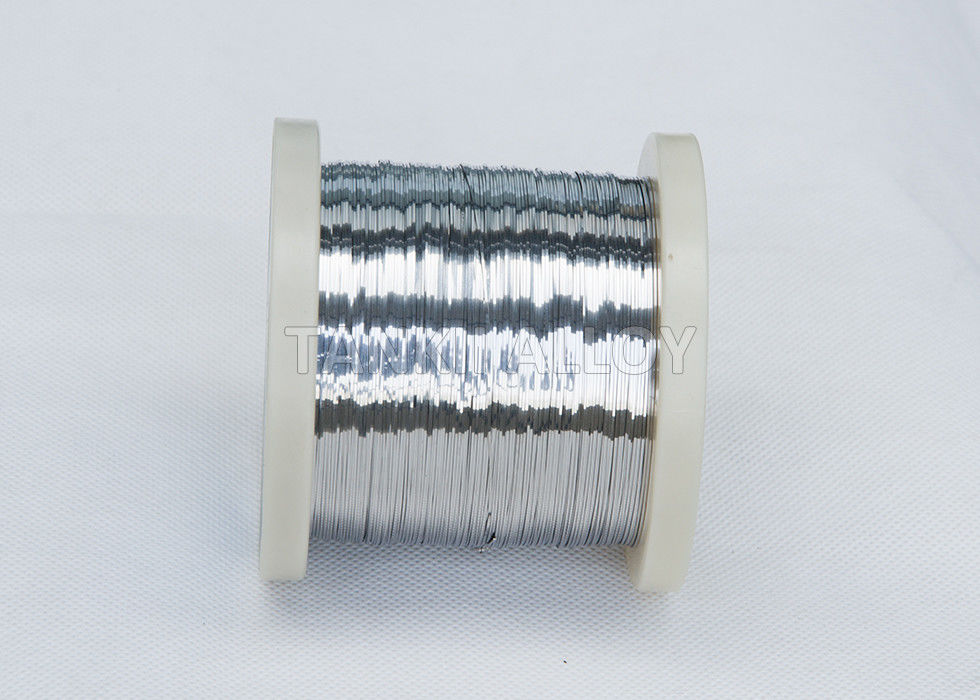

Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing

Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing

    • Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
    • Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
    • Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
    • Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
  • Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: Tankii
    Certification: ISO9001:2015
    Model Number: Alloy 42

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: Negotiated price
    Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
    Delivery Time: 7-12 DAYS
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 200+TON+MONTH
    Contact Now
    Detailed Product Description
    Other Material: Nickel Alloy, Copper Alloy... Other Shape: Round Wire, Ribbon, Strip, Sheet, Etc...
    Feature: Constant Coefficient Of Thermal Expansion Melting Point: 1435
    Inflection Point: 370 Commercial Name: Invar 42, Pernifer 40, Dilaton 42, And Glass Sealing 42

    Good Quality Alloy 42 Expansion Alloy Flat Wire for Glass-Metal Sealing



    1.Description:





    Grade and chemical composition
    Grade Mass fraction (%)
    C P S Mn Si B Al C0 Ni Cr Fe
    4J42 0.05 0.020 0.020 0.80 0.30   0.10 1.0 41.5~42.5   balance









    heat treating regime and coefficient of linear expansion
    Grade Heat treatment on samples a/(10-6/K)
    20-300°C 20~400% 20-450°C
    4J42 Heat the sample to (900±20)°C in hydrogen atmosphere, keep the temperature for one hour, cool to below 200°C at the speed ≤5°C/min then discharge 4.0~5.0   6.5~7.5
    6.5~7.2 6.5~7.2
    9.2~10.0 9.2~9.9









    coefficient of expansion
    Grade Average coefficient of expansion a/(10-6/K)
    20~100°C 20~200°C 20~300°C 20~400°C 20~450°C 20~500°C 20~600°C
    4J42 5.6 4.9 4.8 5.9 6.9 7.8 9.2









    2.Size

    Sheet---Thickness 0.1mm~40.0mm, width:300mm,Condition: cold rolled(hot), bright, bright annealed





    3.Usage

    It is applied to soft glass-to-metal and ceramic-to-metal seals in electronic component.







    4.MOQ

    50-100 kgs per each size; If we have in stock, 1kgs is available for us.





    5. Payment

    T/T, 30% deposit and the balance paid against the B/L copy.

    100% L/C at sight;

    Wesetern Union;

    Paypal;



    6.Shippment
    By Sea;

    By Air (DHL,TNT,UPS,FEDEX etc)





    7.Application

    Petrochemical Industry; Pulp and paper Industry; Aerospace Industry;

    Industrial Furnace; Special Welding; Heating Treatment Industry;

    Nuclear Power Industry; Marine Industry; Shipbuilding Industry;





    8.Packing

    Standard export packing, carton with plywood case for safety

    Sheet: Packed in Nylon Polybag first

    The goods can be packed as the clients demand.





    9.Delivery time

    We can do the order 45-50days upon receive the 30% deposit or L/C document.







    10.Advantages

    1.Pass:ISO9001 certification
    2.fine after-sale services
    3.small order accepted



    11.Delivery conditions and finishes

    Sheet: hot-rolling, polishing, picking, bright etc



    Alloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal SealingAlloy 42 Expansion Alloy Flat Wire 1435 Melting Point For Glass Metal Sealing
