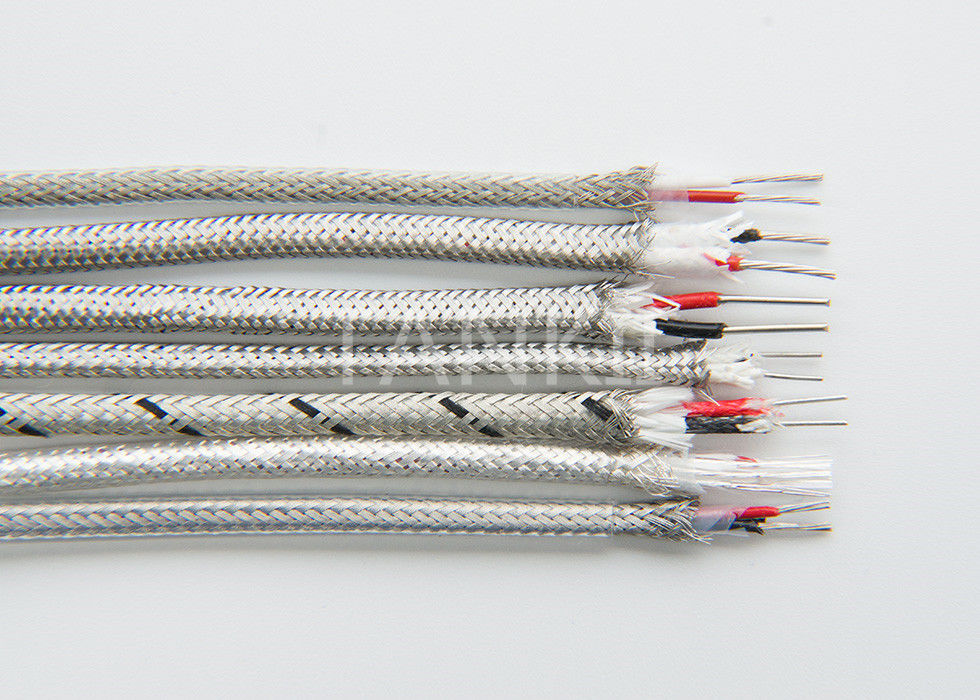

26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath

26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath

    • 26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath
    • 26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath
    • 26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath
    • 26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath
  • 26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath

    Product Details:

    Place of Origin: China
    Brand Name: Tankii
    Certification: Rohs, SGS
    Model Number: KX

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 Meters
    Price: Negotiation
    Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000Ton per year
    Contact Now
    Detailed Product Description
    Insulation Material: Fiberglass, Stainless Steel Braided Conductor Type: Solid Or Multi
    Standard: ANSI, IEC Leading Time: 5~7 Days After Getting The Deposit
    Type: Kx, Tx Jx Type Thermocouple Cable Item: 26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath

    26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath

    A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
    Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.

    26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath
    TYPE KX or KC  wire used for extension or compensation thermocouple cable.



    Detailed Description
    Conductor Name Type Applicable thermocouple type
    Cu-Constantan0.6 SC or RC S or R
    Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
    Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
    NiCr10-Constantan45 EX E
    Iron-Constantan 45 JX J
    Copper-Constantan 45 TX T



    Thermocouple Bare wire, K, J, E, N, T

    26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath

    26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath


    Properties of insulation materials

    Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
    PVC 105 Very Good Very Good Good Fair Excellent
    SILICONE 200 Good Good Excellent Excellent Excellent
    FEP 200 Excellent Excellent Excellent Excellent Excellent
    PFA 260 Excellent Excellent Excellent Excellent Excellent
    PTFE 260 Good Excellent Excellent Excellent Excellent
    B-GLASS FIBER 260 Good Good Fair Good Good
    G-GLASS FIBER 510 Poor Good Good Excellent Excellent
    Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
    VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
    MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent




    26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath
    Packaging & Delivery
    Packaging Details Roll with plastic film wrapped and carton package
    Delivery Detail Shipped in 7 days after payment



    Thermocouple wire With insulation used for extension cable or compensation cable.



    26AWG - 36AWG Thermocouple Cable With Fiberglass Stainless Steel Braided Sheath


    26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath

    FAQ:
    1. Payment ways?
    T/T, PAYPAL, WESTUNION.

    2. When will you arrange the production?
    In 12 hours since we get your payment.

    3. Product certifications?
    MTC , ISO9001, ROHS , SGS as customers' request

    4. What kind of informations shall I give you regarding the shipping?
    Company name, Recipients, Correct Address, telephone, zip code.

    5. What is your warranty ?
    For most of our products, the warranty will be 12 months.

    6. When will I get a solution for defective products?
    Within 48 hours (on working days )

    7. What is your shipping way?
    DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

    8. What is your shipping time?
    For General Orders, the shipping time will be 7 workdays.


    26AWG-36AWG Thermocouple Wire With Fiberglass Stainless Steel Braided Sheath

    Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
