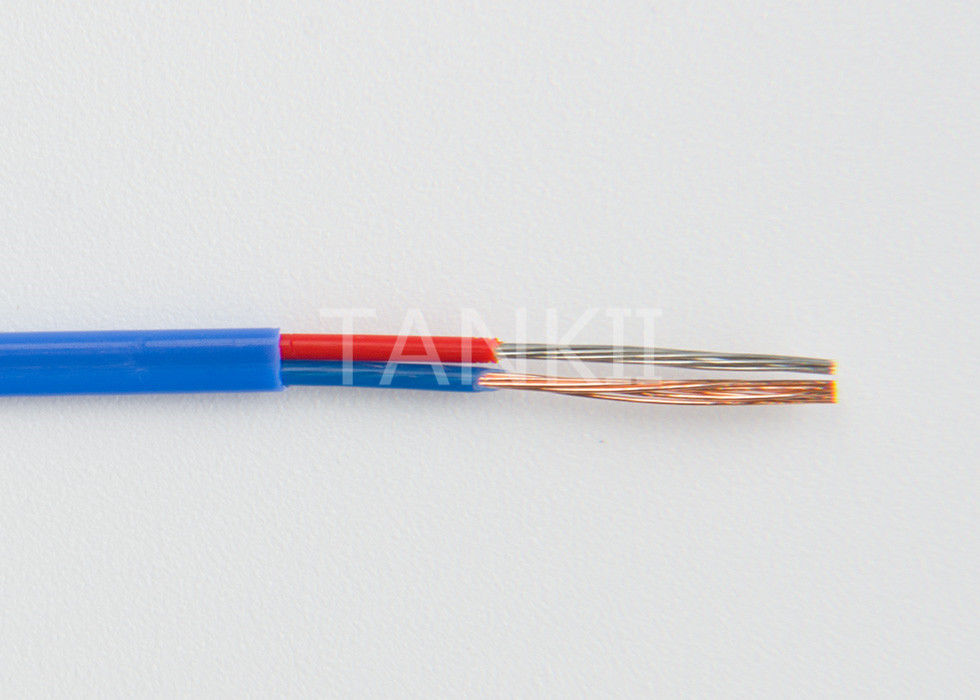

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

Name: 105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard
Brand: Tankii
SKU: KX
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (121 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: KX

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    high temperature thermocouple cable, type k thermocouple wire, thermocouple cable k type


Insulation Material:	PVC, PTFE , PFA, Ptfe Fep	Conductor Type:	Solid Or Multi
Standard:	ANSI, IEC	Leading Time:	5~7 Days After Getting The Deposit
Type:	Kx, Tx Jx Type Thermocouple Cable	Item:	105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

Insulation Material:	PVC, PTFE , PFA, Ptfe Fep
Conductor Type:	Solid Or Multi
Standard:	ANSI, IEC
Leading Time:	5~7 Days After Getting The Deposit
Type:	Kx, Tx Jx Type Thermocouple Cable
Item:	105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

Description

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

TYPE KX or KC wire used for extension or compensation thermocouple cable.

Detailed Description

Conductor Name	Type	Applicable thermocouple type
Cu-Constantan0.6	SC or RC	S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel)	KCA KCB KX	K
Iron-constantan18 NiCr14Si-NiSi4Mg	NC NX	N
NiCr10-Constantan45	EX	E
Iron-Constantan 45	JX	J
Copper-Constantan 45	TX	T

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

Properties of insulation materials

Material Type	Continuous Operating Temp. / ℃	Abrasion Resistance	Chemical Resistance	Moisture Resistance	Solvent Resistance	Flame Resistance
PVC	105	Very Good	Very Good	Good	Fair	Excellent
SILICONE	200	Good	Good	Excellent	Excellent	Excellent
FEP	200	Excellent	Excellent	Excellent	Excellent	Excellent
PFA	260	Excellent	Excellent	Excellent	Excellent	Excellent
PTFE	260	Good	Excellent	Excellent	Excellent	Excellent
B-GLASS FIBER	260	Good	Good	Fair	Good	Good
G-GLASS FIBER	510	Poor	Good	Good	Excellent	Excellent
Q-GLASS FIBER	704	Fair	Good	Good	Excellent	Excellent
VITREOUS SILICA FIBER	1100	Good	Good	Excellent	Excellent	Excellent
MINERAL INSULATION*	1100	Excellent	Excellent	Good	Excellent	Excellent

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

Packaging & Delivery

Packaging Details	Roll with plastic film wrapped and carton package
Delivery Detail	Shipped in 7 days after payment

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard 0

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.

2. When will you arrange the production?
In 12 hours since we get your payment.

3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request

4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.

5. What is your warranty ?
For most of our products, the warranty will be 12 months.

6. When will I get a solution for defective products?
Within 48 hours (on working days )

7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.

105 Degrees PVC Insulated Thermocouple Wire Type J K T E With ANSI Standard

Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
